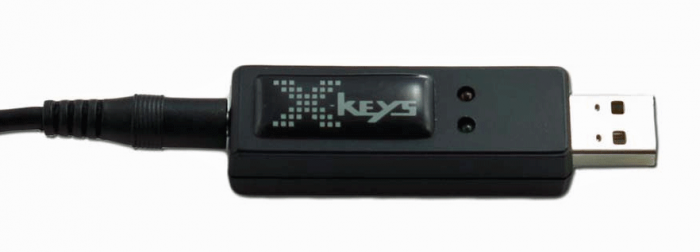

top view X-keys USB 3 Switch Interface

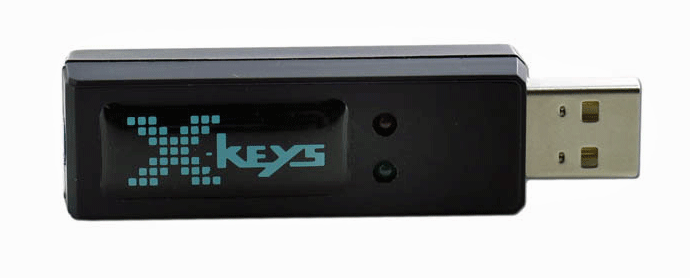

front view X-keys USB 3 Switch Interface

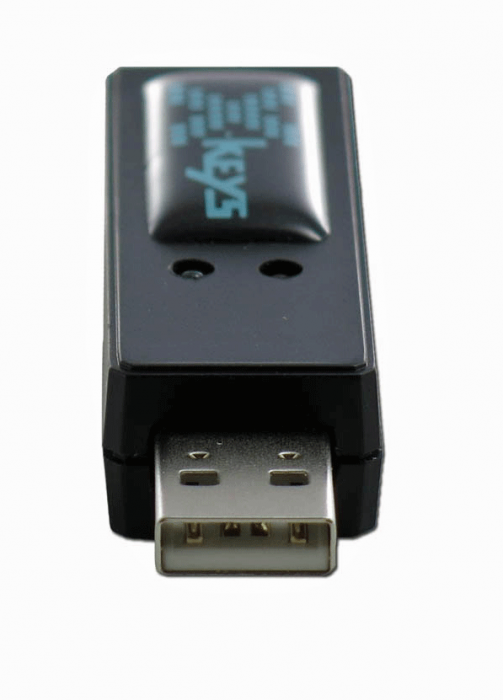

USB connection view X-keys USB 3 Switch Interface

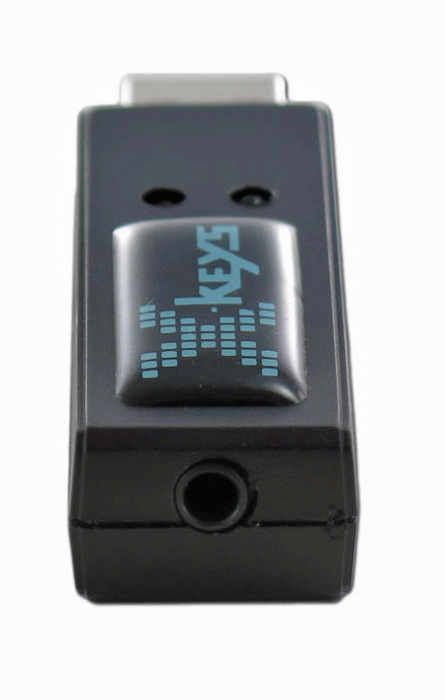

Switch Connection view X-keys USB 3 Switch Interface

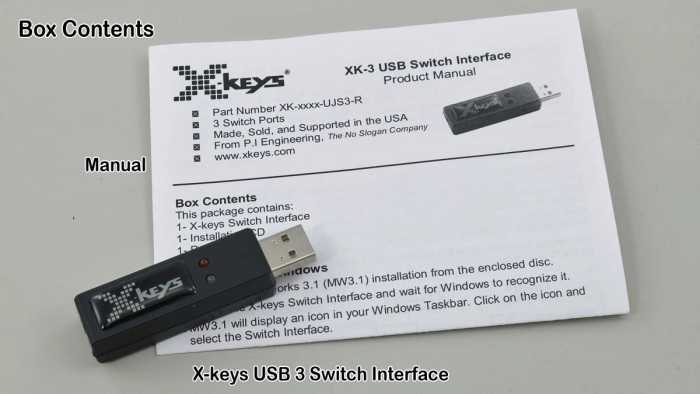

Box Content X-keys USB 3 Switch Interface

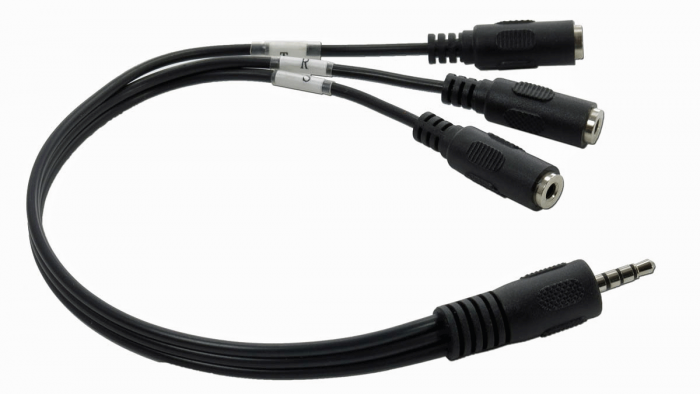

adapter cable for X-keys USB 3 Switch Interface
Roll over image to zoom in Click on image to zoom
X-keys USB 3 Switch InterfaceX-keys USB 3 Switch Interface with switch attachedtop view X-keys USB 3 Switch Interfacefront view X-keys USB 3 Switch InterfaceUSB connection view X-keys USB 3 Switch InterfaceSwitch Connection view X-keys USB 3 Switch InterfaceBox Content X-keys USB 3 Switch Interfaceadapter cable for X-keys USB 3 Switch Interface

X-keys USB 3 Switch Interface

X-KeysSKU: XK-1283-UJS3-R
Price:
$125.00

Description

A compact, low profile footprint that accepts up to three wired switches or pedals. Easily convert any switch closure to a keyboard, multimedia, or mouse command. Compatible with Windows, Mac, Linux, and Android.

Features

  • Up to three switches via 3.5 mm TRRS port with optional adapter
  • Connects to any USB port just like a USB keyboard
  • Compact - smaller than a pack of chewing gum
  • Accepts 3.5 mm mono, stereo, or TRRS plugs
  • Any contact closure can be converted to a USB HID command
  • Choose from our selection of hand or foot operated switches or use your own
  • Any switch can trigger an action on your computer. Any keyboard shortcut your software uses can have a designated switch (start, stop, next, save...). Switches are easily set up to launch applications, open files, or type short lines of text like names, addresses, and account numbers.





  • Operating System: Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
  • Free Programming Software: Windows: MacroWorks 3.1; Android: X-keys Android; Mac OS X: ControllerMate
  • Free Software Development Kits: Windows (C++, C#, VB.NET); Linux (C++); Android (Java); Raw HID (any language/OS)
  • USB Codes Supported: HID keyboard, HID mouse, HID game controller, HID multimedia
  • Port Type:3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug
  • Number of Ports:1 port (may be split to accept up to three switches)
  • Optional Accessories: Wired switches, Y cords, or USB Extender
  • Connector: USB 2.0 standard “A” plug
  • Wiring Distance: Up to 1,000 feet (300m) from switch to port
  • Dimensions: 2.8” x 0.75” x 0.5” (71mm x 19mm x 13mm)
  • Weight: 0.8 oz. (23 g)
  • USB type: USB 1.1 (compatible through 3.0)
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption: 21 mA @ 5 VDC
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1000 keystrokes or commands
  • Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
  • USB 3 Switch Interface Info Sheet
  • USB 3 Switch Interface Product Manual

MacroWorks 3.1 for Windows (free download)-

Launch programs, insert Unicode, open files and directories, select tools and more
Can write macros to X-keys memory for Hardware Mode macro programming
Control backlighting globally or for individual keys
Create custom scripting with Visual Basic (Software Mode only)
Compatible with Windows 10, 8, 7, and Vista (32 or 64 bit) and Windows XP (32 bit only)
Free technical support via email or phone

ControllerMate for Mac OS X (free download)

Launch programs, insert Unicode, open files and directories, select tools and more
Control backlighting globally or for individual keys
Create macros or execute Applescript with drag and drop building blocks
Compatible with Mac OS X 10.10, 10.9, 10.8, 10.7 and 10.6 (64 bit)
Free support via OrderedBytes Forum

P.I. Engineering SDK(free download)

Microsoft Visual Studio code examples in C# 2008 Express, C++ 2005, and VB.NET 2008 Express
Read all key and control states
Control all backlighting and indicator LEDs
Free technical support via email or phone
Linux SDK provides a cross platform solution for Linux, Windows, and Mac also available

Android Software

For X-keys Android devices
Read all key and control states
Java based
Sets backlighting levels and states
Free technical support via email or phone
