X-Keys Commercial Foot Switch
X-Keys Commercial Foot Switch
X-Keys Commercial Foot Switch
X-Keys Commercial Foot Switch
Roll over image to zoom in Click on image to zoom
X-Keys Commercial Foot SwitchX-Keys Commercial Foot SwitchX-Keys Commercial Foot SwitchX-Keys Commercial Foot Switch

X-Keys Commercial Foot Switch

X-KeysSKU: XK-A-1241-SKC1BL-R
Price:
$96.96

Description

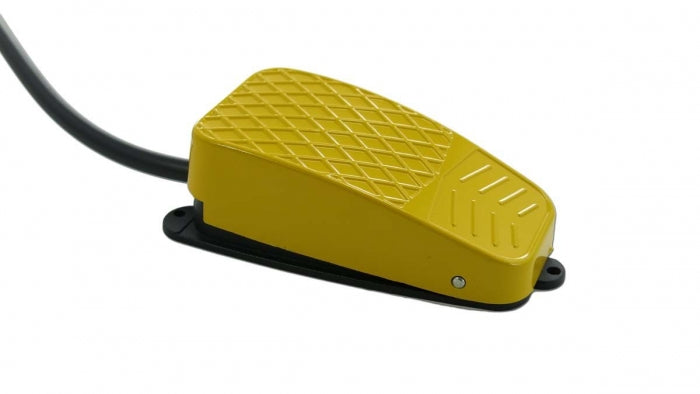

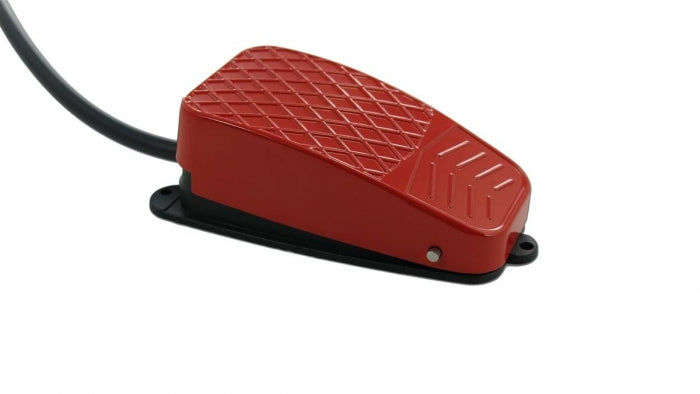

Commercial grade foot switches to work with the X-keys USB 12 Switch Interface and USB 3 Switch Interface. Hinged in front design allows a foot to rest on the pedal without activating it. Slight additional pressure activates the switch with an audible click. Perfect for use with the X-keys USB 12 Switch Interface and USB 3 Switch Interface

Wired to 3.5mm (1/8”) mono plug on 114” (2.9m) ruggedized cord.
Powder coated cast aluminum body and pedal with built-in mounting flange.
Colors: Black, Red, Green, and Yellow

  • Switch Type: Microswitch with audible click, guaranteed for over 1 million operations
  • Finish: Powder coated cast aluminum
  • Actuation Force: Approx. 3.5# (1.6kg) depending on distance from hinge
  • Connector: Wired standard 3.5mm (1/8") mono plug
  • Cord Length: 114” (2.9 m)
  • Voltage: Less than 30 volts
  • Current: Less than 1 Amp
  • Dimensions: Approx. 6.3” x 2.9” x 2.1” (16cm x 7.4cm x 5.3cm)
  • Weight: 1.5 lbs. (0.7 kg)
