ViewPlus Elite Embosser

ViewPlusSKU: VPTT1022-00

  • Special Oder, sales is final.
Contact Us for Pricing

Description

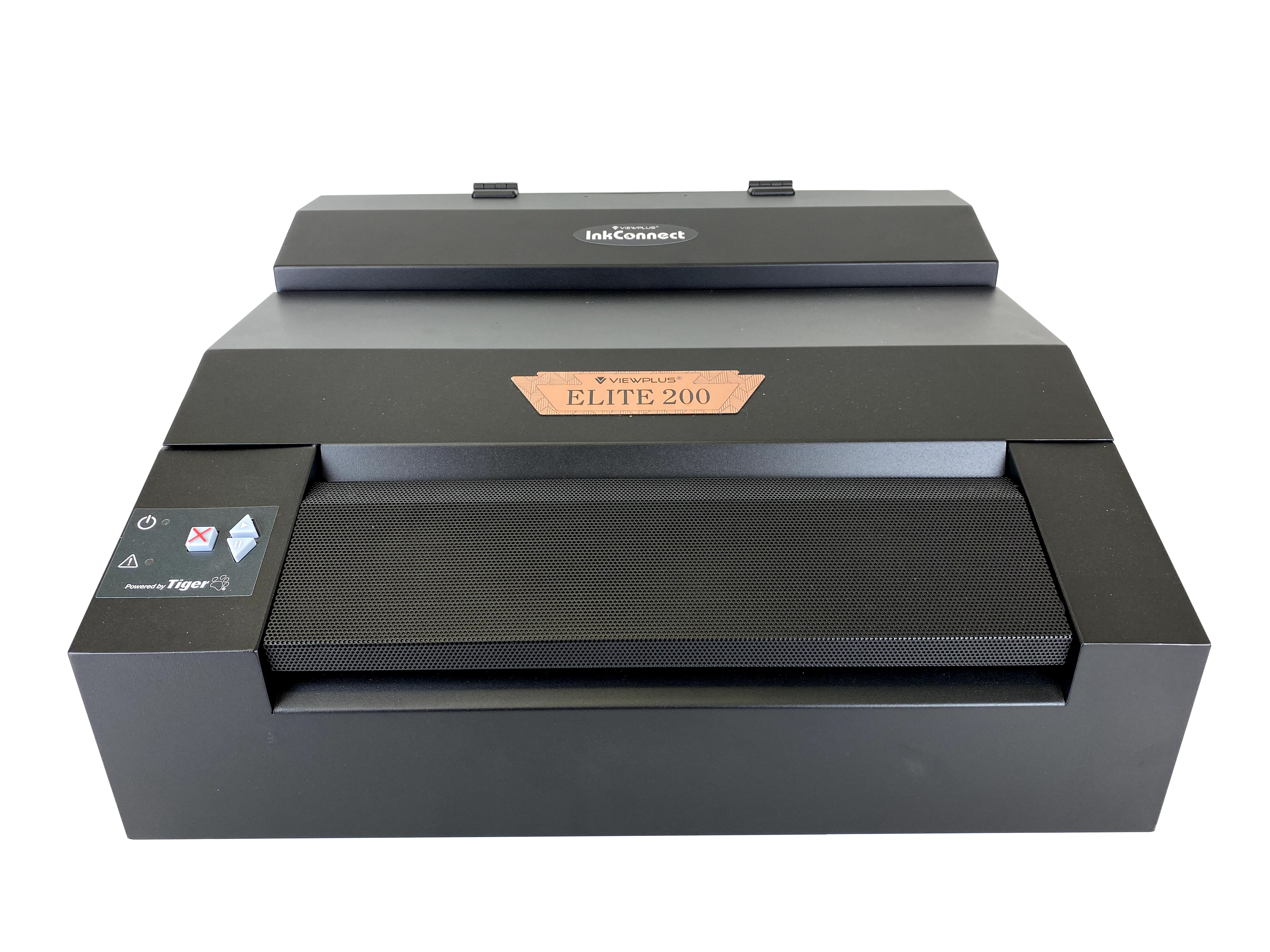

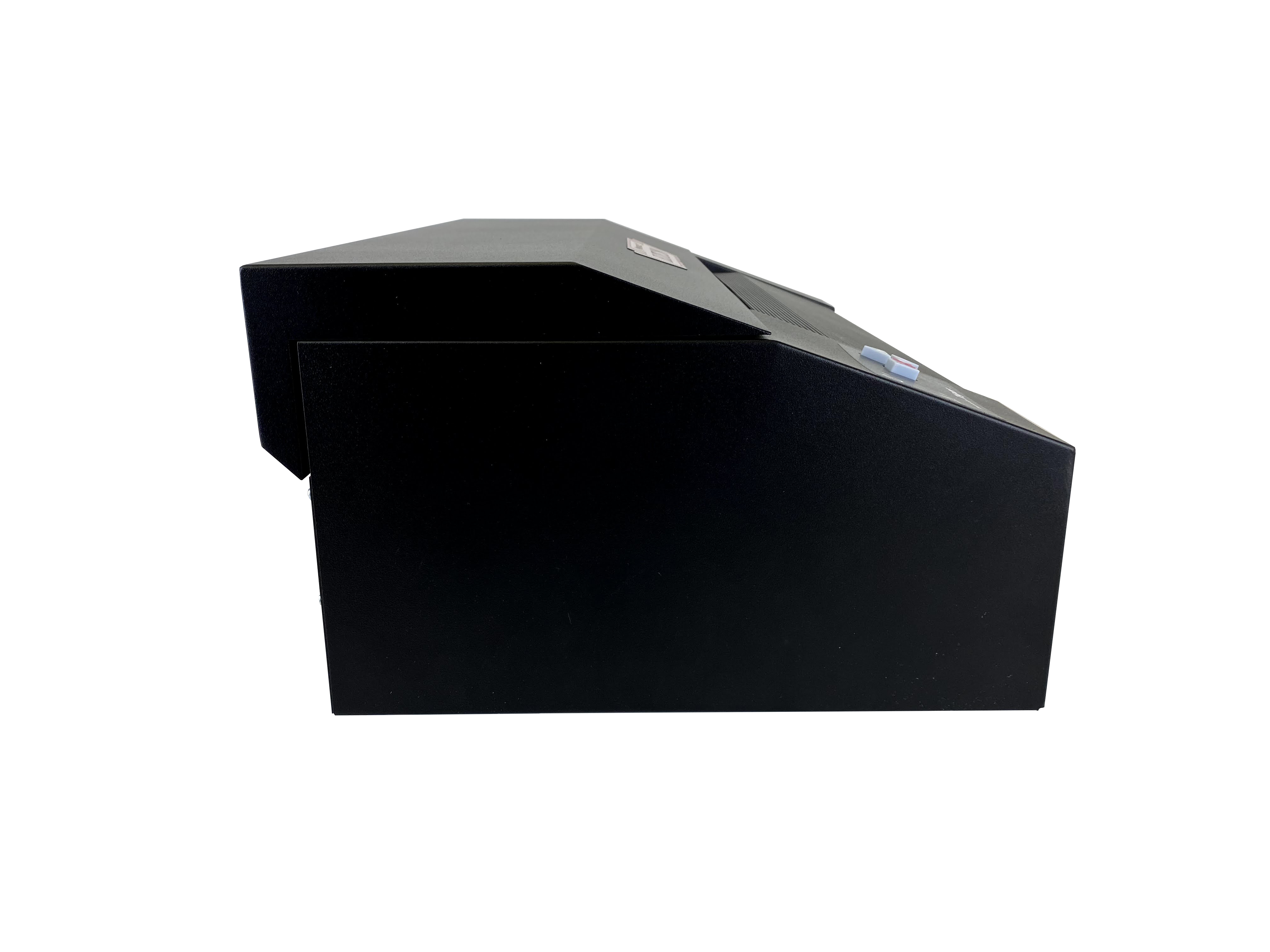

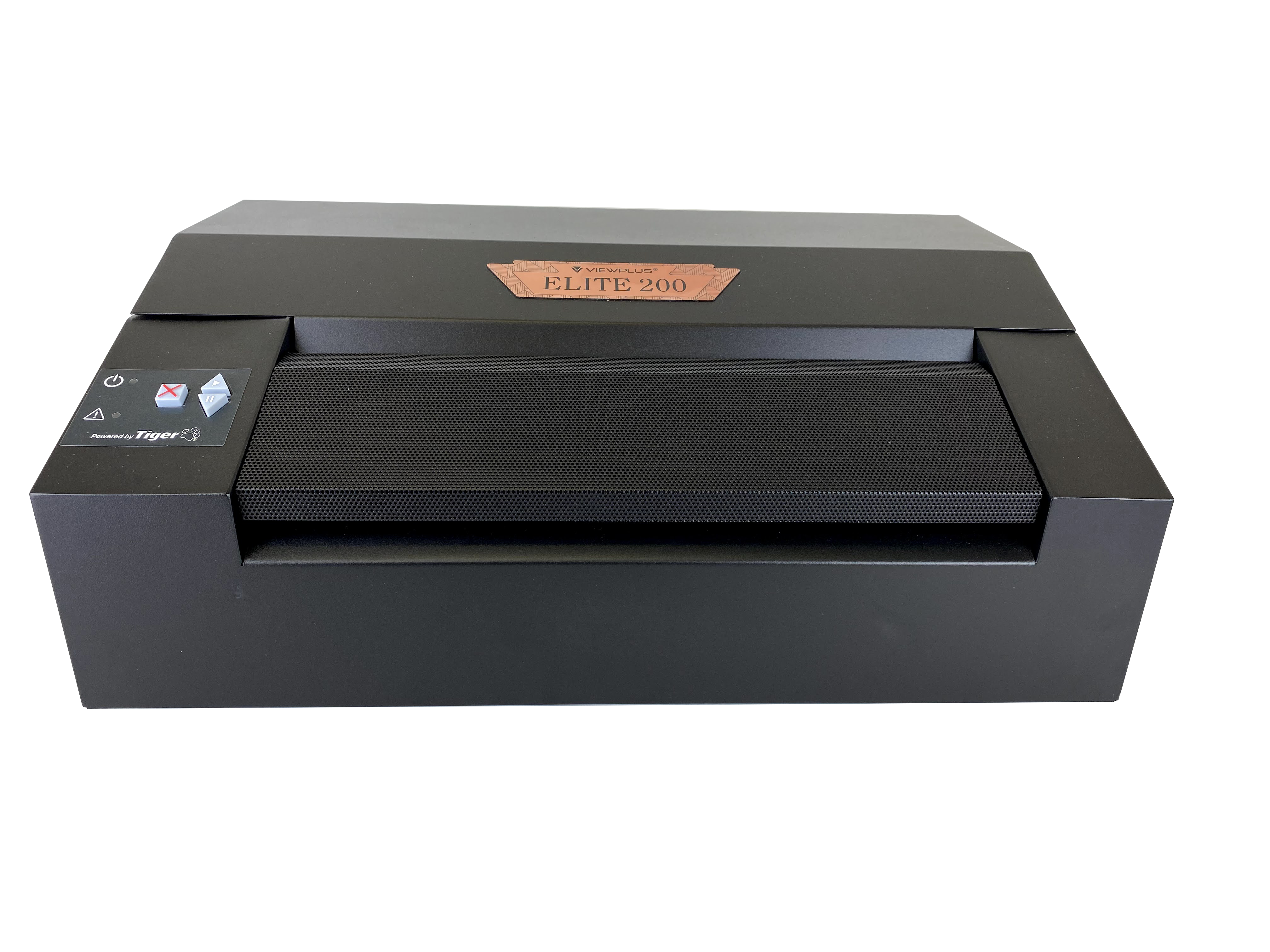

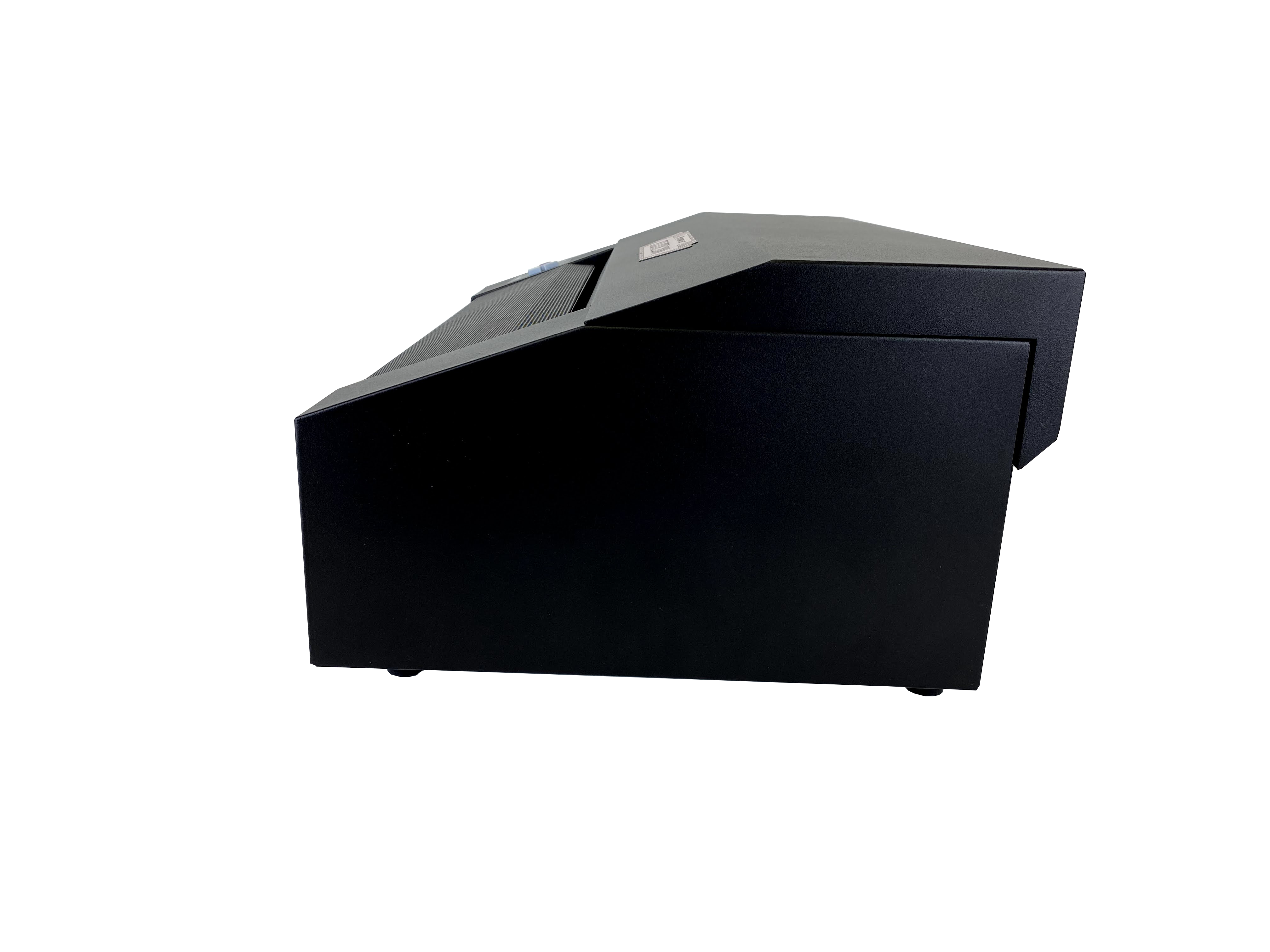

ViewPlus Elite Braille Embosser/Printer.

The VP Elite was built to withstand the toughest embossing requirements while embossing at 200 characters per second. With the highest quality components available you can expect your braille requirements to get done reliably and quickly.

  • 200 characters per second
  • High-quality double-sided braille
  • Industry-leading tactile graphics
  • Tractor-fed paper
  • Translation and graphics editing software
  • Worry-free maintenance
  • Compatible with Windows/Mac/Linux
  • Available with Bluetooth and Wi-Fi (with Tiger Box)
  • Standard manufacturing warranty 1 – 2 years depending on region (up to 5 years available)

EMBOSSING

  • Print speed: Up to 200 CPS
  • Printing Mode: Double-sided
  • Tactile Resolution: 20 DPI
  • Tactile Graphic Dot Heights: 7 steps for color representation
  • Braille Dot Heights: Adjustable in 3 heights

PAPER

  • Paper Width: 4 – 12 inches (101 – 305 mm)
  • Paper: Continuous tractor feed
  • Paper Weight: 30 – 140 lb (50 – 230 gsm)

CONNECTION/COMPATIBILITY

  • Connection: USB (1.1, 2.0), Ethernet
  • Compatibility: Windows 7, 8/8.1, 10

DIMENSIONS/WEIGHT

  • Height: 8.8 in (224 mm)
  • Width: 22.3 in (569 mm)
  • Depth: 13.8 in (351 mm)
  • Weight: 60 lbs. (27,2 kg)

TEMPERATURE/HUMIDITY

  • Recommended Temperature: 55 – 95 °F (13 – 35 °C)
  • Storage Temperature: -4 – 158 °F (-20 – 70 °C)
  • Humidity: 20 – 80% RH (non-condensing)

POWER SUPPLY

  • 85 – 264 VAC
  • 50/60 Hz (+/- 3%)Standby: 22 W
  • Heavy Embossing: 235 W
  • VP Elite Extended Warranty 1 Year
  • VP Elite Extended Warranty 2 Years
  • VP Elite Extended Warranty 3 Years
  • VP Elite Extended Warranty 4 Years
