Description
The TAC is a special touch switch for an alarm or assistance call in hospitals and rehabilitation centres. It is meant for patients who are unable to operate a standard call button. The TAC consists of an operating sensor and a base unit that are connected with a strong but flexible cable. A light touch or even approaching the sensor is enough to activate the alarm.

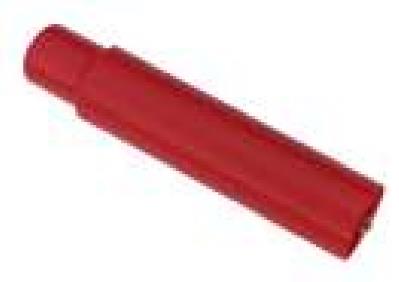

The sensor is housed in a closed hygienic housing made of high-quality plastic (POM). This is resistant to disinfection with 70% alcohol.

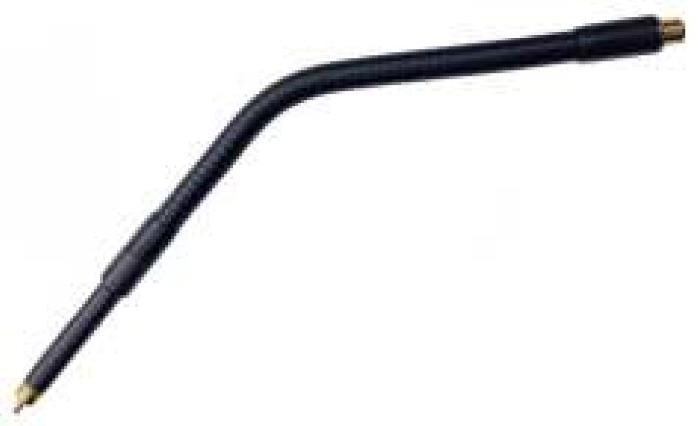

The sensor can easily be fixed to the Shannon Table mount with 10 mm adapter, using either the straight adapter 7 cc or the flexible gooseneck adapter 27 cm.

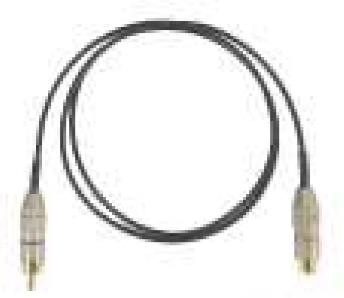

The connection cable between the sensor and the base unit has two robust RCA connectors. The cable can have any length up to 10 meters. The switch output of the base unit can be connected to the calling system to replace the standard call button.
The TAC comes with a Windows computer program that can be used to adjust the sensor
sensitivity, the reaction time of the alarm and the type of switch (normally open or normally
closed). It is also possible to configure the TAC is such way that the alarm is only activated
after a double click, to avoid unwanted activation.
All settings are stored in the base unit or the sensor even when the system is turned off.
