Tactile Floor Guides Pack

Tactile Floor Guides for Visually Impaired - Indoor Use Only (3-Pack).

• Tactile guiding indicators for the visually impaired.

• Ideal for signaling potentially dangerous areas (staircase, pole, obstacle) to make buildings accessible to people with visual impairments.

• Patented product indoor use.

• Hazard warning surface for people with visual impairments.

• Aesthetic solution with respect for visual contrast.

Guiding strips for indoor use

• Provide a tactile orientation system for blind and visually impaired people

• Easy set up of a surface mounted tactile directional lines

• Excellent fit on flexible pavement, tile, wood, glass, laminate flooring, natural stone, smooth concrete.
• Not suitable with waxed floorings or carpets

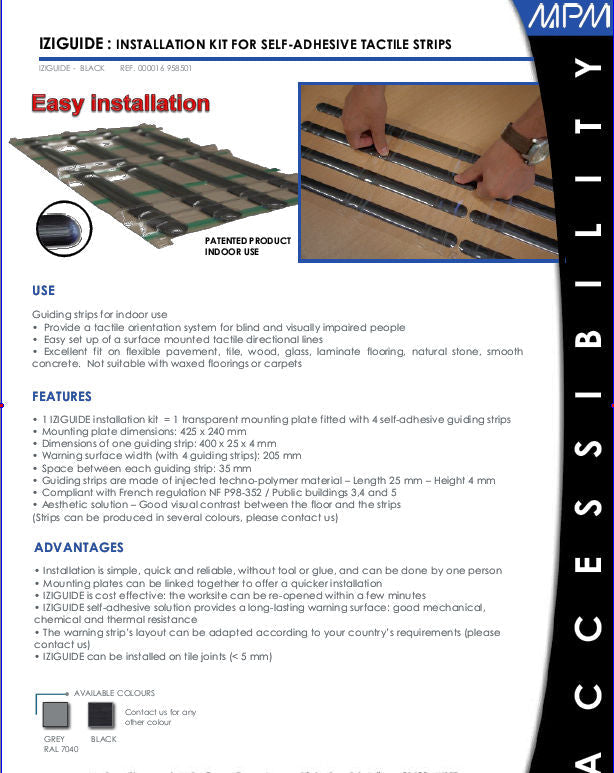

1 IZI-GUIDE installation kit: 1 transparent mounting plate fitted with 4 self-adhesive guiding strips

• Mounting plate dimensions: 425 x 240 mm

• Dimensions of one guiding strip: 400 x 25 x 4 mm

• Warning surface width (with 4 guiding strips): 205 mm

• Space between each guiding strip: 35 mm

• Square meter/foot coverage: For 20 templates, 4 guideline box = 8 ml
• Guiding strips are made of injected techno-polymer material:
  • Length: 25 mm
  • Height: 4 mm

• Aesthetic solution: Good visual contrast between the floor and the strips
  (Strips can be produced in several colours, please contact us)

• *Pack of three (3) boxes, Minimum Order*

Installation is simple, quick and reliable, without tool or glue, and can be done by one person

• Mounting plates can be linked together to offer a quicker installation

• IZI-GUIDE is cost effective: the worksite can be re-opened within a few minutes

• IZI-GUIDE self-adhesive solution provides a long-lasting warning surface: good mechanical, chemical and thermal resistance

• The warning strip’s layout can be adapted according to your country’s requirements (please contact us)

• IZI-GUIDE can be installed on tile joints (< 5 mm)
