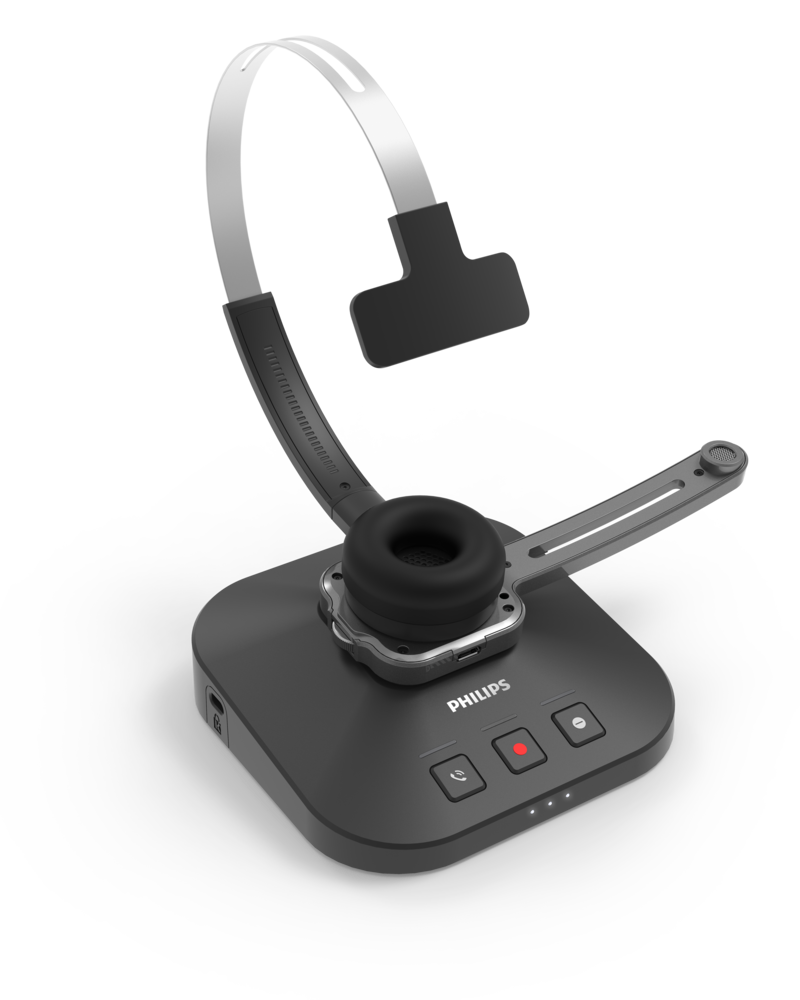

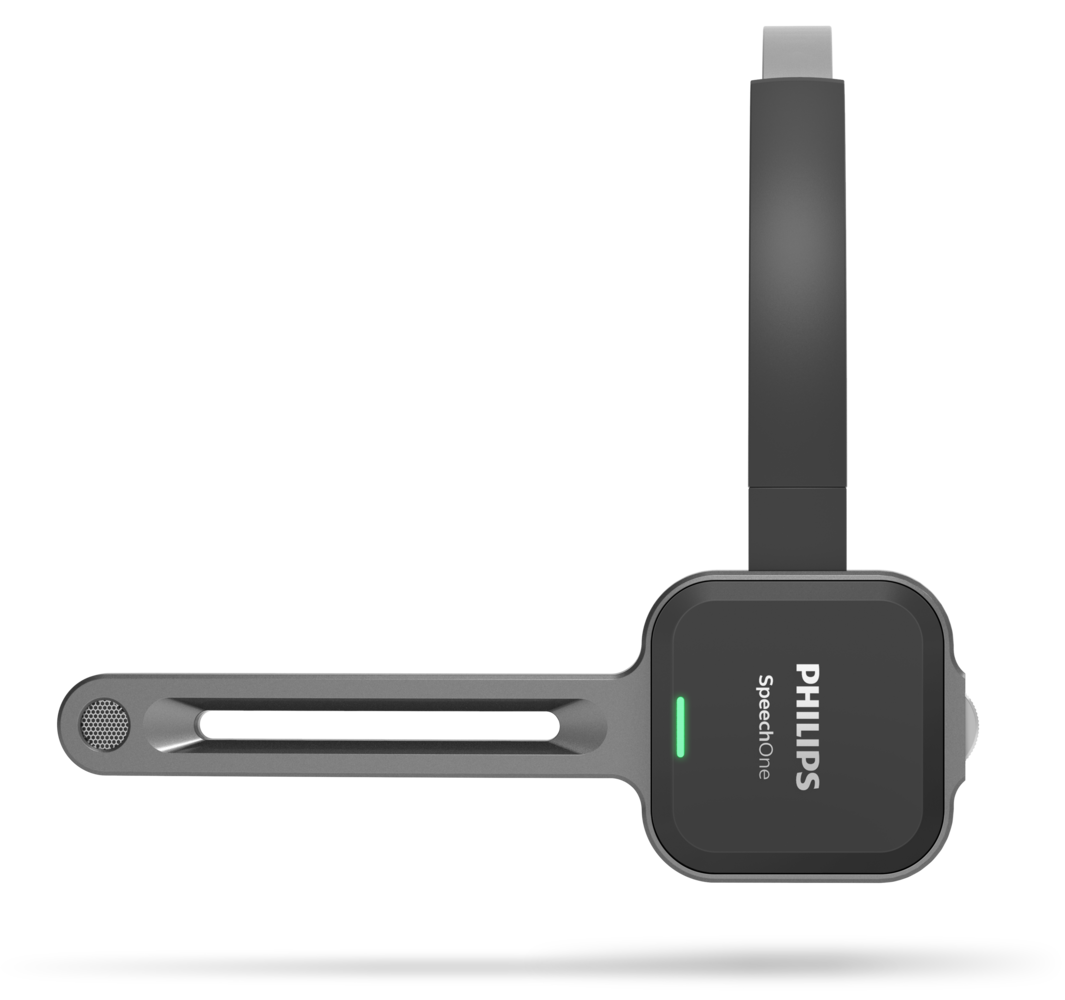

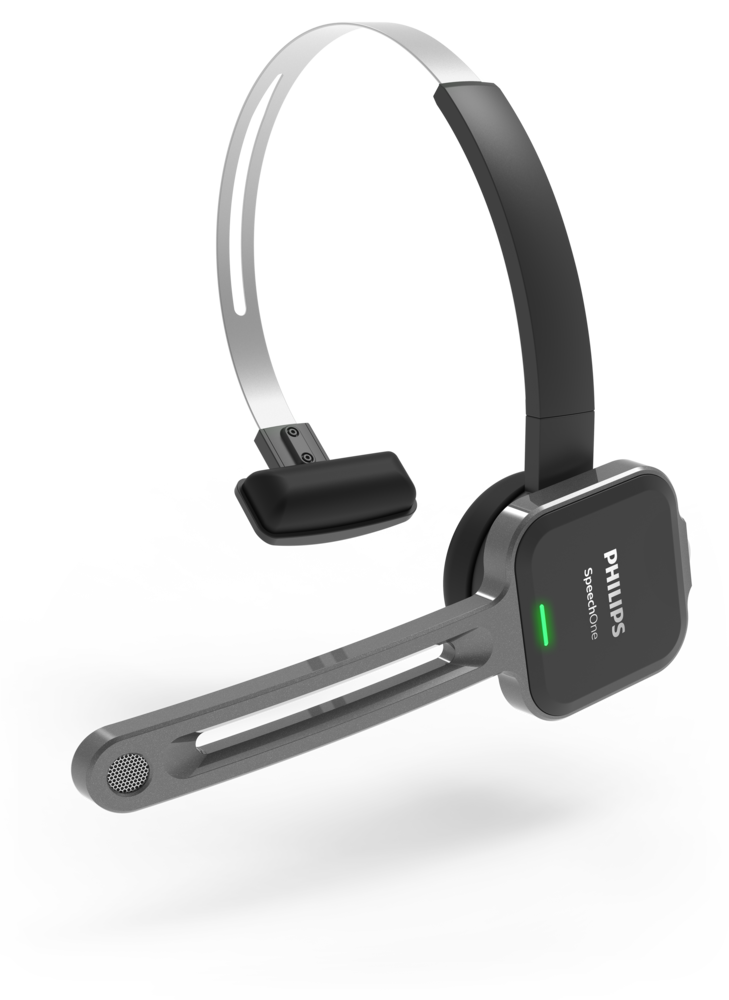

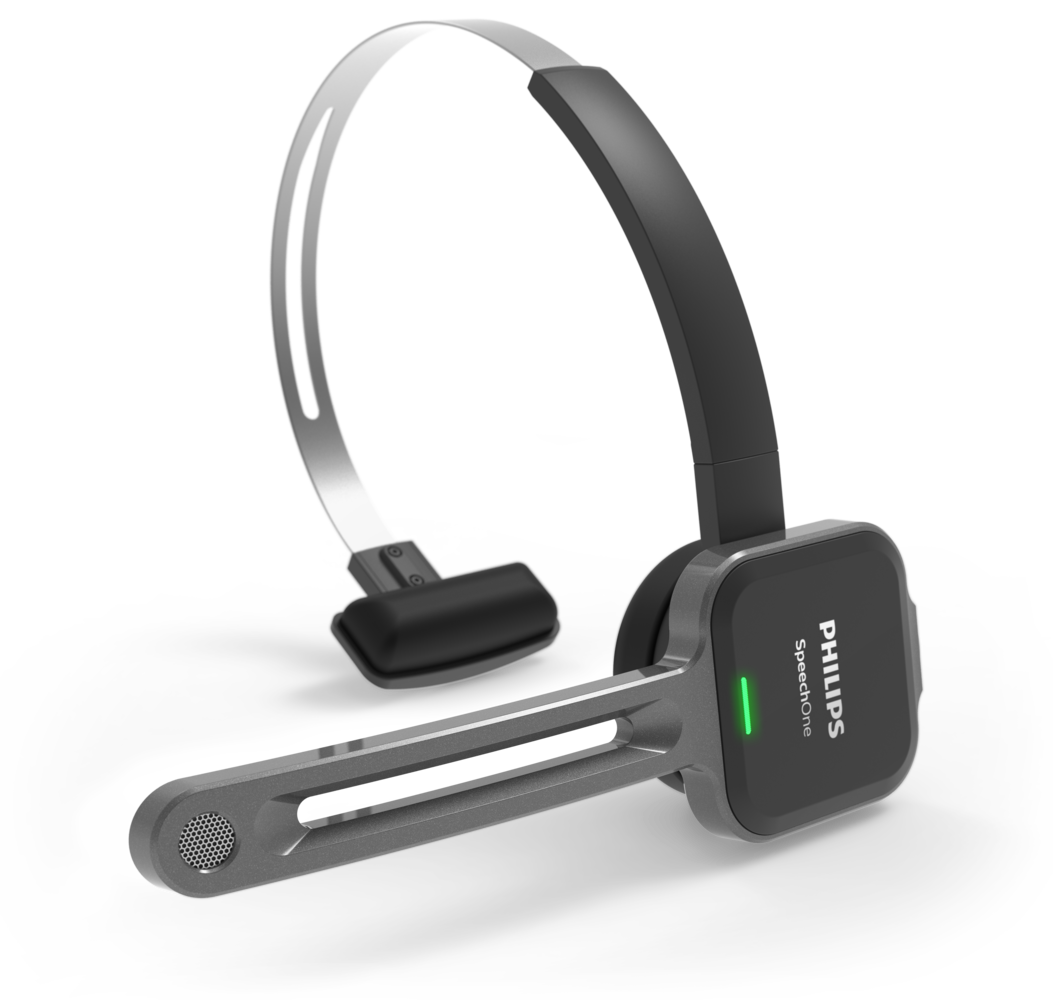

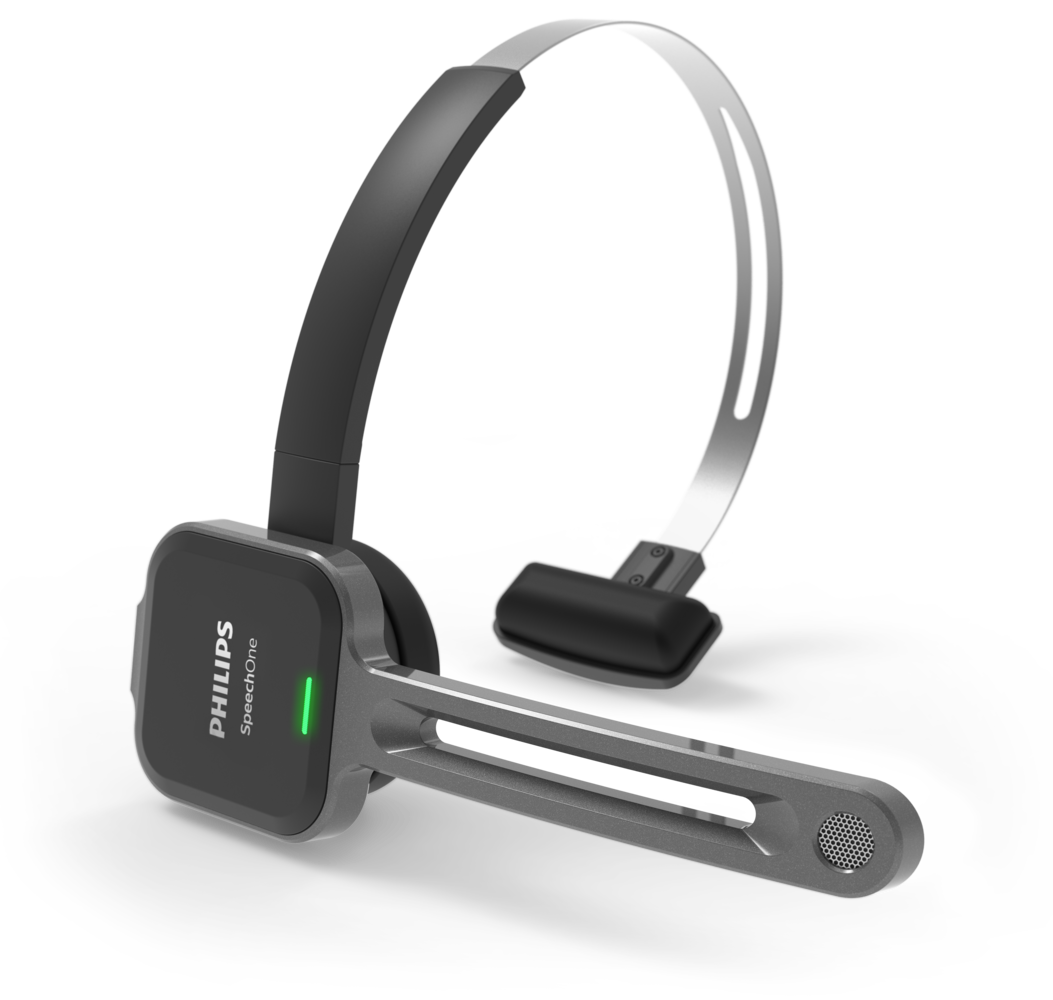

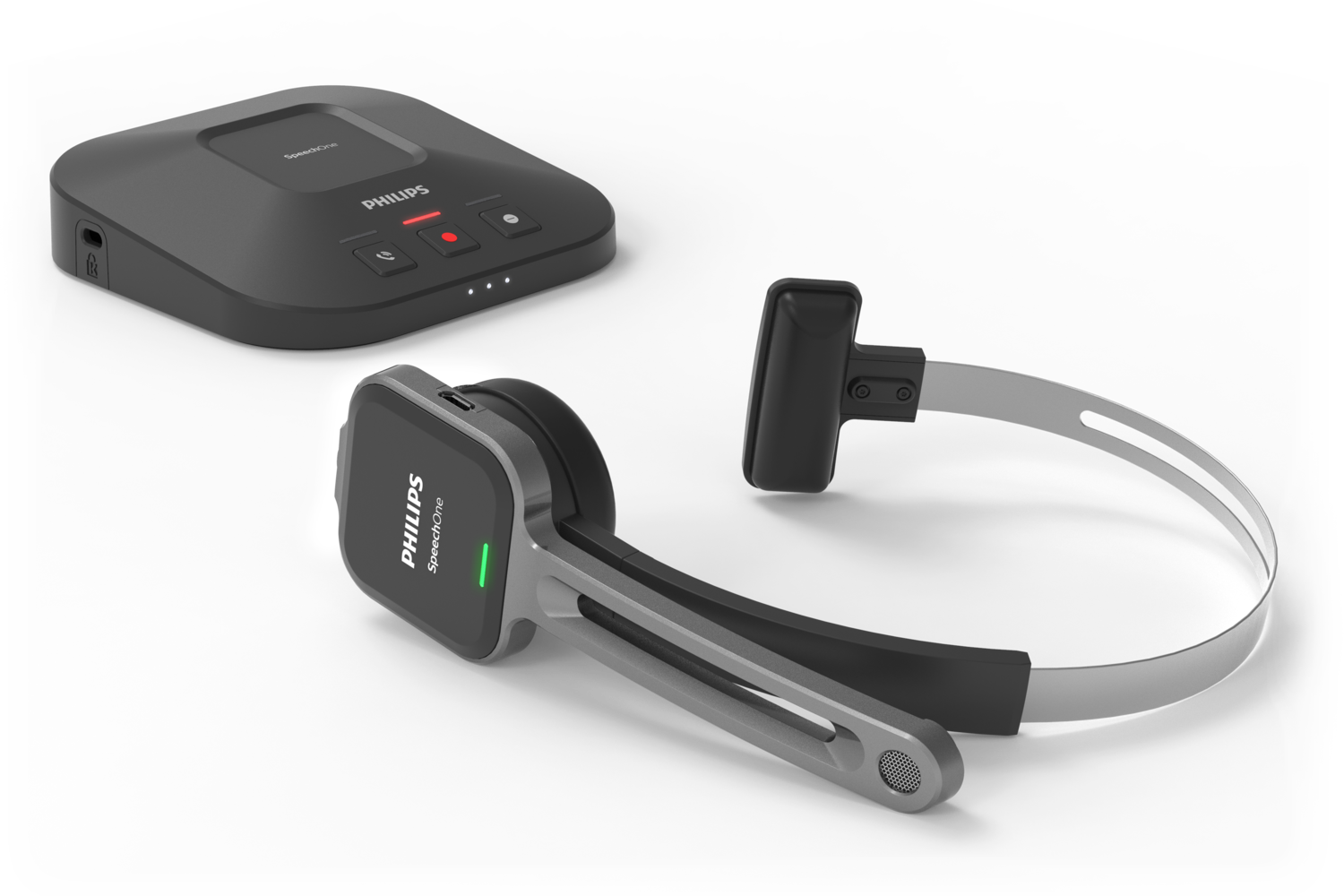

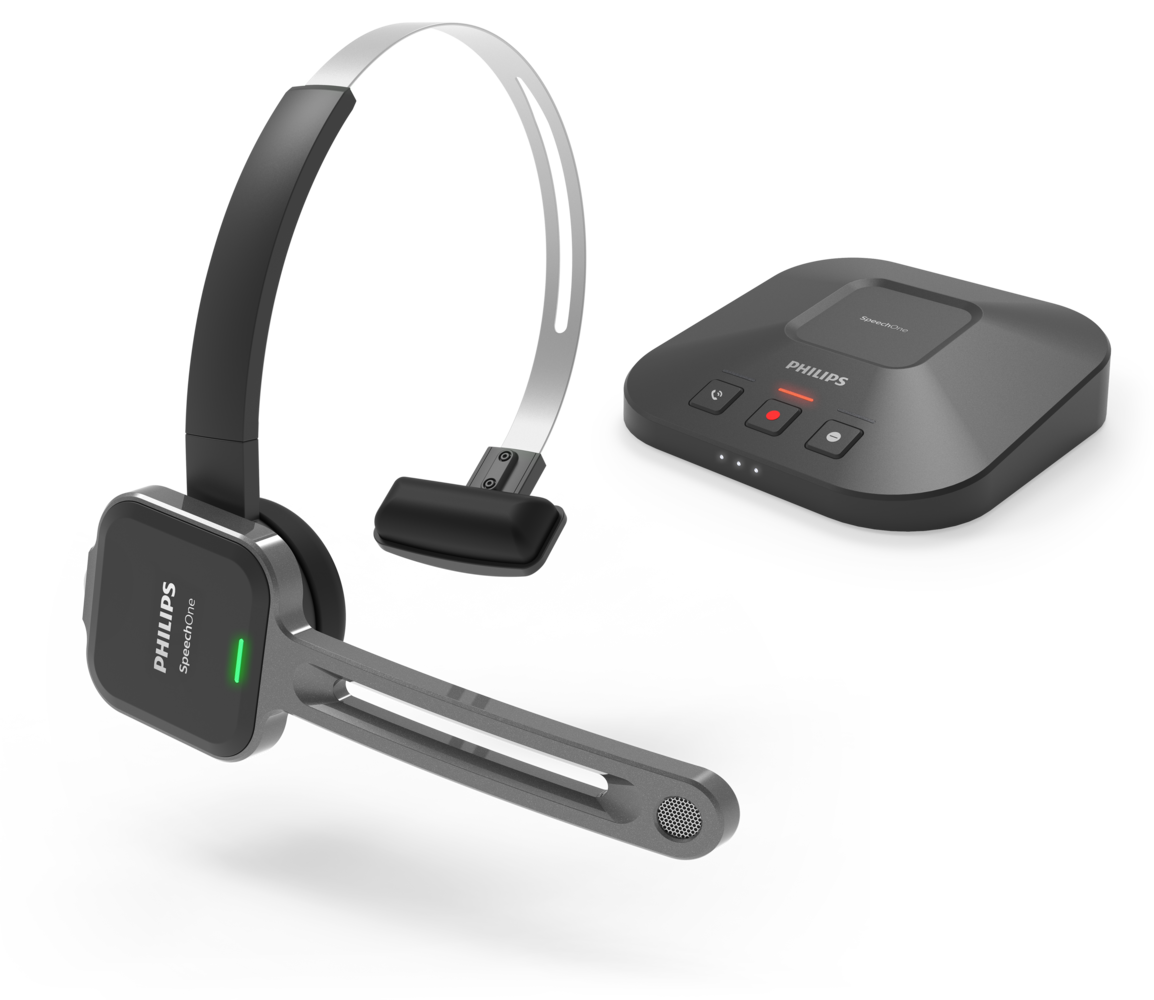

SpeechOne Wireless Dictation Headset

Audio recording

• Microphone type: electret condenser microphone
• Microphone capsule: 10 mm
• Characteristic: uni-directional
• Frequency response: 150 – 15 000 Hz
• Sensitivity: -37 dBV
• Signal-to-noise ratio: > 70 dBA

Sound

• Speaker type: built-in round, dynamic speaker
• Speaker diameter: 23 mm
• Acoustic frequency response: 300 – 7500 Hz
• Speaker output power: > 200 mW

Wireless connectivity

• Technology: 2.4 GHz ISM Band
• Modulation: 8-FSK
• Operating range: up to 5 m / 16 ft. (in clear view)

Power

• Battery type: Li-polymer built-in battery
• Battery capacity: 360 mAh
• Battery lifetime: up to 12 hours of recording
• Standby time: > 100 hours
• Rechargeable: wireless via docking station or micro USB cable
• Charging time (wireless): 80% after 60 min, approx. 2 hours for full charge

Convenience

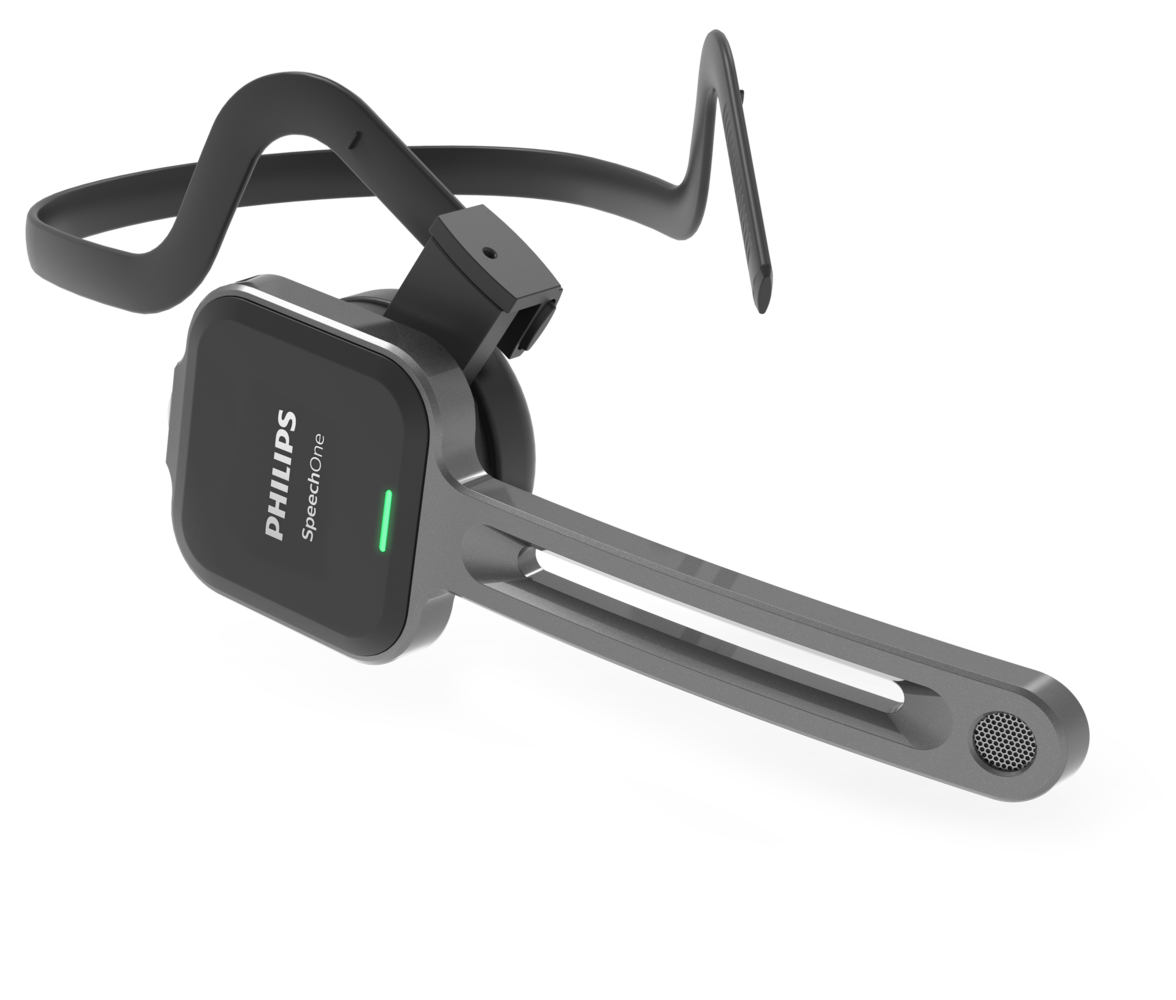

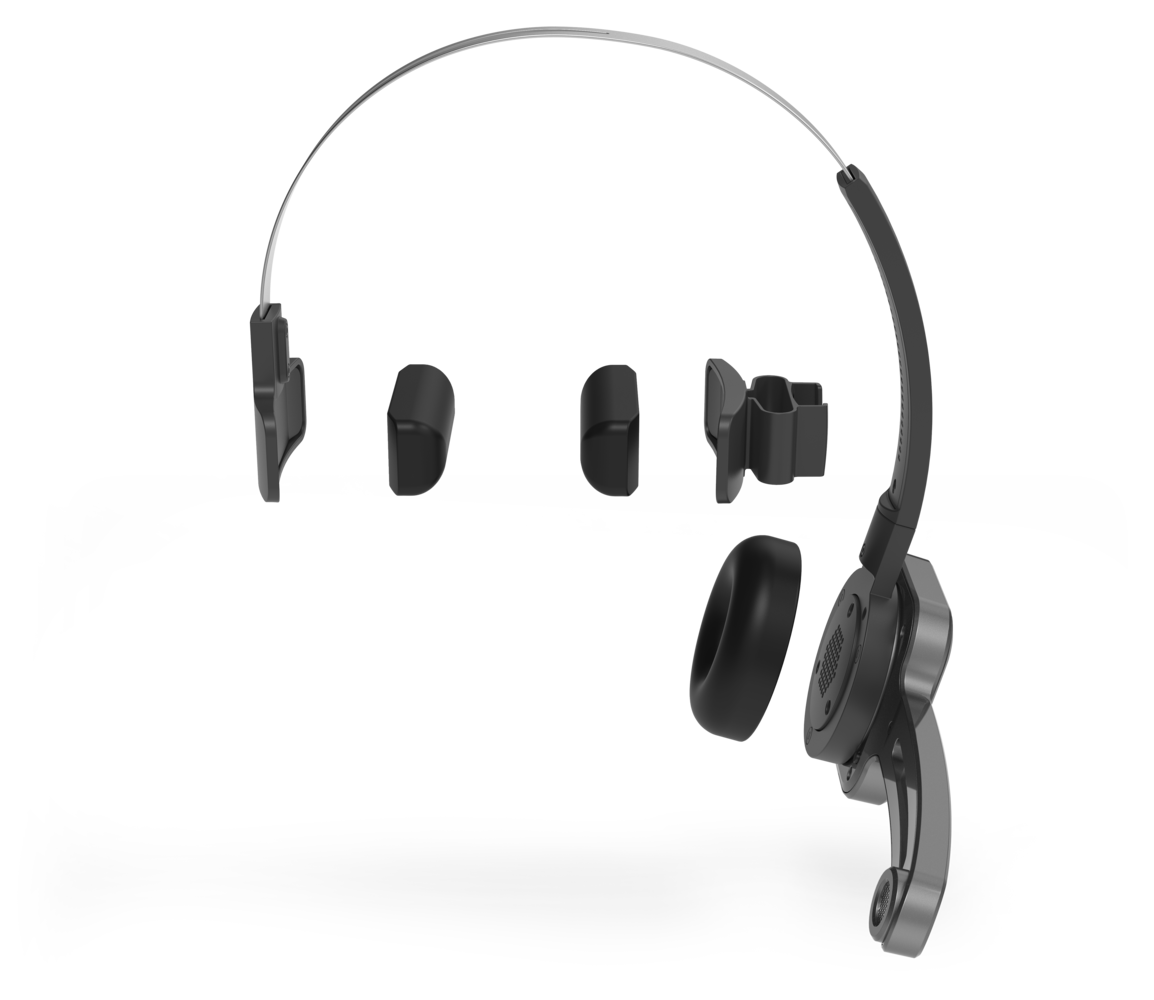

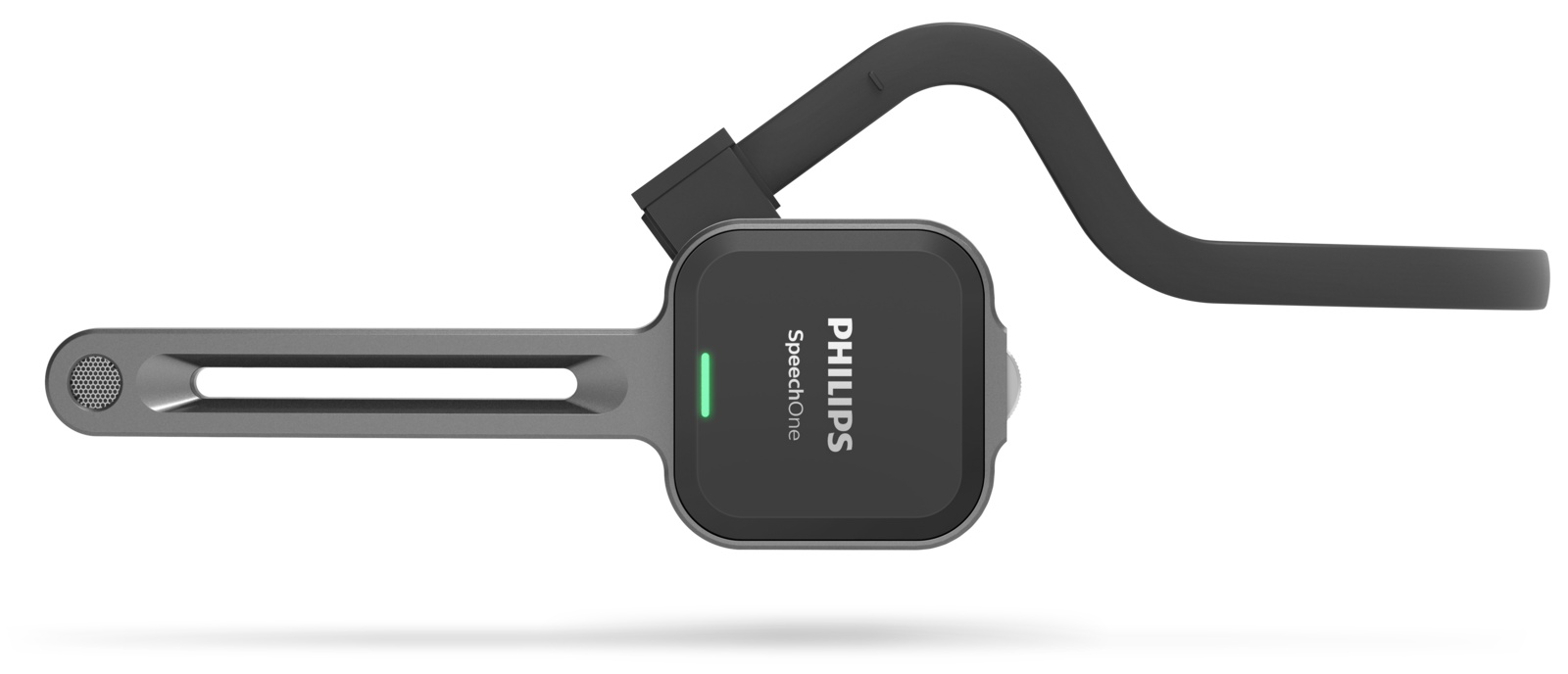

• Wearing styles: classic, ear-free, neckband360 degree adjustable boom arm
• Headset wearable on left or right ear

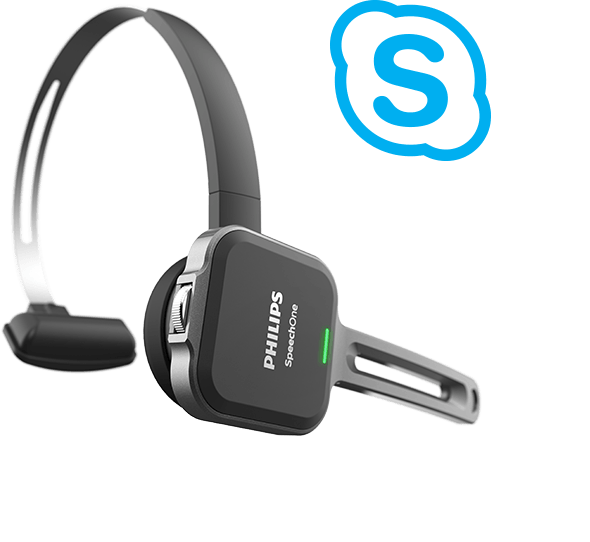

• Voip calls with Skype for Business
• Voice prompts in 10 languages for easy guidance (pairing, battery status, radius of movement)

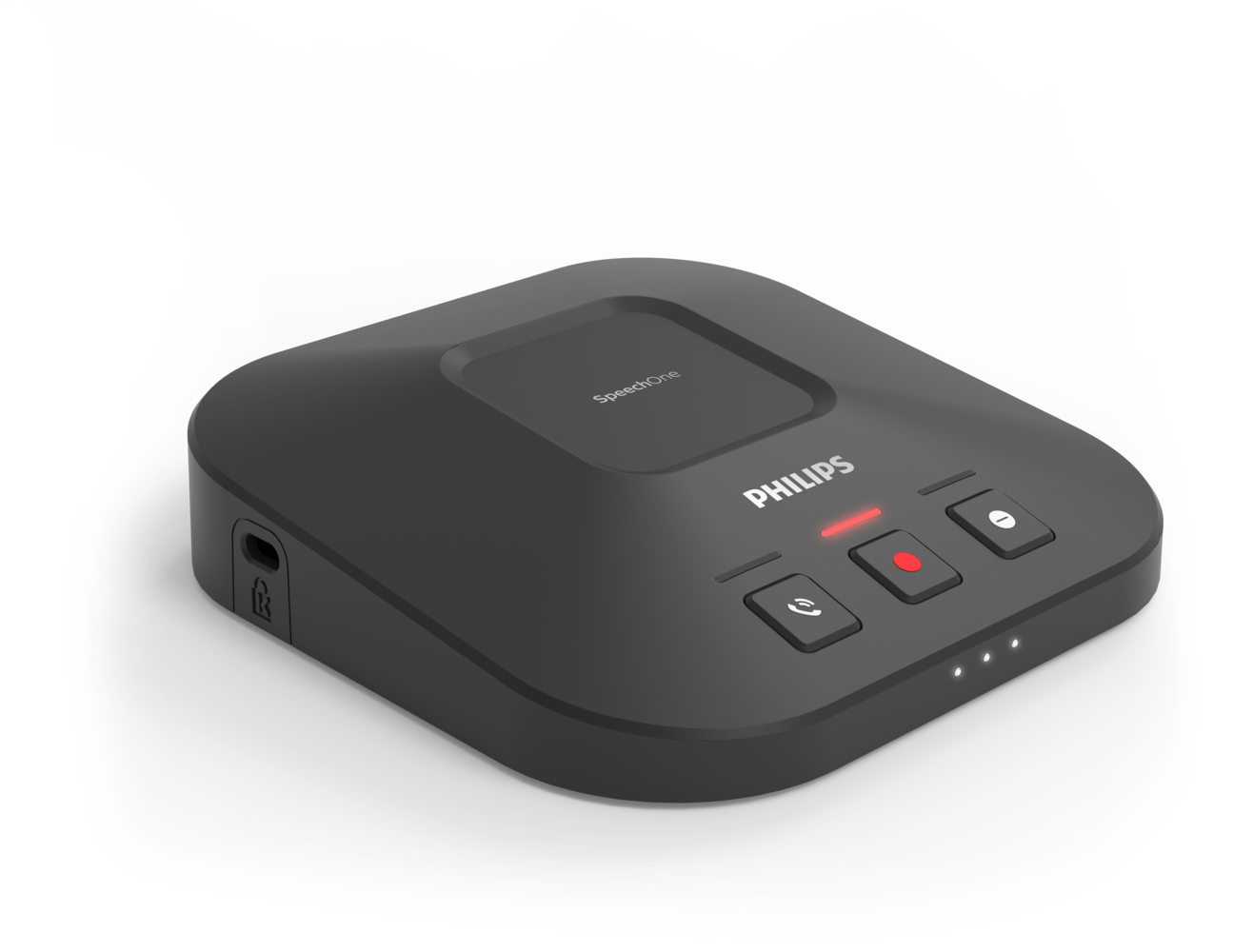

• Hands-free dictation with Philips Foot Controls ACC2310, ACC2320, ACC2330Docking station with Kensington lock theft protection
• Headset controls: scroll wheel for recording and volume control

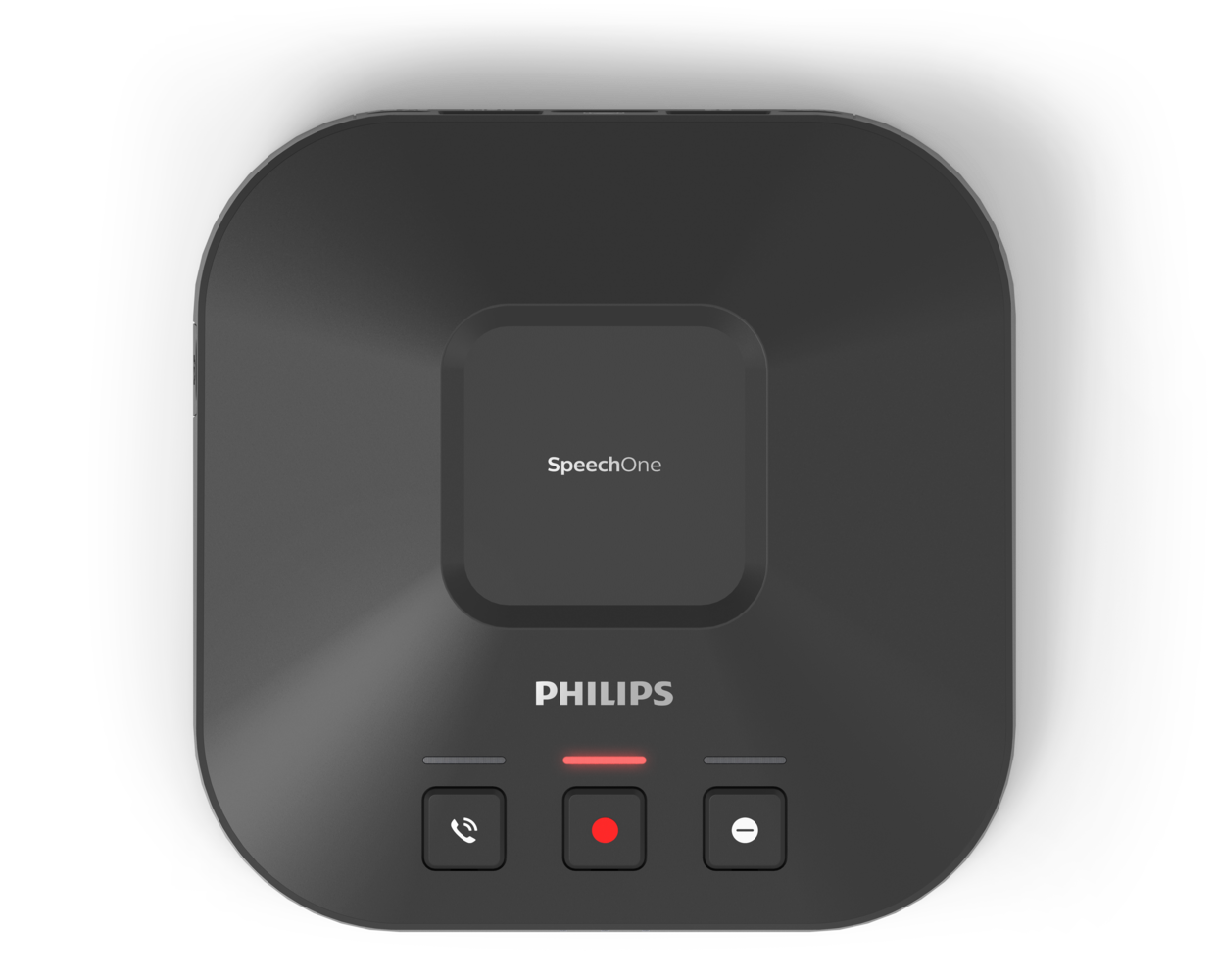

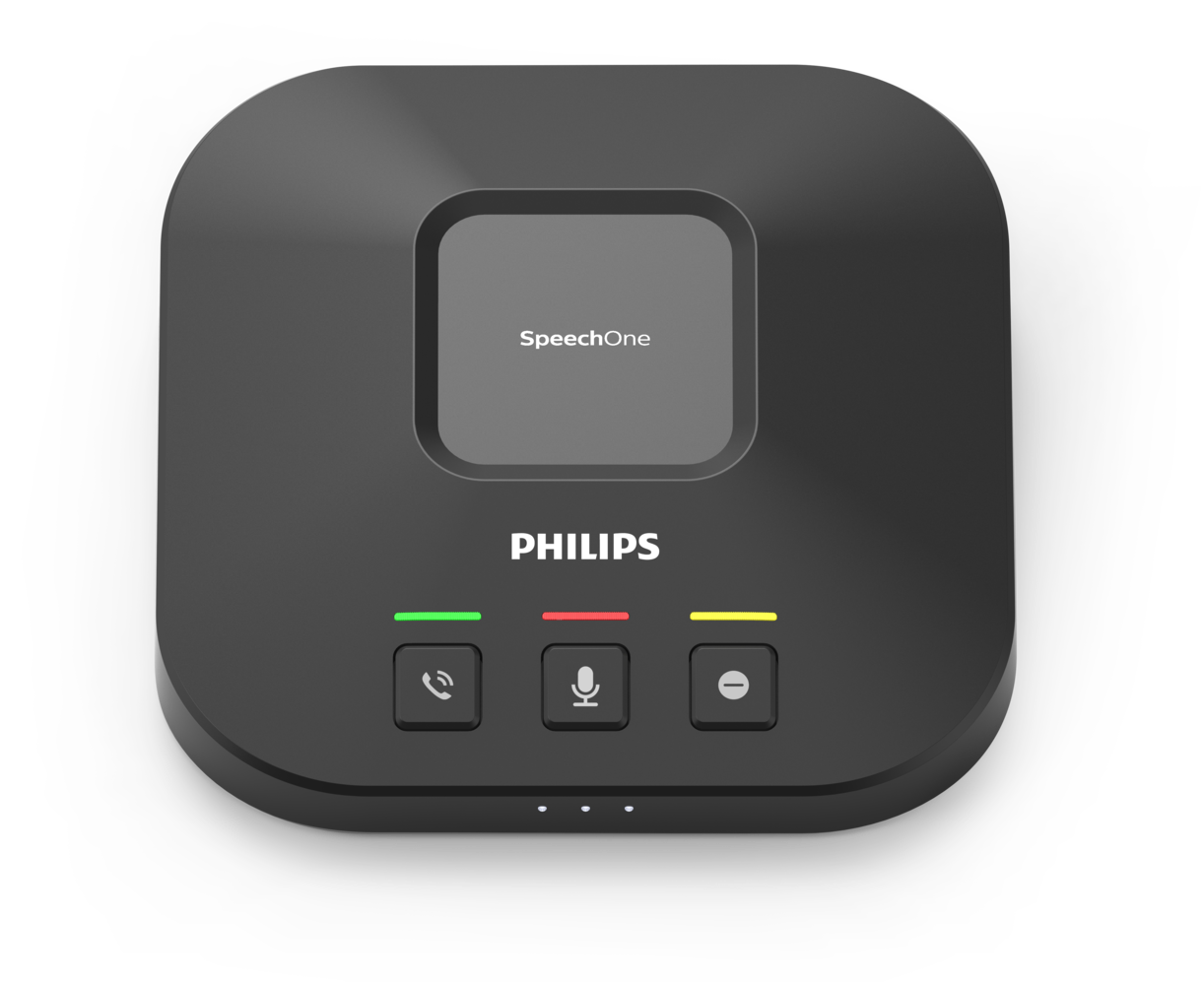

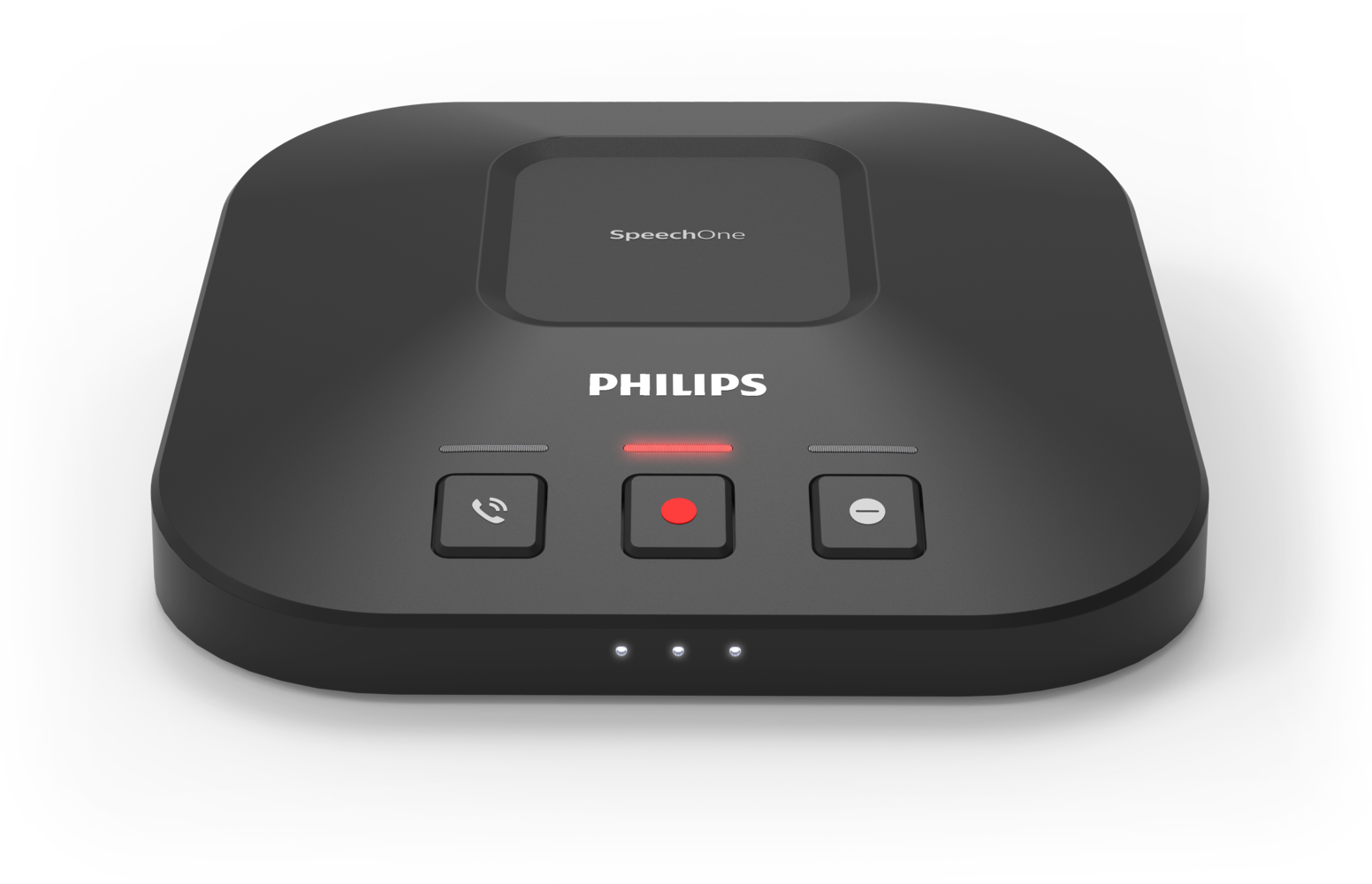

• Docking station controls: accept/reject Skype call, start/stop recording, busy/available

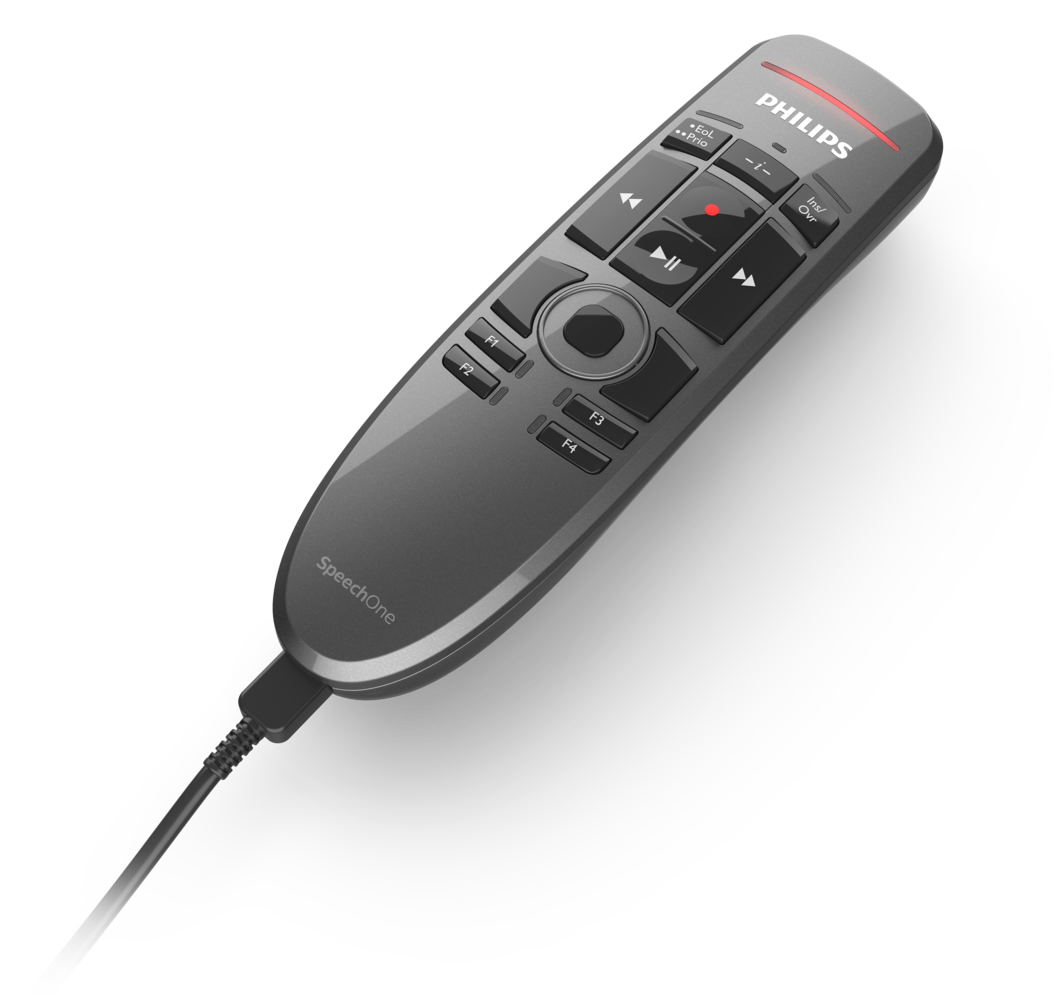

• Remote control: touch sensor with mouse function, record light incitation, freely configurable keys

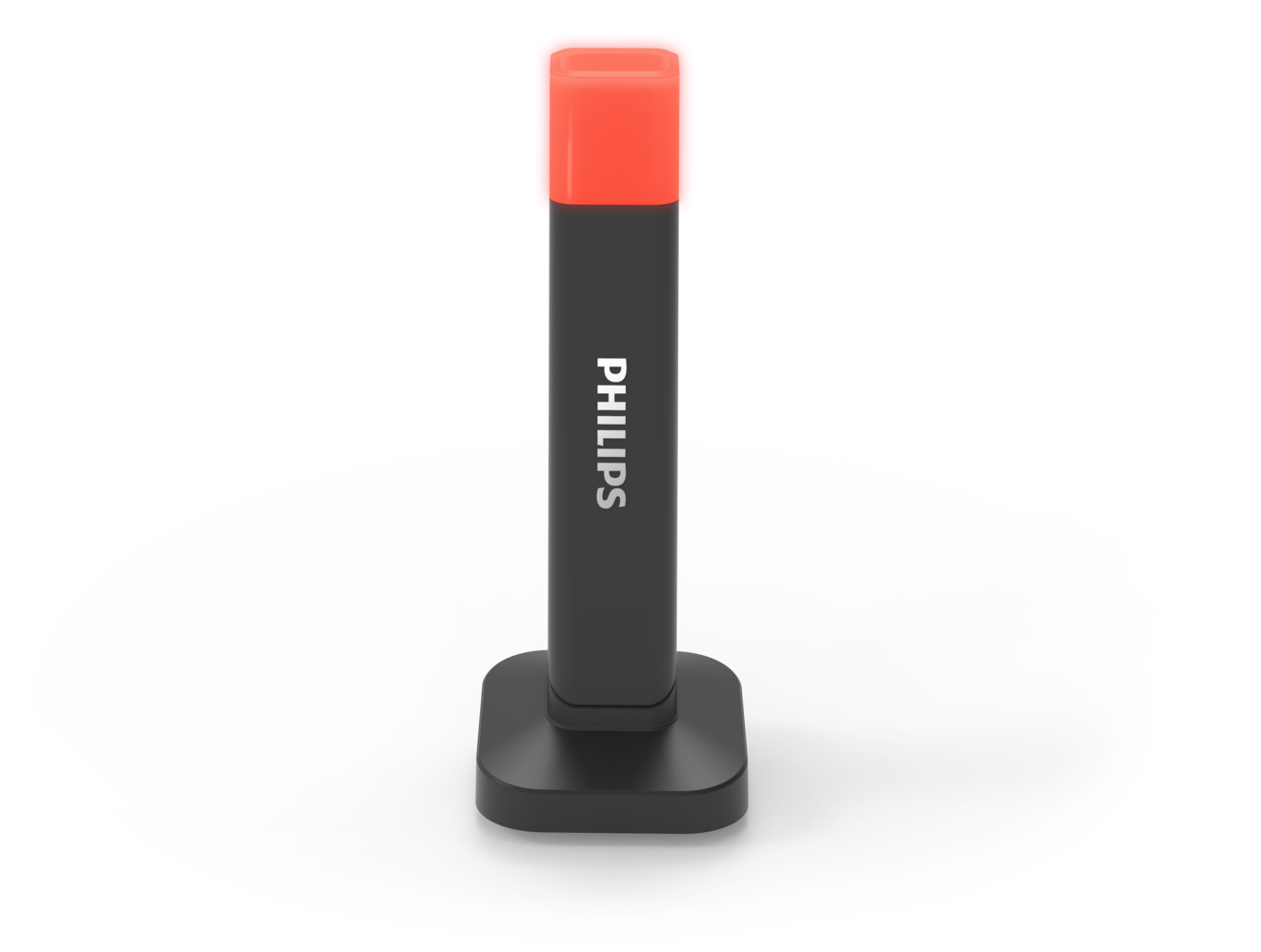

• Status light with flexible, rotating magnetic mounting system

System requirements

• Processor: Intel dual core or equivalent AMD processor, 1 GHz or faster processor
• RAM: 2 GB (32 bit)/4 GB (64 bit)
• Hard-disk space: 100 MB for SpeechExec software, 30 MB for Speech Control software, 4.5 GB for Microsoft .NET Framework
• Operating system: Windows 11, Windows 10 (64 bit), macOS 12/11 (Mac functionality may be limited)
• Graphics: DirectX-compliant graphics card with hardware acceleration recommended
• Sound: Windows-compatible sound device
• Browser: Internet Explorer 9 or higher, or the current version of Chrome or Firefox
• Free USB port
• SpeechExec: Internet connection for required software activation

Additional system requirements for speech recognition software

• Supported speech recognition software: Nuance Dragon Professional 13/14/15 Individual/Group, Nuance Dragon Legal 13/14/15, Dragon Medical Practice Edition 3.x/4.x, Nuance Dragon SDK Client Edition 14, M*Modal Fluency Direct 8.0 and above, M*Modal Fluency for Imaging 3 and above, Fusion Narrate powered by nVoq
• Processor: Intel dual core or equivalent AMD processor, 2.2 GHz or faster processor
• RAM:4 GB (32 bit)/8 GB (64 bit)
• Hard-disk space: 8 GB

Green specifications

• Compliant to 2011/65/EU (RoHS)
• Lead-free soldered product
• Certifications: CE, FCC, C-Tick (Australia and New Zealand)

Operation conditions

• Temperature: 5° – 45° C / 41° – 113° F
• Humidity: 10 % – 90 %

Design and finishing

• Material: high-class polymers
• Color: black

Product dimensions and weight

• Headset (incl. headband and cushions): 155 × 150 × 140 mm / 6.1 × 5.9 × 5.5 in, 81 g / 2.6 oz.
• Docking station: 120 × 120 × 32 mm / 4.7 × 4.7 × 1.3 in, 395 g / 13.94 oz.
• Remote control: 157 × 45 × 32 mm / 6.2 × 1.8 × 1.3 in, 78 g / 2.8 oz.
• Status light:3 6 × 36 × 98 mm / 1.4 × 1.4 × 3.9 in, 58 g / 2.1 oz.
• Magnetic ear cushion: 50 mm / 2 in.
• Magnetic head cushions: 48 × 12 mm / 1.9 × 0.5 in.

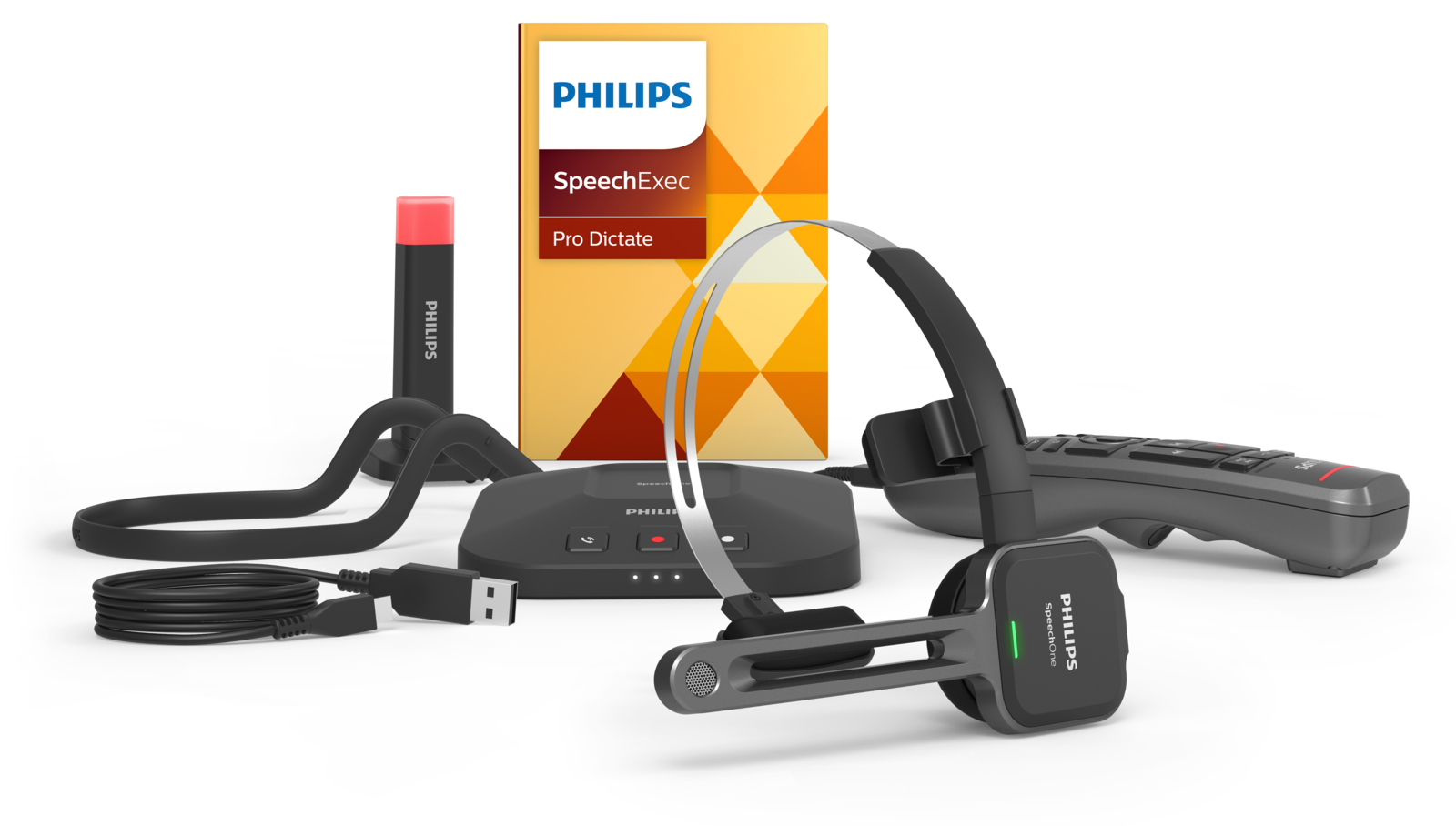

Your headset comes with

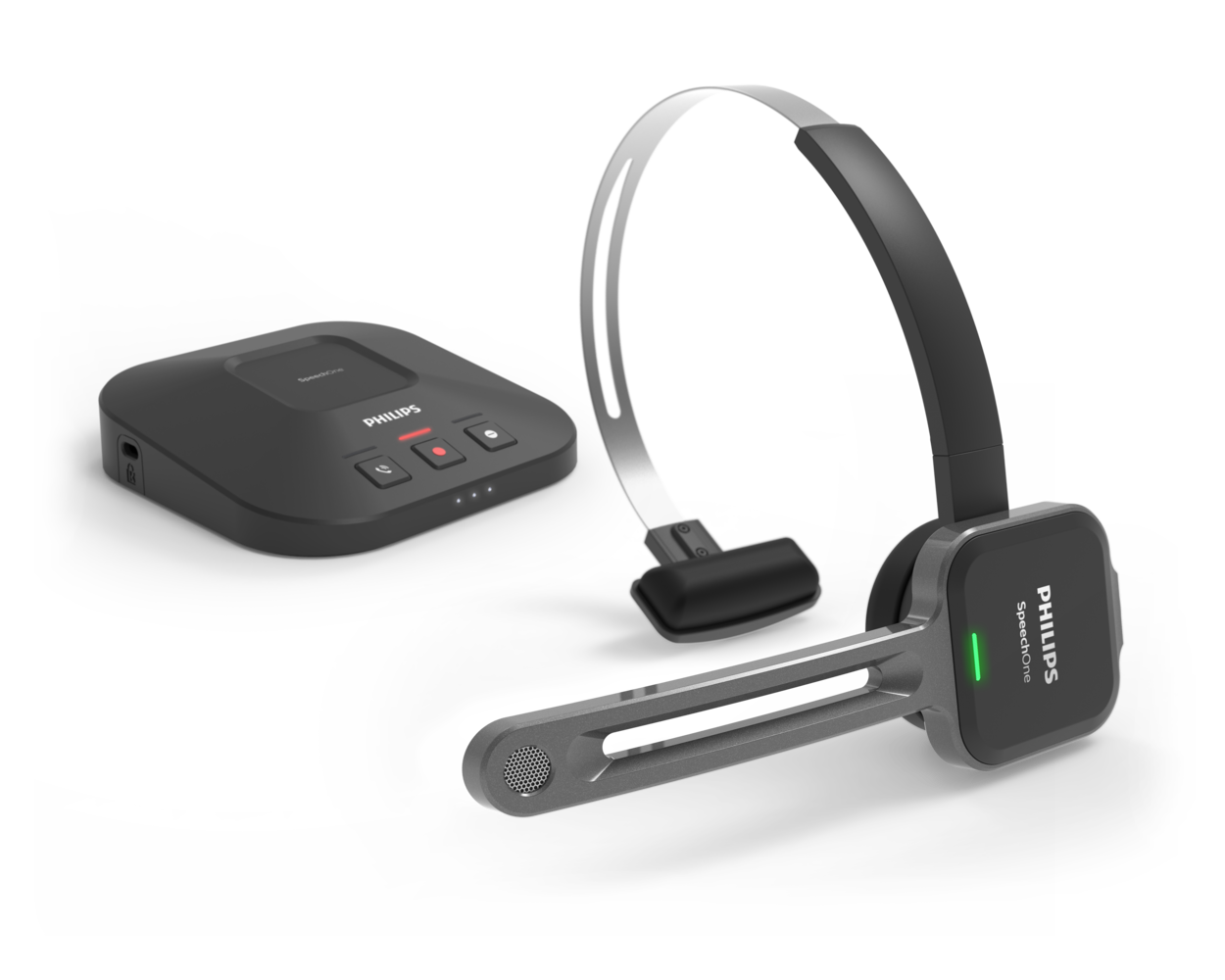

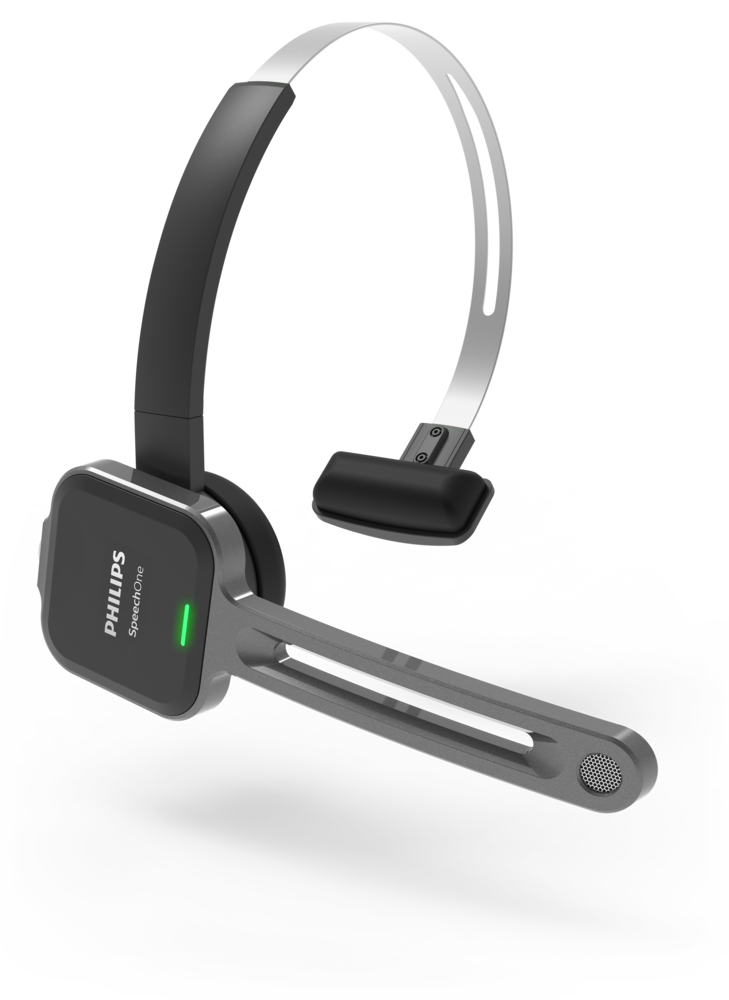

• SpeechOne Wireless Dictation Headset

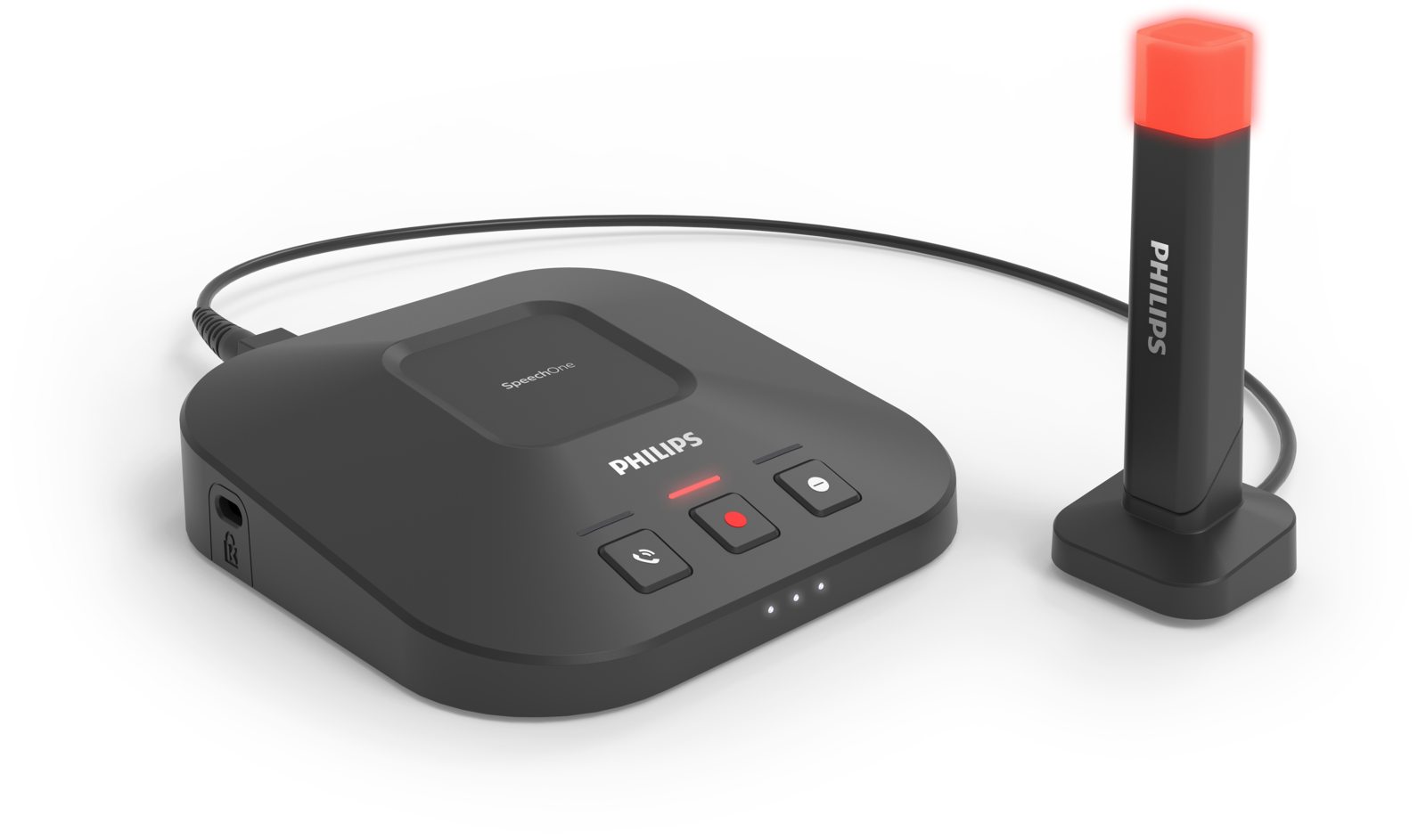

• Docking Station
• Status Light
• Remote Control (PSM6500)
• USB cable
• Neckband
• Headband attachment
• Magnetic ear cushion
• 2 magnetic head cushions
• Quick start guide

• Brochure
