Description

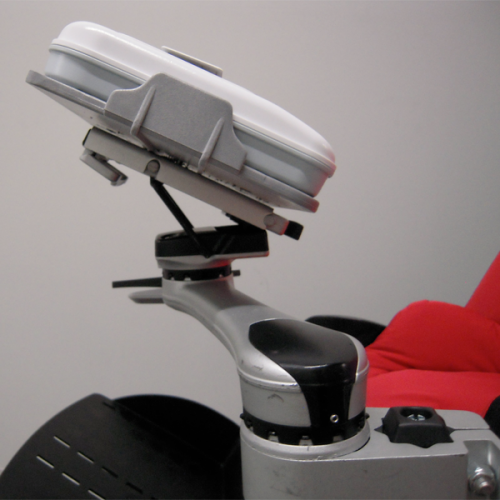

The single arm is more compact than the dual arm featuring 2 rotational joints, referred to as the shoulder and wrist.
It is simple to move and has 576 possible lock positions.
Full extension:
7.5 - 10.5 inches from shoulder to wrist joint
Tilt from 0° to 110°
User Controls:
Easy-access, one-handed operation
Hoop unlocks shoulder only
Paddle unlocks wrist
Tilt lock lever
Effort to unlock and move:
<1.5 pound force to unlock. Force to move varies with device weight.
Force to adjust tilt depends on torque hinge selected.
Reach required to reposition:
Requires more reach to move out of the way.
Device can be lower than dual; less distance from bottom of arm to top of device
Less placement versatility than dual; fewer locking and operating positions.
Technical Specifications
Dimensions
- Height: 4.9 inches (125.3mm)
- Width: 4.8 inches (120.3mm)
- Length: 13.4 inches (339.3mm)
- Weight: 3 pounds.
Material(s)
- Engineering Plastics
- Plated Steel
- Aircraft Aluminum
What's in the box?
- Mount'n Mover
- 1x Quick Release Plate (QRP)
- Tools
- 3/16" Hex Key
- 1/16" Hex Key
- One penny as a lock-setting tool
- Mount'n Mover Quick Guide
- Mount'n Mover Hang Tag
- Warranty registration card
