Name: QuadJoy 4 Mouse Only
Brand: QuadLIFE
SKU: QD-M4
Price: 2247.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

QuadLife – A hands-free, mouth operated joystick computer mouse designed specifically for individuals with disabled hand movement.

The QuadJoy 4 is quick to set up and easy to use! Simply hold the stick with your lips and move the stick in any direction (360 degrees) to control your cursor.

The latest Sip-N-Puff Mouse body connects to the Flexible Mounting Arm using a new configuration. Old Sip-N-Puff Mouse units are no longer compatible.

Features for QuadJoy 4:

100% Plug & Play via USB.
Supports Bluetooth connectivity to your computer, phone, or tablet (Android or iOS 13 or greater).

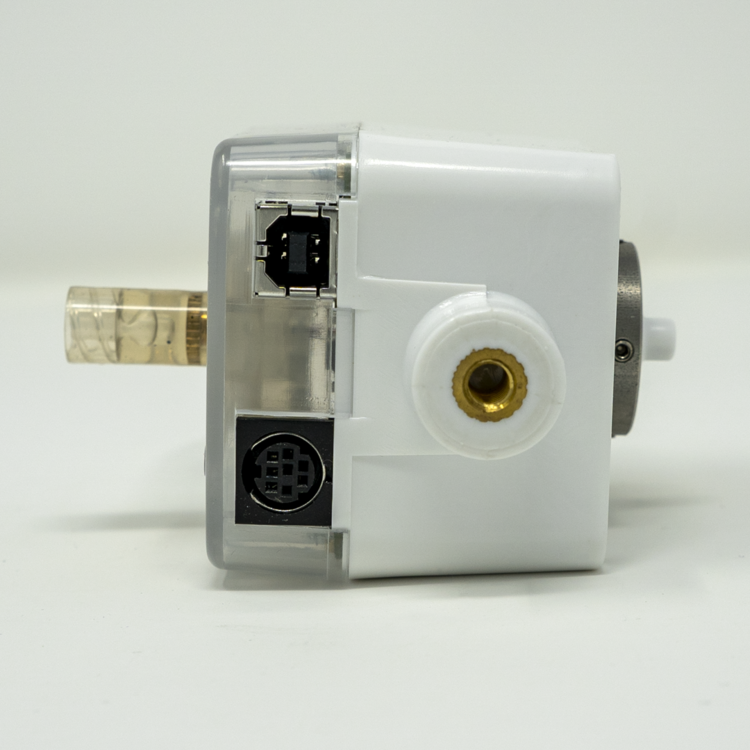

The QuadJoy mouse will still need a cable to power it either USB or 8 pin DIN.
Improved movement accuracy and smoothness, with adjustable cursor speed.
Elimination of cursor drift and stick dead-band problems.
48 LED indicators for user convenience. They are dimmable for sensitive eyes.
All plastic components of the QuadJoy 4 are injection molded plastic (not printed).
Hardware Upgrade: Ability to connect up to 3 external switch inputs that can be set to activate any action. (Requires Wheelchair Jack Interface, or External Jack Interface).
Hardware Upgrade: Ability to power the QuadJoy from an electric wheelchair and connect via Bluetooth to avoid all wires. (Requires the wheelchair Jack Interface)
Software Upgrade: Ability to operate as a gaming console in Joystick Mode.

QuadJoy Features:

Full mouse functionality: Mouse Left Click, Right Click, Wheel, Center Button, Button 4, Button 5.
3 modes of scrolling: Vertical, Horizontal, and Zoom.
2 settings profiles: Mouse 1 Mode and Mouse 2 Mode.
Full Keyboard shortcuts and commands: copy, cut, paste, find undo.
Bluetooth wireless connectivity for 4 devices: Android or iOS 13 or greater for phones, tablets, or computers.
Sleep Mode: saves power and avoids accidentally waking your device.

Gestures:

12 customizable Sip & Puff gestures per mode
4 customizable Edge gestures
32 customizable Independent gestures
Inhibit Motion gesture

Settings:

Cursor Settings: allows for full-motion control
Gesture Settings:
Inactivity Settings: Sleep mode, Default target, Default mode
Sip & Puff Settings: pressure high and low thresholds
Scroll Settings: scroll rate, scroll hold time
Deadbands: Stick, Click, Pressure, Mouse

Compatible Operating Systems

Windows
MacOS
iOS 13 or greater
Linux
Chrome OS
Android

Basic Operation of the QuadJoy

When your QuadJoy arrives it will be set to the “HOME” configuration. The Sip & Puff system will be set to 4 Gestures. The following chart lists the 4 Gestures and their assigned actions:

Creating Sip & Puff Gestures

To cause a Left Click simply abruptly sip on the end of the stick. If you desire to click and drag, simply hold the sipping action while moving the stick until the final position has been reached, then cease sipping. To cause a right click abruptly (and briefly) puff on the end of the stick. The air for the Sip & Puff system should be produced with your cheeks (NOT your lungs) similar to using a straw.

Edge Gestures

Edge Gestures allow the user to connect to different devices without assistance. The QuadJoy basic “HOME” configuration has all 4 Edge Gestures assigned. To cause an Edge Gesture, push the stick either Up, Down, Left or Right to the extreme limit. Note the LED under the Stick/Magnet holder will turn Green. Holding the stick for 3 seconds will cause the LED to turn White, when it does release the stick and remove your lips. The following Actions are assigned to the Edge Gestures:

Mouse Wheel

The Wheel function is accessed with a slow Puff. The best way to create this Gesture is to slowly and lightly puff until the upper Right LED turns Blue and then continue to puff harder until the LED turns Green. You will notice that the Green LED remains illuminated even after the puff has ceased. If you Puff again the viewed page will scroll upward and if you Sip the viewed page will scroll downward. The scroll mode will remain active for a programmable amount of time after your last sip or puff.

On-Screen Keyboard (Windows)

The slow sip function is assigned to toggle the on-screen keyboard when connected to a Windows 10 operating system. The best way to create this Gesture is to slowly and lightly Sip until the upper Left LED turns Blue and then continue to Sip harder until the LED turns Green. Then release the pressure.

The Home Configuration

USB Connection as a Mouse. The QuadJoy performs all the functions of a standard computer mouse without the need for hands. The Home configuration only uses Mouse Profile-1. A Mouse Profile allows the user to set the speed the cursor moves at and adjust a “dead band” to make it easier to keep the cursor from drifting. A Profile can also control how the speed of the cursor changes with the stick position. The Home configuration is set to cause the cursor speed to change based on the stick position. The absolute movement threshold will cause the cursor position to move based on the stick position. This is explained in the Customizing QuadJoy slides.

Bluetooth connected computers, tablets, or phones can be controlled as a mouse with the QuadJoy. The mouse profile/mode will also affect how the device cursor responds.

Bluetooth devices will need to be Paired with the QuadJoy before they will function. To Pair with Bluetooth device #1 perform the Left Edge Gesture. Note the lower left Orange LED is flashing quickly. Now the QuadJoy is discoverable by a Bluetooth device and will identify itself as “QuadLIFE xxxx” where xxxx is the QuadJoy’s serial number. Follow the Pairing instructions for your Bluetooth device. After the device is Paired note that the orange flashing LED is now steady. When the QuadJoy is connecting to a previously Paired device the Orange LED will flash at a slow rate until the connection has completed.

To remove a Bluetooth device and Pair a different device you must use the QuadLIFE App to remove the previously Paired device. The General Tab will show the current Paired devices. Left click the device to remove and press the Unpair button.

NOTE: The original Home Configuration used the Right Edge Gesture to connect a second Bluetooth device. If the new Home configuration is desired, it can be Downloaded from the Quad.LIFE Website.

Pairing an iOS device to QuadJoy

To be able to control an iOS device it must be at or above Firmware version 13. To pair a new Bluetooth device:

Switch to an un-assigned Bluetooth Target by holding the stick to either the far left, (Bluetooth 1) or to the far right (Bluetooth 2) until the Green LED under the stick magnet holder turns teal then release the stick. You will notice that the Bluetooth LED is flashing quickly. (indicating that the Bluetooth device has not been paired)

From the home page of your iOS device select the Settings option. Once on the Settings screen select the Accessibility option.

From the accessibility screen select the Switch Control option to turn it ON. Then select “Switches” and finally select “Bluetooth Devices”. A list of available devices should appear and one of the devices should be “QuadLIFE xxxx” where xxxx is your QuadJoy serial number. Tap your screen on the QuadLIFE device to complete the pairing.

To allow the QuadJoy to wake up the iOS device go back to the accessibility / touch section and turn on the assistive touch option. The security sign-in can be turned off if desired.

Pairing an Android device to QuadJoy

With the Bluetooth LED flashing quickly find the Bluetooth set-up menu on your Android device. (Typically use two fingers and swipe downward on your screen) If your device is not scanning, find the scan button to request a scan.

A list of available devices should appear and one of the devices should be “QuadLIFE xxxx” where xxxx is your QuadJoy serial number. Tap your screen on the QuadLIFE device (A request to Pair message may appear “indicate OK”) Your QuadJoy mouse can now control your Android device.

Cleaning

Routinely following a few simple maintenance steps will help keep both you and your Sip-n-Puff device healthy!

When to Clean Your Sip-n-Puff Stick:
- When 2 weeks have passed.
- When a second person needs to share a Sip-n-Puff stick.
How to Clean Your Stick

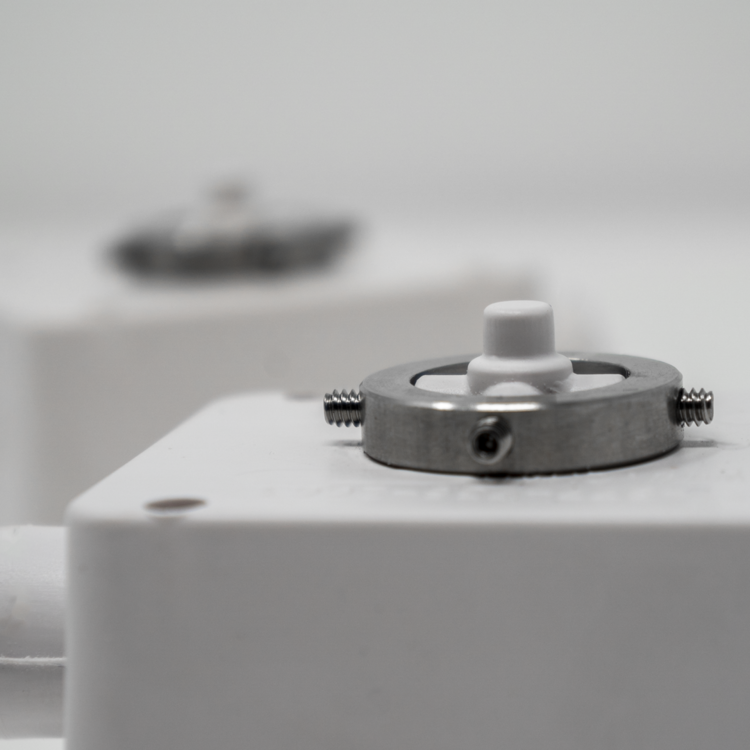

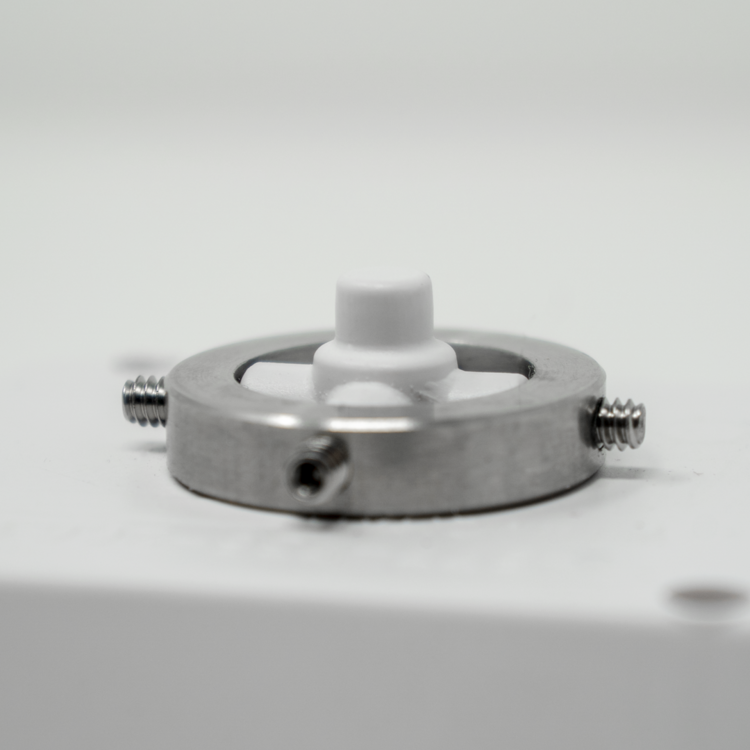

- To remove the stick from the Sip-n-Puff device, firmly hold the base of the magnet holder and gently twist the stick counterclockwise.
- Next remove the white spongy Saliva filter from the stick.
- The stick can now be cleaned in the dishwasher or by hand.

*Warning*: If moisture gets into the Sip & Puff mechanism of the device, this puts your system at risk for failure and costly repairs! Hence it is critical to replace parts when necessary and clean your stick periodically to ensure no moisture enters the internal parts. Replacements found here: QuadJoy Supplies.

When to Replace Parts:

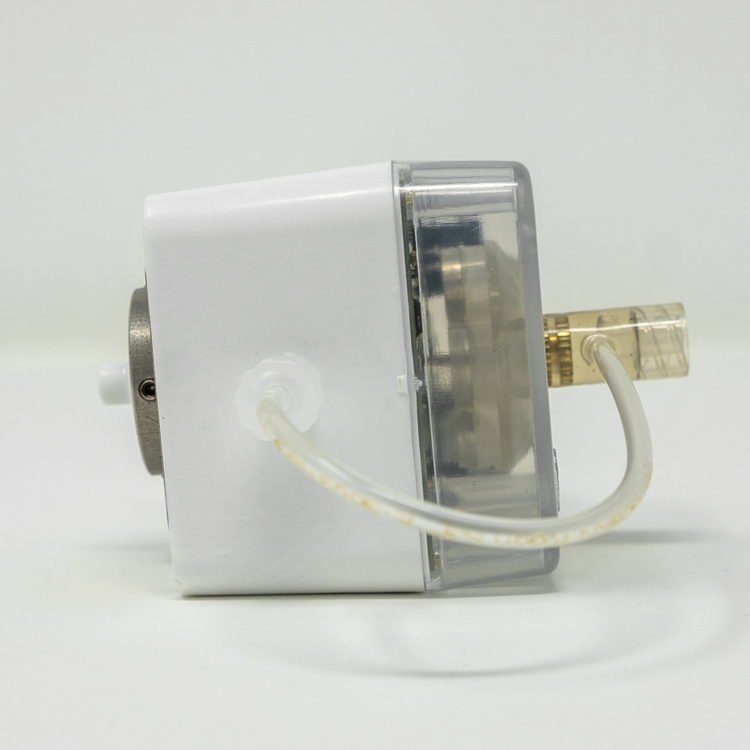

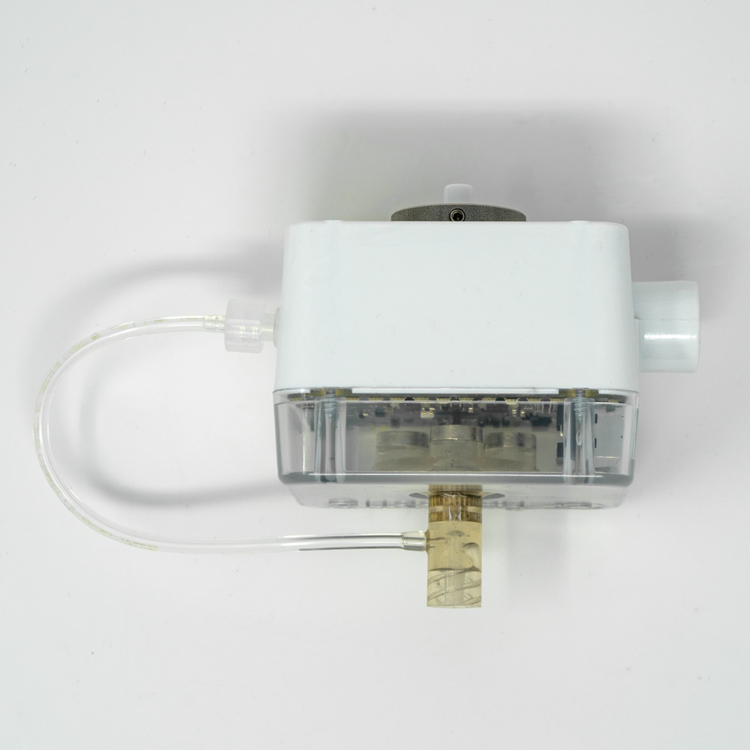

- When moisture is observed in the clear Line and Luer tubing. Replace Line and Luer
- When moisture accumulates in the saliva filter or looks discolored: Replace Saliva Filter
- When the Sip & Puff Gestures are harder to activate: Replace Hydrophobic Filter
General Cleaning Procedure
- Use disinfectant wipes on the full Sip-n-Puff assembly, stick, mounting arm, clamps, and cables. Note: We recommend a wipe over a spray to avoid liquids entering the mouse.
- Allow the system to dry.

Note: Special Order ordered specifically for you, therefore Sale is final.

Two Year Warranty

Coverage

This limited warranty applies to a QuadJoy Mouse furnished by Street Electric Manufacturing Company LLC (SEMCO) and applies to the end-user.

Defects

This limited warranty covers QuadJoy repairs to correct any malfunction occurring during the Warranty Period resulting from defects in material or workmanship.

Repairs

To obtain warranty repairs, the end-user must request the needed repairs within the warranty period from SEMCO. Only approved components supplied by SEMCO will be used in the repairs. SEMCO may at its discretion, repair or replace components. A reasonable time must be allowed to perform the warranty repair after the QuadJoy Mouse is returned to SEMCO. Repairs will be performed during normal business hours. (Limited warranty service may be obtained by delivering QuadJoy Mouse during the warranty period to SEMCO. If the QuadJoy Mouse is delivered by mail, the end-user agrees to insure the QuadJoy Mouse or assumer the risk of loss and/or damage in transit. The end-user also agrees to prepay shipping charges to SEMCO.)

Warranty Period

The warranty period begins on the date in which the end-user purchases the QuadJoy Mouse or date in which the QuadJoy Mouse is put into use prior to sale, whichever comes first. The warranty period ends after a period of two years. Proof of the purchase date must be provided before any repairs and/or replacements will occur.

Replacement

QuadJoy Mice which cannot be repaired will be replaced at SEMCO’s discretion. A replacement QuadJoy Mouse will be supplied by SEMCO as a replacement for the defective QuadJoy Mouse still under warranty. The replacement QuadJoy Mouse will assume the identity of the QuadJoy Mouse replaced and be entitled to the remaining warranty.

Incidental or Consequential Damages

SEMCO is not responsible for incidental or consequential costs, expenses, and/or damages which the end-user may incur as a result of malfunction or failure covered by this warranty, such as communication expenses, shipping costs, loss of equipment use and/or downtime, inconvenience, and other similar costs, expenses, and/or damages. This warranty does not cover replacement or repairs required due to accidents, misuse, storage damage, disaster, negligence, or modifications made without prior written authorization from SEMCO. Specifically, this warranty does not cover shorted or damaged pressure switches due to contact with saliva.

Other Limitations

The performance of repairs is the exclusive end-users remedy under this warranty. SEMCO does not authorize any person to assume or create for it any other obligation or liability in connection with the QuadJoy Mouse. SEMCO reserves the right to change this warranty statement without notifying the end-user. Furthermore, all previous copies of this warranty statement become void upon the revision of this document by SEMCO.
