Description

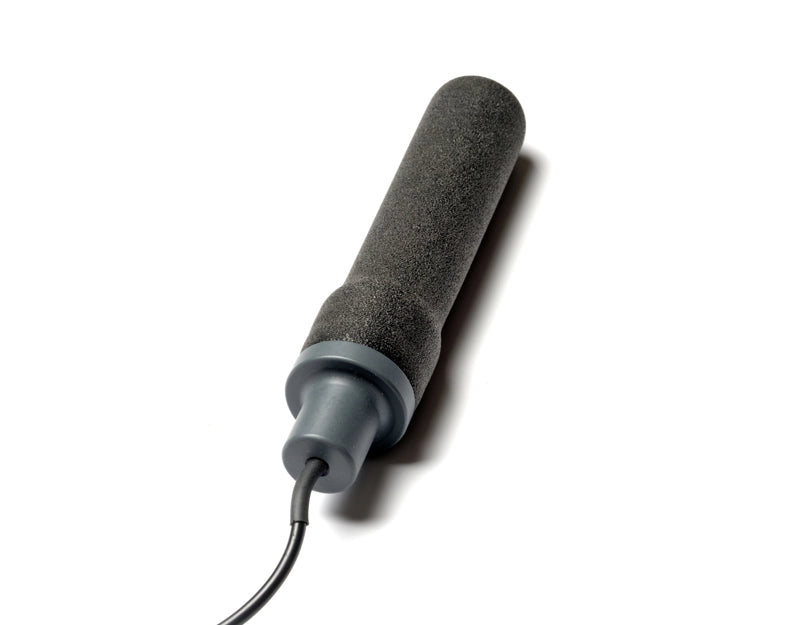

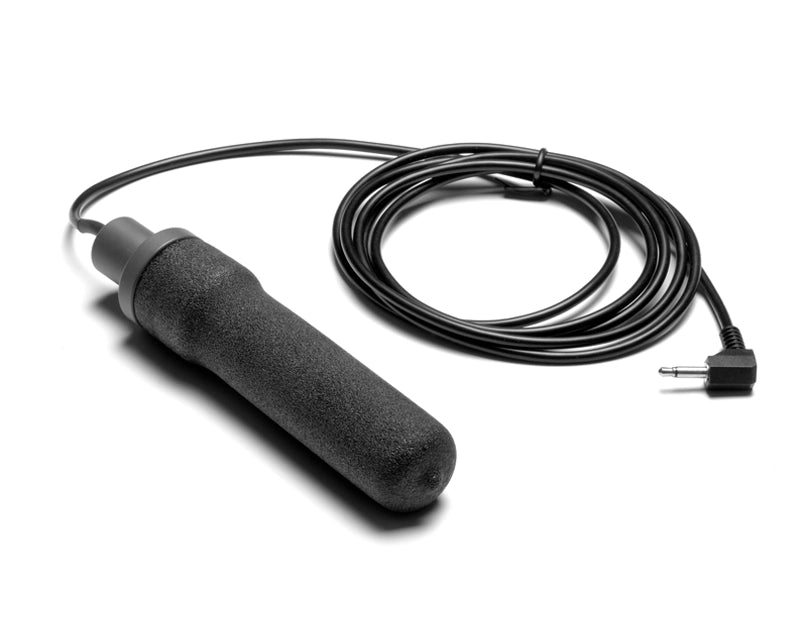

Grasp Switch is a mountable switch that can be held in the palm of the hand.
Grasp Switch is a mountable switch that can be held in the palm of the hand and operated by squeezing or pinching the rubber hand grip or by pushing it sideways using the hand, forearm or head. It is robust, durable and reliable – use it wherever you would use a standard switch. It is terminated in an industry-standard 3.5mm jack plug.
- Activation force: approximately 300g (10.6 oz.) measured at tip.
- Mounting: Using clamp such as Wolf Mount MultiClamp #80.2005
- Activation area: anywhere on 90mm x 30mm diameter shaft.
- Mounting/ clamping area: 18.5mm x 19mm diameter.
- Auditory feedback: No
- Tactile feedback: No
- Visual feedback: No
- Termination: 3.5mm mono jack plug
- Current: 30mA at 30Vdc maximum
- Cable length: 150cm (5 feet)
- Switch type: Push to make (Normally Open)
- Battery: None
Used For:
- Computer Access
- Tablet Access – iDevices
- Tablet Access – Android
- Communication
- Toys & Mains Control
- Switch Activities
- Environmental Control
- Ageing Resources
