Description
Button-style Adaptive Switch.
Orby is a colorful button-style adaptive switch featuring a smooth contoured design that is 2.5-inches in diameter and less than one inch tall. It utilizes the industry standard 3.5-mm headphone jack attached to a 5-foot cable. A simple press anywhere on the top will provide a switch closure with pleasing audible and tactile feedback.
Orby is a perfect access switch for emulating alternative mouse buttons, for scanning Alternative and Augmentative Communication (AAC) Devices, for accessing Environmental Control Systems, interacting with simple toys, or controlling any other device that can be navigated with one or more switches.

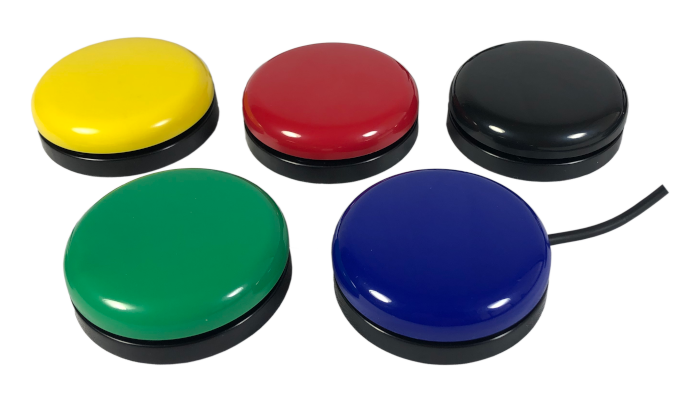

- Colorful – Yellow, Green, Aqua, Red, Blue and Black
- Auditory – satisfying click with each switch actuation
- Smooth – switch mechanism is quiet and smooth
- Durable – made of high-impact plastic
- Sensitive – can be activated anywhere on the surface and requires only 3.5 ounces of pressure
- Adaptable – threaded inserts on bottom for mounting and positioning
- Stable – includes gripping, high-tack friction pad base to prevent sliding
The Orby switch features integral dampers to reduce spurious sounds during actuation; while providing clear and audible feedback of the switch acutation event. Orby uses a tough industrial switch designed for high voltage, and current. (The industrial switch meets many approved standards from UL, CSA, VDE and TUV; however, Orby is not rated by these agencies and is NOT designed for switching high voltage and high current.)

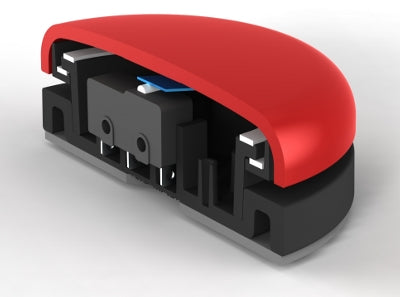

The industrial switch mechanism is rated for 30-million operations at 60 operations per minute. Orby uses a cable designed for a high flex environment that employs a strong PVC jacket and high strand count wire for severe duty.
Mounting Options

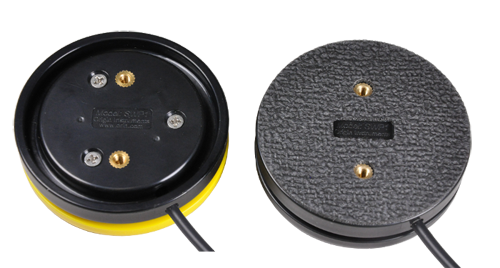

Orby has two #6-32 threaded inserts molded into the base for situations that require fixed mounting. The inserts are separated by 1.1-inches (28-mm) and centered on the switch body. The included friction pad is held in place with a pressure sensitive adhesive. It is shipped loose with Orby.

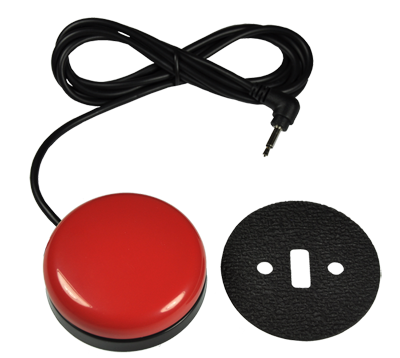

Orby Switch Includes:
- Orby Switch – Yellow, Green, Aqua, Red, Blue or Black
- Gripper friction pad
- Instruction card
- 2-year limited warranty
