Description

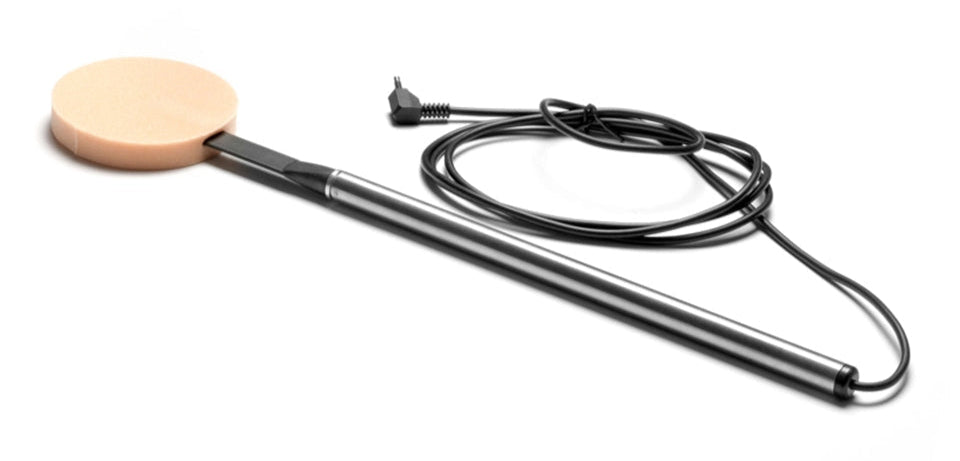

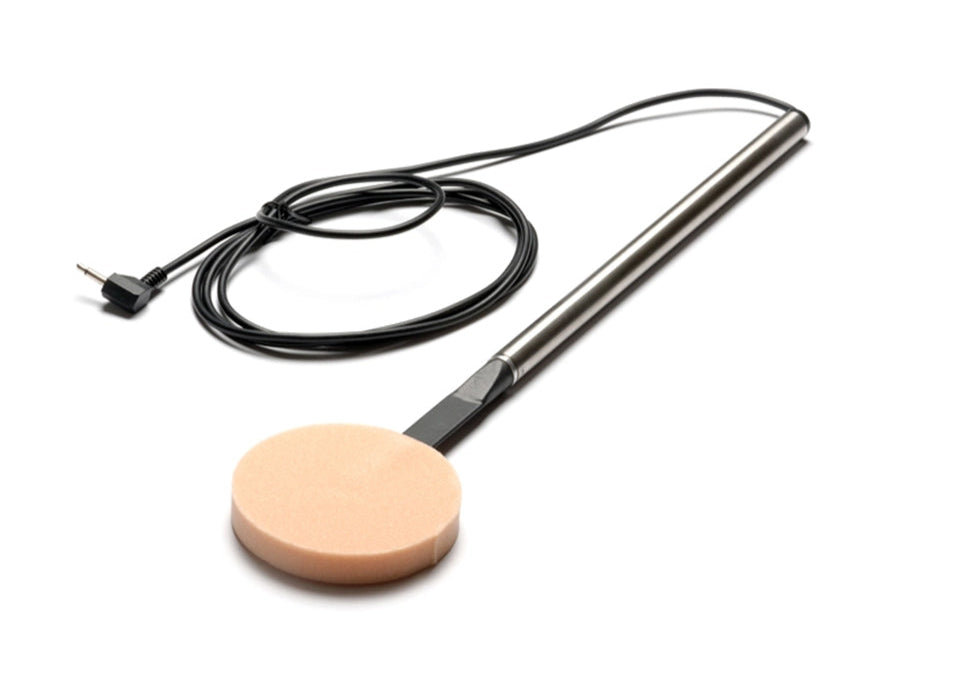

Pretorian Leaf Switch.
- Leaf Switch is a mountable switch that can be operated by pressing lightly against the leaf in one direction.
- Leaf Switch is a mountable switch that can be operated by pressing lightly against the leaf in one direction.
- Supplied with a removable 75mm (3”) round foam pad, it offers both tactile and auditory feedback.
- Use it wherever you would use a standard switch.
- It is terminated in an industry-standard 3.5mm jack plug.
Features
- Activation force: approximately 1.8 oz in one direction.

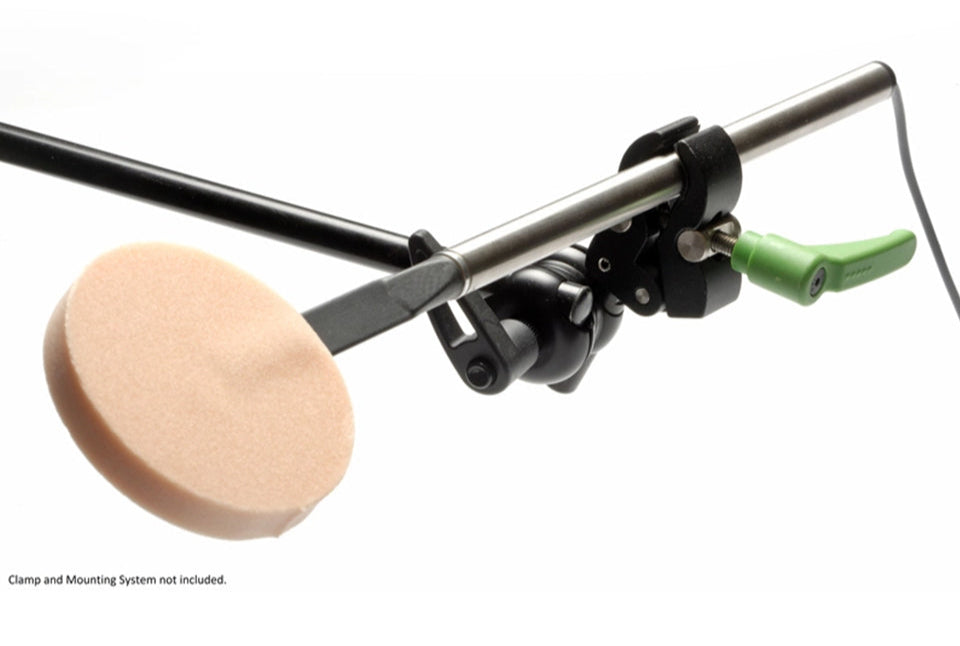

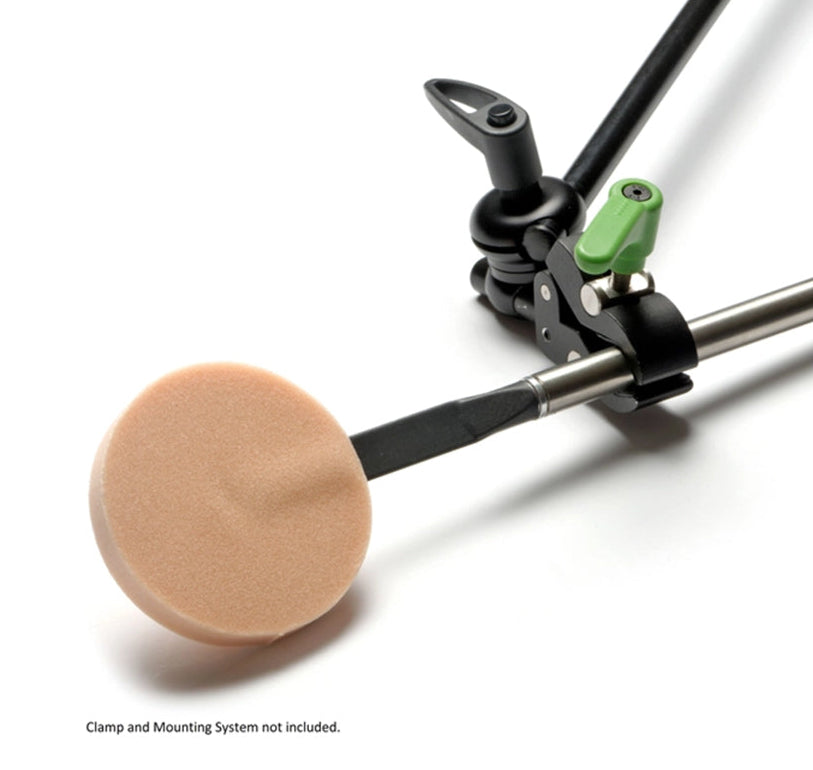

- Mounting: Using clamp such as Wolf Mount MultiClamp #80.2005
- Activation area: anywhere on diameter foam pad.

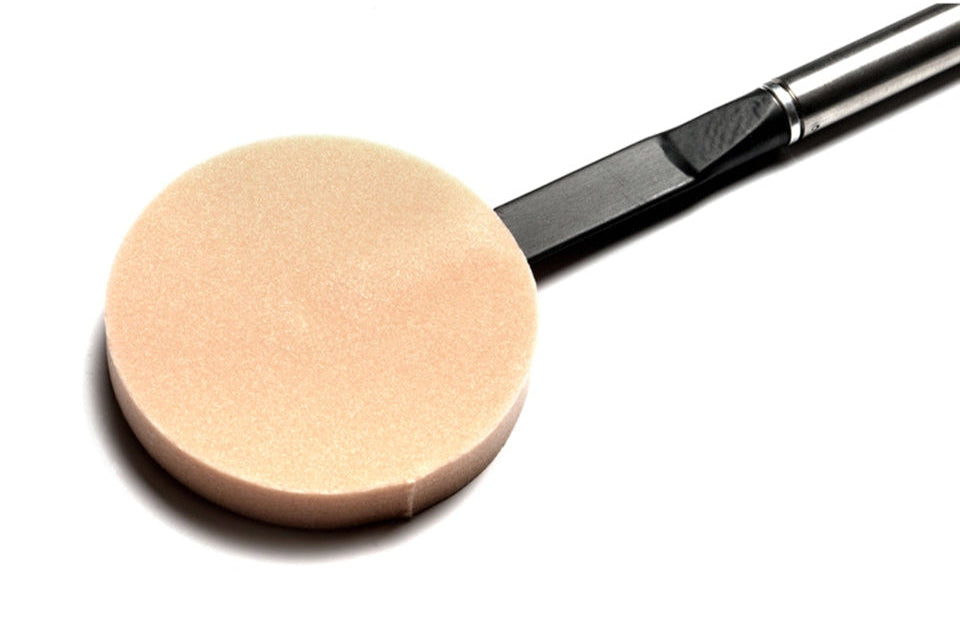

- Pad dimensions: 3″ dimeter x 0.5″
- Shaft dimensions: 8.9″ x 0.5″ diameter.
- Auditory feedback: Yes
- Tactile feedback: Yes
- Visual feedback: No
- Termination: 3.5mm mono jack plug
- Current: 1A at 30Vdc maximum
- Cable length: 5′
- Switch type: Push to make (Normally Open)
- Battery: None
Used For
- Computer Access
- Tablet Access – iDevices
- Tablet Access – Android
- Communication
- Toys & Mains Control
- Switch Activities
- Environmental Control
- Ageing Resources
