HoverCam eGlass Lightboard

HoverCamSKU: HCeG-35
Price:
$3,815.96

Description

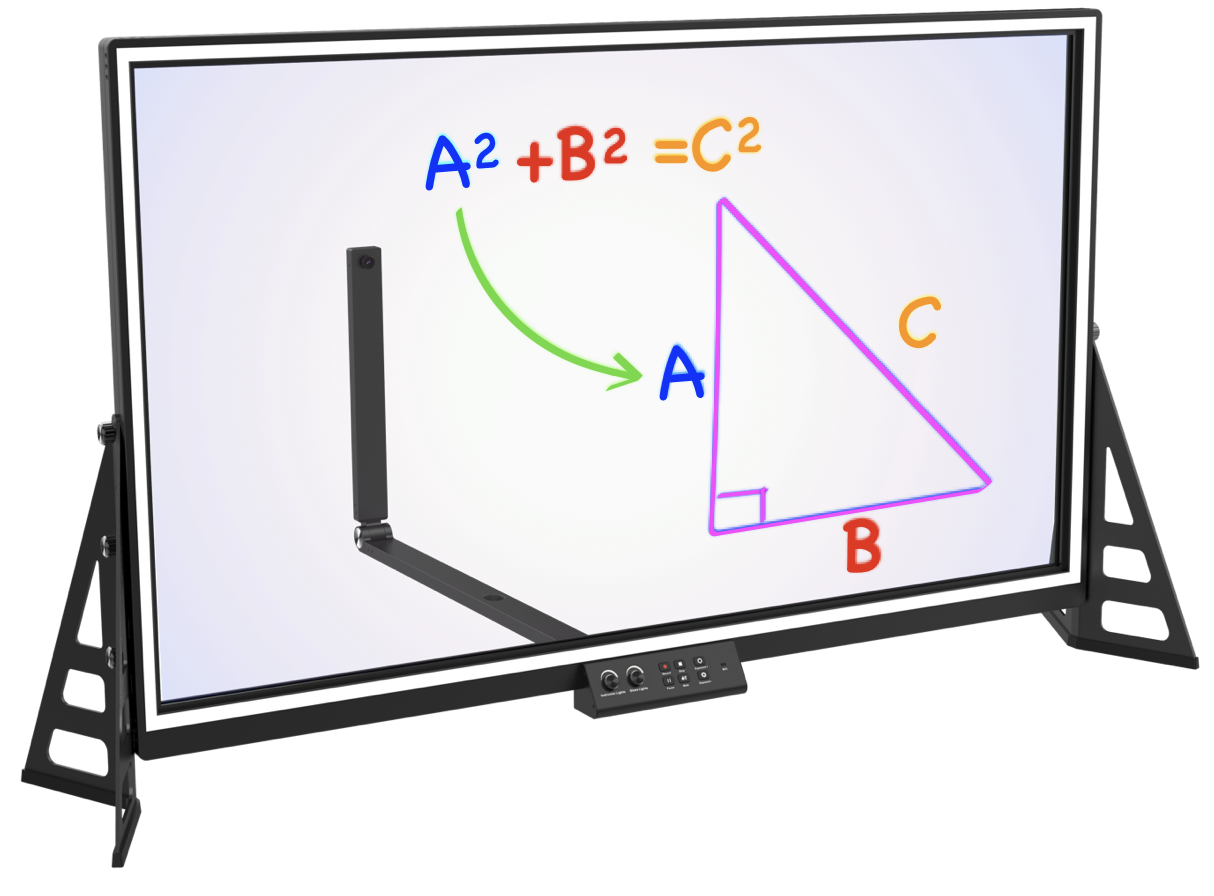

eGlass is an illuminated transparent lightboard with a built-in camera.

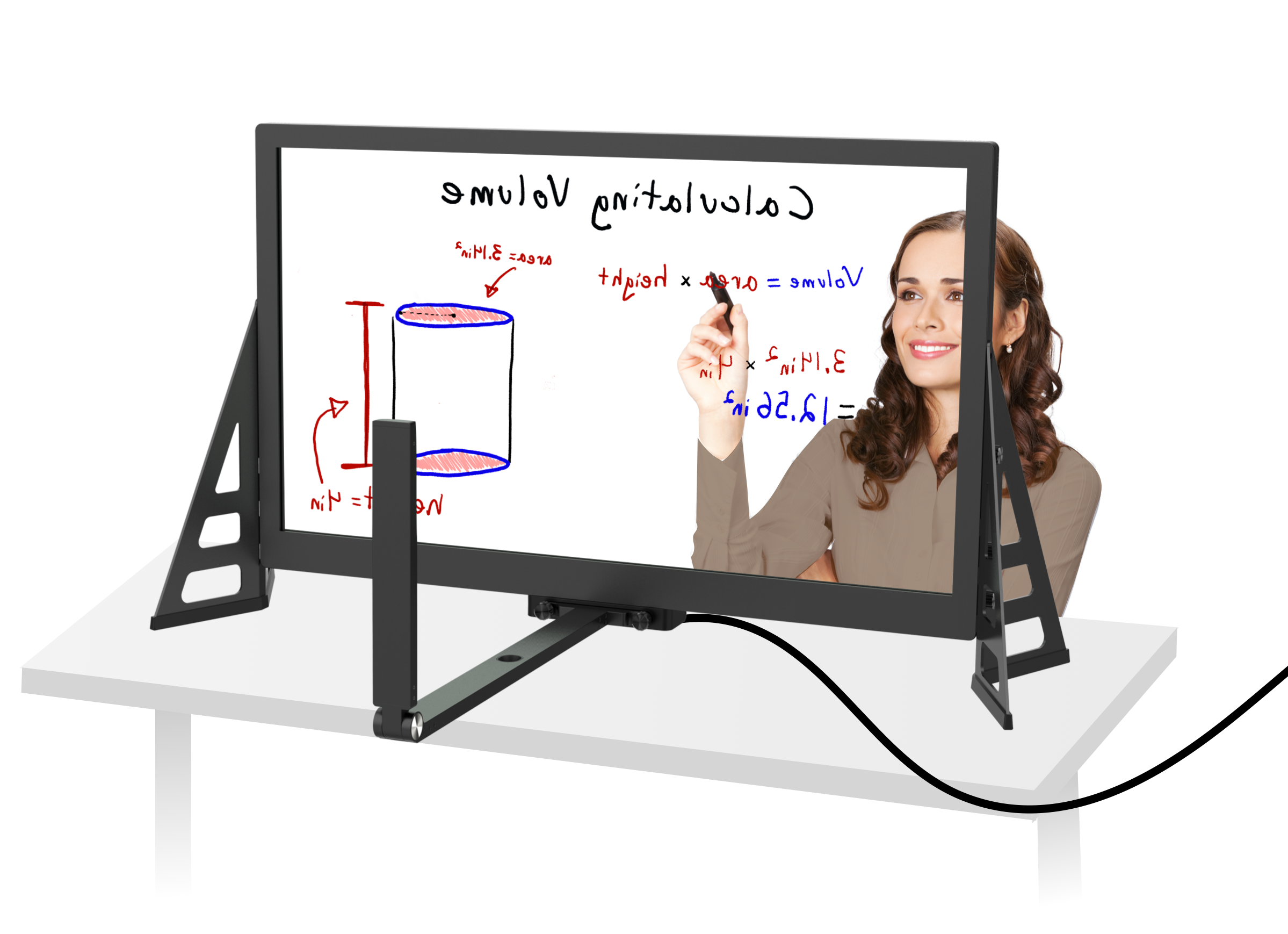

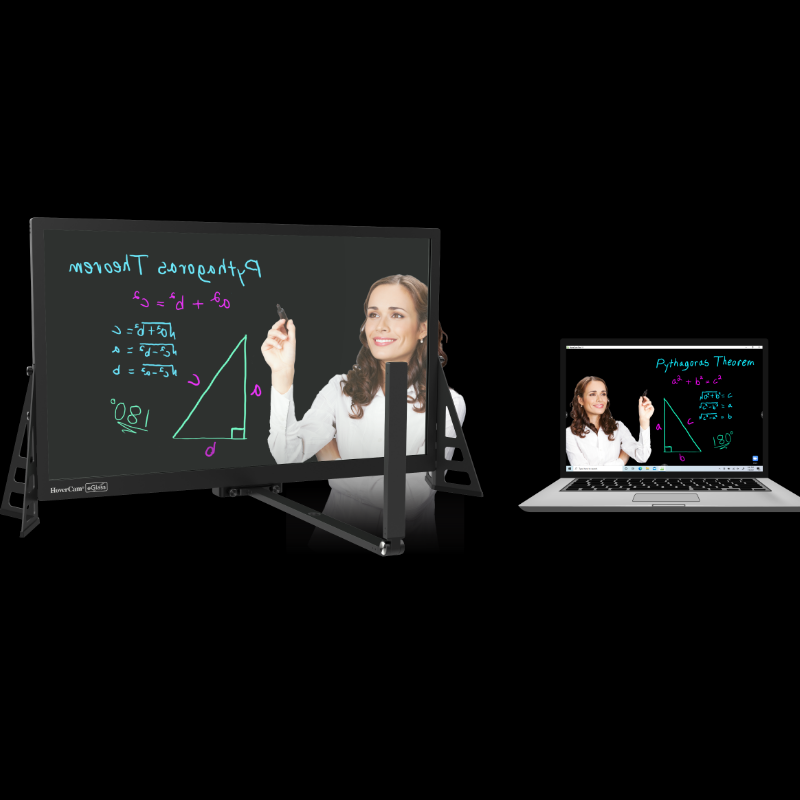

    eGlass is an illuminated glass lightboard with an integrated camera that captures the instructor’s face and writing in the same window, dramatically increasing student engagement online and in-class.

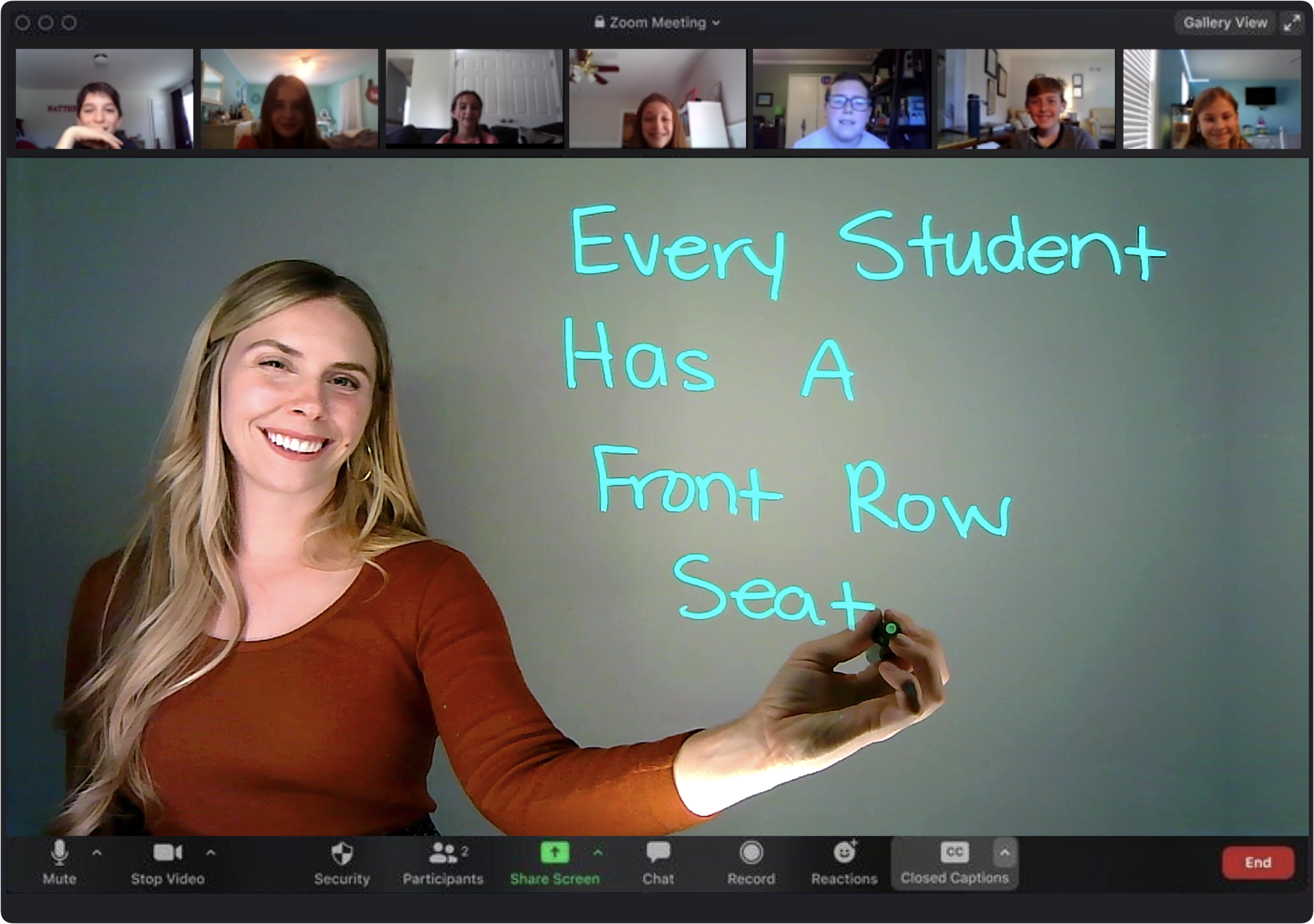

    Now students can see the writing and their teacher’s facial expressions, gestures, and gaze, all in the same window, which research shows is a critical factor in students’ ability to acquire and retain knowledge.

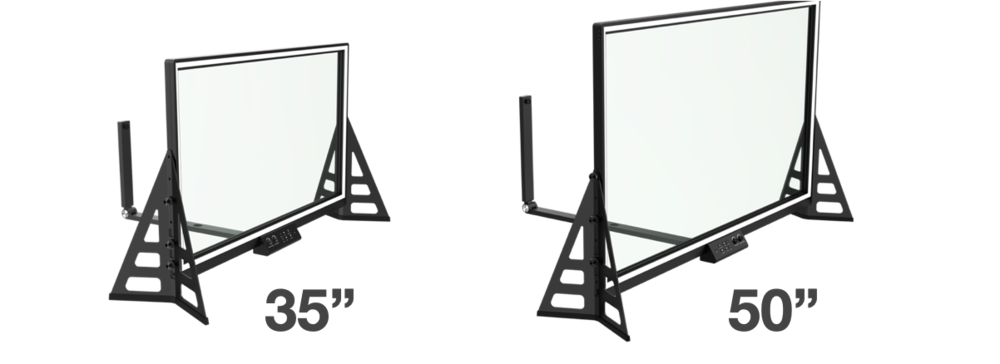

    35" eGlass

    • Live video streaming, Image Capture, Video Recording, Rich Media Insertion, Built-In Browser, and other lesson delivery tools
    • eGlass 35″ = 39.39″ L x 11.02″ W
    • 1920 x 1080 @30fps Live Video Resolution and Frame Rate
    • Manual Focus (Factory Calibrated)
    • SKU: HCEG-35

    50" eGlass

    • Live video streaming, Image Capture, Video Recording, Rich Media Insertion, Built-In Browser, and other lesson delivery tools
    • eGlass 50″ = 52.47″ L x 11.02″ W
    • 1920 x 1080 @30fps Live Video Resolution and Frame Rate
    • Manual Focus (Factory Calibrated)
    • SKU: HCEG-50
    dimensions

    Interface

    • USB 3.0 Type A
    • Glass 35" DC-In 24V 3.5A (Max)
    • eGlass 50" DC-In 24V 4.5A (Max)

    Power Adapter

    • Input: 100-240V AC 50-60Hz 2A
    • Output: 24V/5A

    Compatible OS

    • Microsoft Windows 10
    • Mac OS Catalina and above
    • Chromebook* (*NOTE: While eGlass is compatible with Chromebooks as a USB webcam, using the eGlass software with Chromebooks is not recommended due to restricted security permissions.)

    System Requirements

    • CPU 1.6 GHz , 2.0 GHz recommended, RAM 1 GB minimum, 2 GB or more recommended

    Software

    • Download from eGlass website (go to support page)

    eGlass Fusion (PC)

    • Live video streaming, Image Capture, Video Recording, Rich Media Insertion, Built-In Browser, and other lesson delivery tools

    eGlass Fusion (Mac)

    • Live video streaming, Image Capture, Video Recording, Rich Media Insertion, Built-In Browser, and other lesson delivery tools

    Chrome*

    • Live video streaming, Image Capture, Video Recording (*NOTE: While eGlass is compatible with Chromebooks as a USB webcam, using the eGlass software with Chromebooks is not recommended due to restricted security permissions.)

    CAMERA SPECIFICATIONS

    Camera Sensor

    • 8 MP BSI CMOS 1/3.2”

    Polarizing Filter

    • Optional Filter and Adapter Included

    Image Resolution

    • 3280 x 2464

    Live Video Resolution and Frame Rate

    • 1920 x 1080 @30fps* • 1280 x720 @30fps *Some low end computers may not be able to handle high video performance.

    Recording Resolution and Frame Rate

    • 1920 x 1080 @30fps* • 1280 x720 @30fps *Some low end computers may not be able to handle high video performance.

    Video Recording Format

    • Windows: MP4, WMV
    • Mac: MP4
    • Chrome: WEBM

    Image Format

    • Windows: JPEG, PNG, BMP, TIF, GIF, PDF
    • Mac: PNG
    • Chrome: JPG

    Focus

    • Manual Focus (Factory Calibrated)

    Zoom

    • 4X Digital Zoom

    Field of View

    • F/NO=2.6, FOV =88.16°

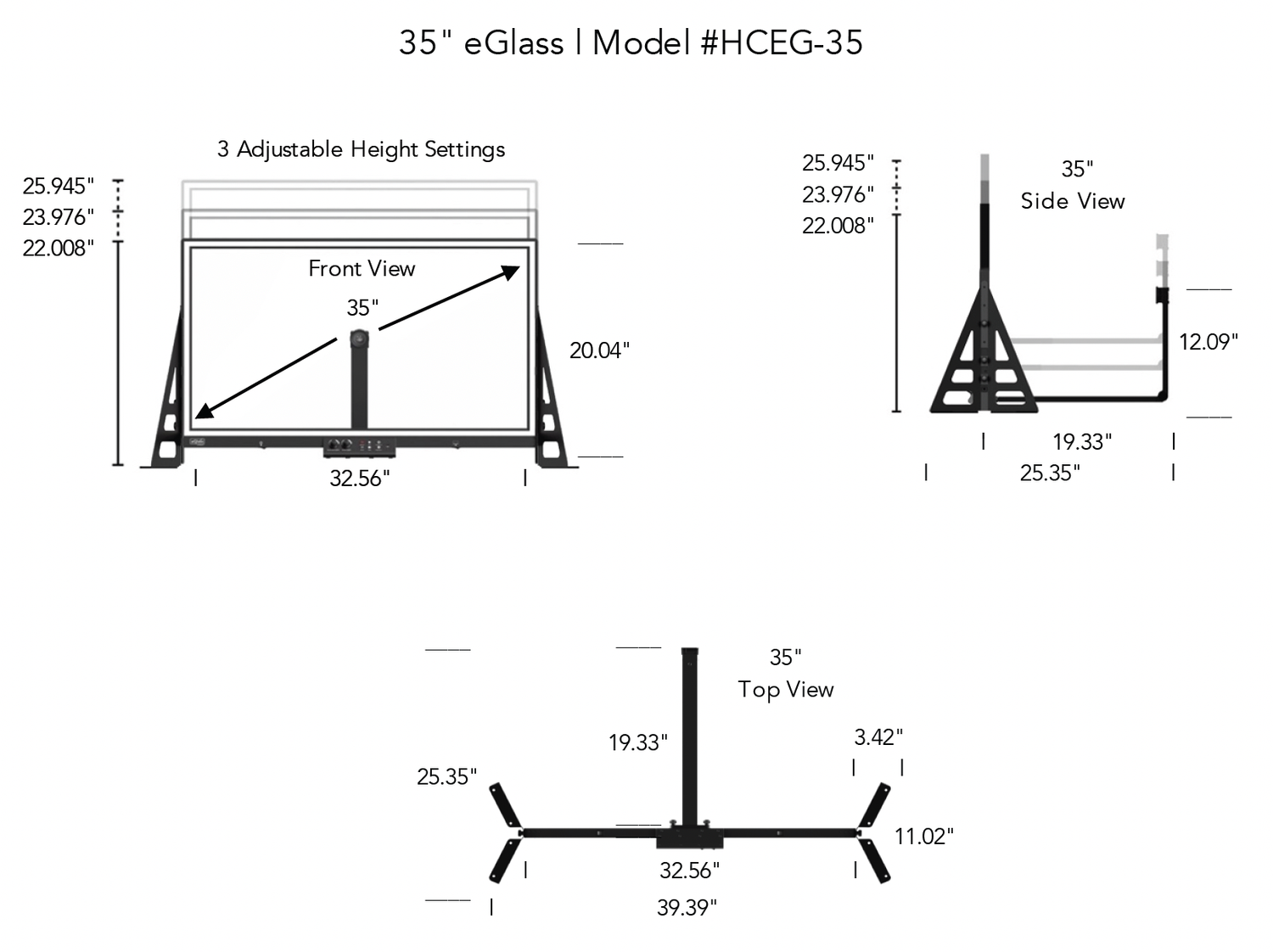

    PHYSICAL SPECIFICATIONS

    Dimensions (L x W with legs installed)

    • eGlass 35" = 39.39" L x 11.02" W
    • eGlass 50" = 52.47" L x 11.02" W

    Adjustable Height Settings

    • eGlass 35" = (Low) 22.008" - (Med) 23.976" - (High) 25.945"
    • eGlass 50” = (Low) 29.37" - (Med) 31.339" - (High) 33.307"

    Camera Arm Length (eGlass Depth)

    • eGlass 35" = 19.33" L x 12.09" H
    • eGlass 50" =27.11" L x 15.77" H

    Weight

    • eGlass 35" - Net Weight (NW) = 22.04 lbs.
    • eGlass 50" - Net Weight (NW) = 44.09 lbs.

    Shipping Weight

    • eGlass 35" = 31 lbs.
    • eGlass 50" = 51 lbs.

    Shipping Size

    • eGlass 35" = 36" L x 7" W x 23" H
    • eGlass 50" = 50" L x 7" W x 30" H

    Operating Temperature

    • 20°C - 65°C

    Certifications

    • CE, FCC, ROHS
    • Warranty: 5 year parts and labor included.
