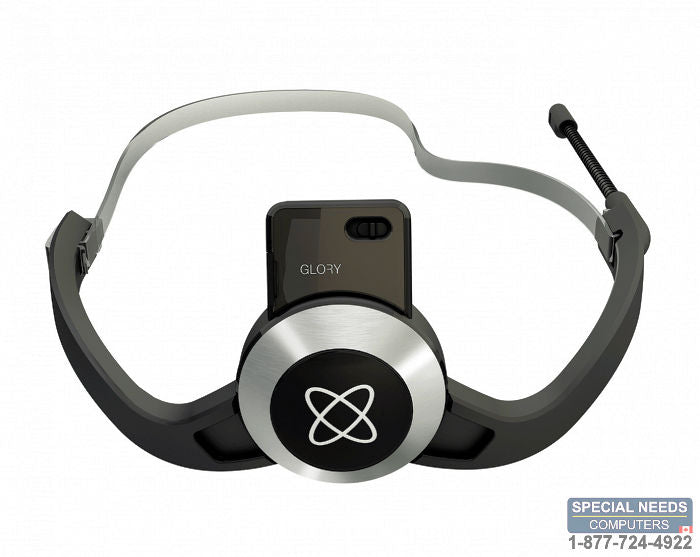

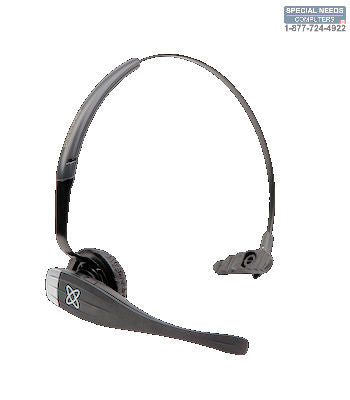

Gyroset Vigo is a wireless, proportional head controller for powered wheelchairs

Gyroset Vigo is a wireless, proportional head controller for powered wheelchairs that can also be used as a computer head mouse.

GyroSet Vigo

Meet the future of wheelchair head control. Gyroset Vigo is a wireless, proportional head controller for powered wheelchairs that can also be used as a computer head mouse.
Giving back mobility to patients with:

• Spinal cord injuries
• ALS
• Quadriplegia
• Muscular dystrophy
• Multiple Sclerosis
• and many more.

MAIN FEATURES

• The smoothest proportional head control available on the market
• Wireless Bluetooth technology
• Computer mouse mode is available now!
• Extremely short training period required
• Customizable settings (all angles and sensitivity) for each individual’s needs in the free software
• Built-in emergency stop functions
• Up to 14 hours battery life

DRIVE OVERVIEW

• Compatible with PG’s OMNI, OMNI 2 and IOM Module, Invacare/Dynamic’s new Linx system, and Quantum‘s Q-Logic 3 EX Enhanced Display or SCIM Module
• Super sensitive – use it even with the smallest head movements
• Works with any external switch you prefer, but our Headrest Sensor is included in the kit
• Re-calibrate neutral position any time
• Access seating, speed and profile menu with the infrared sensor, adjust each setting easily
• Activate – deactivate drive mode easily

MOUSE MODE

• Compatible with any device that supports USB HID, including MAC, WIN, Android, and iOS computers and tablets
• Switch easily between drive and mouse mode
• Clicking made simple and hygienic with the infrared Gesture Sensor, just wink or move your cheek
• Free software available from our website
• Quick and effortless typing with the virtual keyboard
• Connect to multiple devices with additional BLE dongles (coming soon)

TECH SPECS

• Compatible with PG’s R-Net controller (via the OMNI Speciality Control Interface or IOM Input/Output Module), Invacare/Dynamic’s new Linx system (via the DLX-IN500 input module), and Quantum‘s Q-Logic 3 EX Enhanced Display or SCIM Module
• Can be connected via our Gyroset™ Link interface and Cubo Bluetooth receiver and display (both included in the box)
• Visual (LED) and audio feedback
• Connect any external switch via 3.5mm jack plug
• Battery life: up to 14 hours
• Weight: 17 grams
• 6 axis sensor array
• USB charging

Certificates

• TUV: Certificate according to a medical device for the GyroSet Link
• CE: Marking issued on all the separate components (Link, Cubo, USB Dongle)
• FDA: Approved
• MDR compliance: In progress

FAQ

Where is the Vigo being manufactured?
All of our products are being developed and manufactured in Europe, according to strict EU regulations.
What can I use the Vigo for?
We’ve developed the Vigo to allow users to drive their powered wheelchairs. It also allows the users to access the OMNI’s menu and change seating, profile, or speed settings. It works as a head mouse for computers and tablets, a Bluetooth headset for smartphones*, can control smart home applications through the tablet/computer and robotic arms (ie: Kinova’s Jaco arm) through the OMNI.
*Please note this will significantly shorten battery life.
What is included in the Vigo kit?
All necessary components for the drive and mouse mode are included in the Vigo kit.
What chairs is the Vigo compatible with?
The Vigo is compatible with PG’s OMNI, OMNI 2 and IOM Module, Invacare/Dynamic’s new Linx system, and Quantum‘s Q-Logic 3 EX Enhanced Display or SCIM Module. Any chairs with those modules can be controlled by the Vigo.How long is the battery life?
The Vigo has up to 14 hours of battery life*. This means you can drive all day and have it put on the charger when you’re charging the chair at the end of the day.
*Please note using the Vigo as a headphone for smartphones via Bluetooth will significantly shorten battery life.
How can I charge it?
The Vigo has a micro USB port for charging. You can connect it to a wall plug, your wheelchair (if it has a USB port), a computer or a power bank.
Can I charge it on the go?
Technically yes. In practice we don’t recommend it though, since the cable can be disturbing while driving, or can get strangled and fall off.
Is the Vigo a good choice for me/my patient?
The Vigo has no age limit. The headband can be adjusted and we have users as young as 8, and some above the age of 80.
The Vigo could be the right choice for anyone who can’t use their hands properly, but has some movement and control of his head. Users must have minimal mobility of their head, no matter how small or asymmetrical (the sensitivity of the headset is customizable in all 4 directions by our free software).
Some examples include but are not limited to spinal injuries, tetraplegic people, ALS, muscular dystrophy, spinal nerve shrinkage, spinal atrophy
How does the Vigo connect to the chair?
The Vigo is using a Bluetooth connection.
How do I know if drive mode is active, or whether I’m in mouse or drive mode?
The Cubo screen displays all the necessary information.
How does the Vigo work?
The Vigo is a 4-way proportional headset that is using a gyroscope. It translates very tiny head movements for the chair.
What does proportional mean?
The bigger the head movement the faster the chair will drive.
How do I drive with the Vigo?
You can watch a tutorial about the drive basics here.
By tilting the head. Tilting forward – the chair will drive forward, tilting backwards – the chair will drive backwards, and the same is true for left and right movement.
Turning your head won’t affect driving, this way you can look around at the pedestrian crossing, without moving the chair.
How do I set the neutral position?
You can see it in this video. The headset calibrates neutral position every time someone activates it by tapping the Headrest sensor (or pressing the preferred external switch). There’s a 3-second* countdown before the drive mode becomes active, during this time you should hold your head still in the preferred position.
This way the user can calibrate a new neutral position for himself as many times as necessary during the day, without having to rely on the caretaker.
*The length of the calibration time can be adjusted in the software.
How do I re-set the neutral position?
Simply deactivate and activate the headset again.
How can I use it as a computer mouse?
You can watch the step by step tutorials explaining everything here. Simply download the GyroSet Mouse software from our website and plug in the USB dongle.
Is the Vigo safe?
The Vigo has been developed with several built-in safety features, and the users’ safety was our main priority when developing the product. We also have CE, TUV certificates, FDA approval and the MDR compliance in progress.
What happens if the user is having a seizure or faints?
The chair will stop moving immediately. If it was a false alarm the user can simply activate the drive mode again by tapping the Headrest sensor (or pressing the preferred external switch).
What happens if the headset falls off?
The chair will stop moving immediately. If it was a false alarm the user can simply activate the drive mode again by tapping the Headrest sensor (or pressing the preferred external switch).
Can I use another external switch or buddy button for the Vigo (instead of the Headrest Sensor)?
Yes. The Vigo works with any external switch that has a 3.5mm jack connection.
Can I turn off the Gesture Sensor?
Yes. The Gesture sensor can be turned on and off in the GyroSet Drive software by a professional. (Software is password protected for safety reasons, contact your local dealer to have it adjusted for you)
Please note this way you won’t be able to access the OMNI menu to change settings.
What certificates/documentation does the Vigo have?
The Vigo is FDA approved, has CE certificates (for all components), TÜV certificate and we’re currently working on the MDR compliance (expected finish: June).
Can I drive while resting my head on the Headrest sensor?
Some of our users are driving long distances while they’re resting their heads on the Headrest sensor, so in practice it’s possible, although we do not recommend it. If you want to do so we recommend setting up the Headrest sensor slightly on the side of the headrest, instead of the middle.
Can I mute the Link?
Yes, simply tap the LED touch interface and the calibration sound will be muted. You can turn the sound back on the same way.

Videos

How to set up the Gyroset Vigo as a Head Mouse: In this video, we’re going to show you how you can set up the Gyroset Vigo Bluetooth headset as a head mouse for computers.

How To Use The Gyroset Vigo as a Head Mouse: In this video, we’re going to show you how you can use the Gyroset Vigo Bluetooth headset as a head mouse for computers.

Gyroset Mouse Toolbar Functions: In this video, we’re going to introduce you to the sidebar functions of the Gyroset Mouse software, which enables users to use the Gyroset Vigo Bluetooth headset as a head mouse for computers.

How to Customize The Vigo Mouse Settings in The Gyroset Mouse Software: In this video, we’re going to show you how you can customize the Gyroset Vigo head mouse settings for a better user experience in the Gyroset Mouse software.
How to Switch Between Drive and Mouse Mode: In this video, we’re going to show you how you can switch between powered wheelchair drive mode and computer mouse mode with the Gyroset Vigo Bluetooth headset.
