Durable Foot Switch - XK-A-75-R

X-KeysSKU: XK-A-75-R

Sale price$89.99

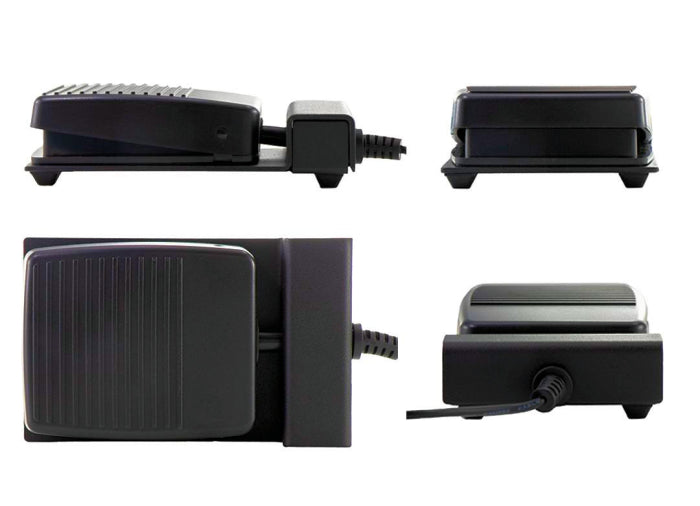

The X-keys Foot Switch offers an inexpensive yet durable foot switch to work with our X-keys USB Switch Interface. The front hinged version allows the user to rest the ball of their  foot on the main pedal and activate the control with slight additional pressure. This is  perfect for mouse click, key press, or other operations where a momentary activation is  required.

  • 3 1/2" by 3" pedal
  • Made of heavy-duty ABS plastic
  • Pressure activated switch with auditory click
  • Activation force: 1.6lbs – 5.5lbs (.7 - 2.5kg) depending on distance from hinge
  • Cord length: 110" (2.8m)
  • Black with anti-slip ribs
  • Mounting: non-skid base
  • Rugged design for Assistive Technology application
  • Pressure activated switch with auditory click
  • Made from heavy duty ABS plastic
  • Black with anti-slip ribs
  • Mounting is a non-skid base
  • Switch Type: Microswitch with audible click, guaranteed for over 1 million operations
  • Actuation Force: Approx. 1.6lbs. – 5.5lbs (.7 - 2.5kg) depending on distance from hinge
  • Connector: Wired standard 3.5mm (1/8") mono plug
  • Cord Length: 103” (2.6 m)
  • Voltage: Less than 30 volts
  • Current: Less than 1 Amp

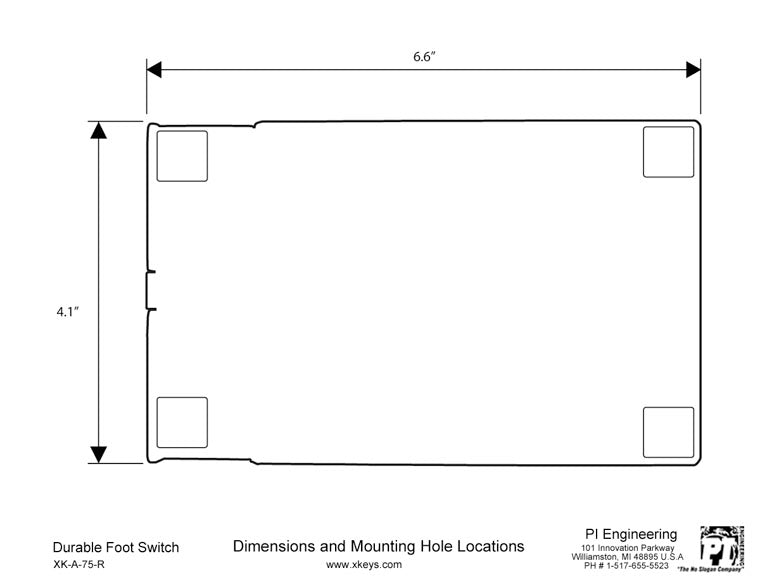

  • Dimensions: Approx. 8.1” x 5.5” x 1.6” (205.7mm x 139.7mm x 101.6mm)
  • Weight: 0.25 lbs. (100 g)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: RoHS, WEEE compliant
