The EVAC+CHAIR®, 500H is a high-performance bariatric patient transport chair that permits the safe egress of mobility impaired persons from a multi-story building or a confined space. When it’s unsafe to use an elevator in the event of an emergency or evacuation, this chair is the perfect solution. Designed to provide a safe and easy experience on steep stairs between 28°- 45, the enhanced EVAC+CHAIR® 500H model is a single-person chair with a weight capacity of 500 lbs. Additionally, this bariatric patient transport chair comes with a lifetime warranty because we’re so confident that our products are the best in the industry. No matter the situation, our commitment to your satisfaction is second to none.

Used for downward evacuation
Only requires single person to operate but has guiding handles if two are assisting
Similar to 300H but can hold more weight, meant for larger humans
Weight capacity 500 lbs.

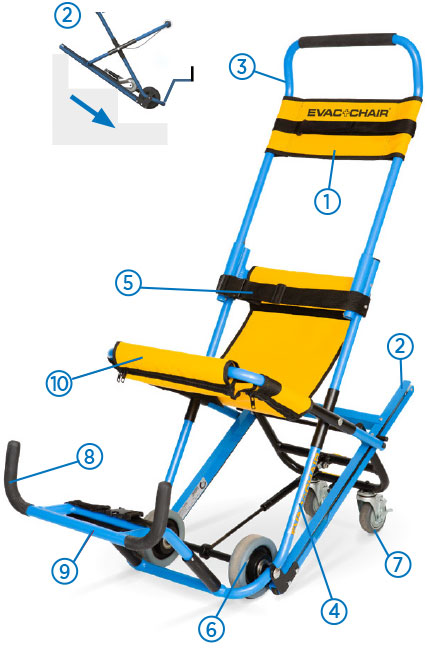

Features

Adjustable patient head restraint: Limits movement, securing the passenger in place
Friction tracks (Evac+Track technology): The self braking reinforced tracks control speed of descent for easy single person operation
Ergonomic adjustable handle: For ease of deployment and compact storage
Reflective decals: For easy location in situations of poor visibility
Quick release safety belts (Head, Chest, Thigh): For increased passenger safety and security
Heavy duty wheels: Ideal for operation over uneven terrain
Lockable rear wheels: Can be applied in situations where the chair needs to remain in a stationary position
Fold away grip handle/footrest: For use with 2 person operation for added stability
Footrest: For passenger comfort during transportation

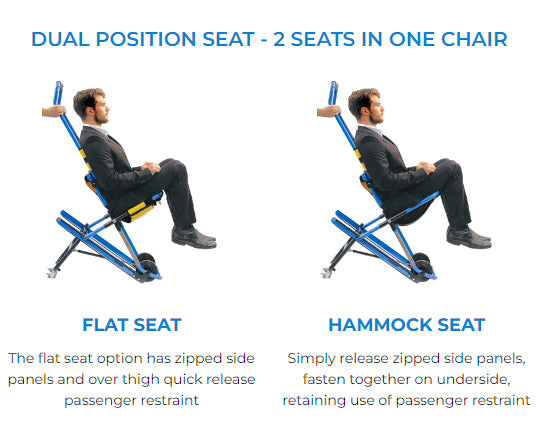

Dual position seat: Dual position seat allows the user to decide each time which seating position they desire

Benefits

Designed in the USA
FDA Registered
Provides a quick, easy and safe emergency evacuation
Easy to use
One or two person operation
Lightweight
No heavy lifting required
Enables small attendants to easily move passengers three times their size
Easy to open, ready to use in seconds
Folds for compact storage
Exceeds fire safety requirements and emergency response
guidelines established to support the Americans with Disabilities Act
Wall mountable

Includes

LIFETIME WARRANTY
4 Passenger Safety Belts (Head, Chest, Thigh, Foot)
Photoluminescent Signage
Wall Mounting Brackets
Dust Cover
User Guide

Height: 45 inches
Width: 20 inches
Depth" 9 inches
Weight: 29 lbs.
Weight Capacity: 500 lbs.

OUR LIFETIME WARRANTY

EVAC+CHAIR North America LLC makes no other warranty or representation expressed or implied except for the terms herein.
EVAC+CHAIR™ offers the original purchaser a lifetime product warranty, ensuring it is free from manufacturing defects affecting the reasonable operation of an EVAC+CHAIR™.
This warranty constitutes EVAC+CHAIR™’s entire warranty offered in respect to its evacuation chair models purchased in 2015 or later and covers no other products sold.
Warranty claims exclude expendable parts which are covered for a period of two (2) years. Expendable parts are those parts which are routinely replaced during inspection, repair or maintenance, as detailed in the EVAC+CHAIR™ maintenance guidelines.
An expendable parts list can be found at: https://evac-chair.com/expendable parts
EVAC+CHAIR™ reserves the right for the original purchaser to return parts or products at their cost in order for a warranty claim evaluation. Any claims processed that are found not to be a manufacturing defect, EVAC+CHAIR™ is entitled to charge the customer in full for the repair/maintenance of the product.
Damage caused by vandalism or any unauthorized repair/alteration by user or any unauthorized service provider are expressly excluded and will void this warranty.
There is no warranty of merchantability and there are no warranties of fitness for any particular purpose.
In no event shall EVAC+CHAIR™ be liable for incidental or consequential damages arising from or in any manner related to sales or use of any such equipment.
This warranty is expressly limited to supplying replacement parts at the sole discretion of EVAC+CHAIR™ which are found to be defective.
No employee or representative of EVAC+CHAIR™ is authorized to change this warranty in any way.
All warranty claims must be made by the original purchaser in writing to EVAC+CHAIR™ North America LLC within 7 days following discovery of a basis for warranty claim.

V1.3 08/04/2020
