Description
Qinera Enabler Phone.
Make phone calls with a hands-free phone
Enabler Phone allows you to control a hands-free phone remotely by using our controllers or locally using your favourite switch. You can make calls with the speed dial function or digit dialing, as well as answer and hang up in an autonomous way. Speak with whoever you want as much as you want!

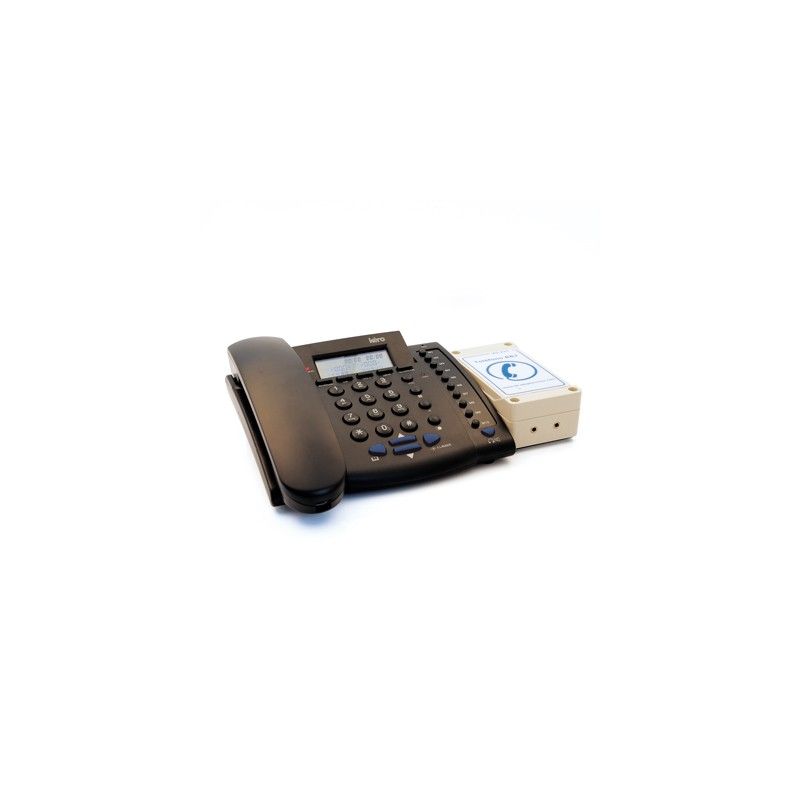

Enabler Phone is based on two elements: a phone with a hands-free speaker and the Enabler which allows wireless control.
This device is part of our environmental control solution.
Suitable for
- Physical disabilities: spinal cord injuries, multiple sclerosis, ALS, neuromuscular disorders...
- Cerebral palsy
- Brain injuries: ictus, traumatic brain injury...
Features
- Supply voltage: 230 VAC.
- Controllable with our remotes.
- Two switch inputs for 3.5 mm mono jack plug (female).
- Size: 220 x 190 x 50 mm.
- Radio Frequency 433 MHz.
- Part of our environmental control solution.
- Plug and play. No installation needed.
- 10 codes of direct dial to stored numbers.
- Digit by digit dialing also possible.
- A switch input to answer and hang up calls.
- A switch input to place a direct call to a memorized number.
- To control a second phone in the same system ask for the reference BJ-231B.
Compatible with switch: Please ask us if you want to have your own hands-free phone adapted.
Application Tips
- Activate it remotely with any of our controllers.
- Make calls by dialing the numbers stored in any of the 10 memories on the phone or make calls by dialing each number of any telephone number.
- Answer calls and hang up at any time.
- Dial digits during an active call to perform control functions on switchboards or other automatic systems (DTMF), such as dialling an extension.
- With the radiofrequency system the signal overcomes walls and obstacles.
Equipment Description
This product allows hands-free control of a phone using any of the BJ System controls.

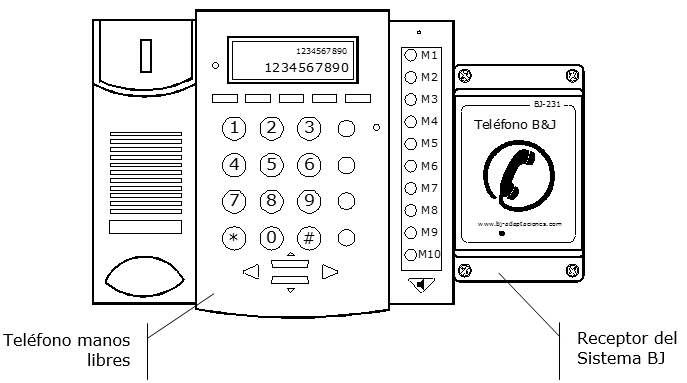

It is composed of two elements: a hands-free telephone model KERO KET-37HS and a receiver belonging to the BJ System, specific for this telephone (Fig. 1).
Fig. 1. B&J Telephone.
Tip: There is a wide range of switches and controls to operate this receiver, please see our catalogue.
Functionality
In addition to the phone's own functions, as indicated in its instruction manual, and using any of the BJ System controls, you can control the phone wirelessly.
The functions available in that case are:
- Make calls by automatically dialing numbers stored in any of the phone's 10 indirect memories .
- Make calls by dialing any phone number digit by digit.
- Answer calls made to your phone.
- Hang up a call at any time.
- Dialing digits during a call to perform control functions on switchboards or other automatic systems (DTMF), such as dialing an extension.
Equipment Assembly
To install the equipment, both the BJ System receiver connections and the telephone connections must be made:
Installing the BJ System Receiver
To install the receiver, simply plug it into a 230V AC socket. The connection specifications of the receiver are indicated on the equipment's nameplate.
IMPORTANT: For the telephone to work, it is essential that the receiver is plugged in. Otherwise, the telephone will be blocked. The indicator light on the equipment indicates that the receiver is connected.
Installing the phone
To install the telephone, follow the instruction manual supplied with the product. It is important that the telephone handle is correctly connected to the telephone base and that the base is connected to the telephone line.
For correct operation, the power supply supplied with the product must be connected.
IMPORTANT: If you want the numbers stored in the phone's memory to not be erased in the event of losing the line, the 4 rechargeable batteries supplied with the product must be installed in the compartment on the bottom of the phone. Use only 1.5V, AAA type rechargeable batteries.
Whenever you connect or disconnect batteries, the phone must have the telephone line disconnected.
Declaration of Conformity
This product complies with the requirements set out in European Directives 89/336/EEC and 73/23/EEC.
The declaration of conformity can be downloaded from the following link: BJ-231_conformidad.pdf
