Description

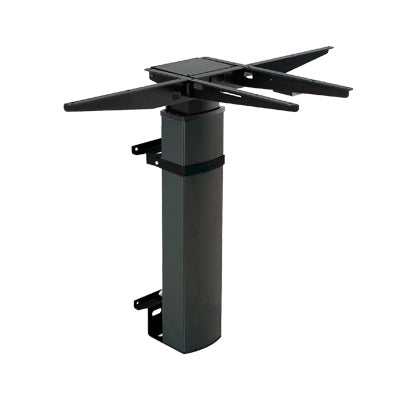

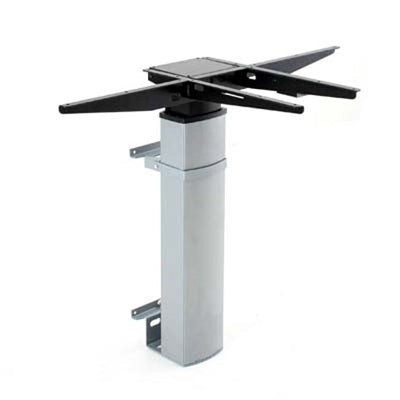

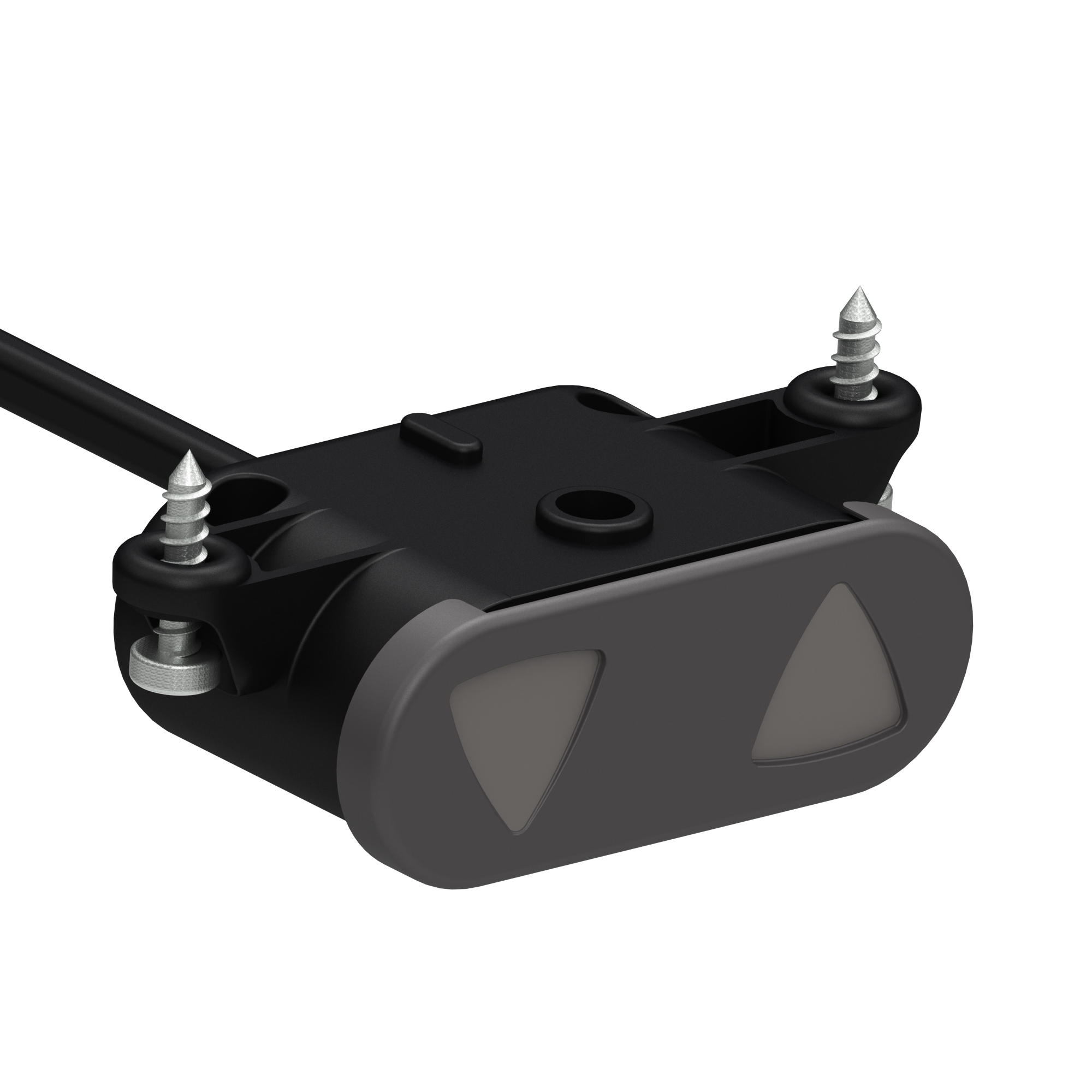

501-19 WALL is delivered with tabletop support and control panel — ready for plugin.
You can mount either of the two top support brackets.
Bracket A supports the following top sizes:
- Minimum top measurements: 95 x 55 cm
- Maximum top measurements: 140 x 100 cm
Bracket B supports the following top sizes:
- Minimum top measurements: 55 x 25 cm
- Maximum top measurements: 100 x 60 cm

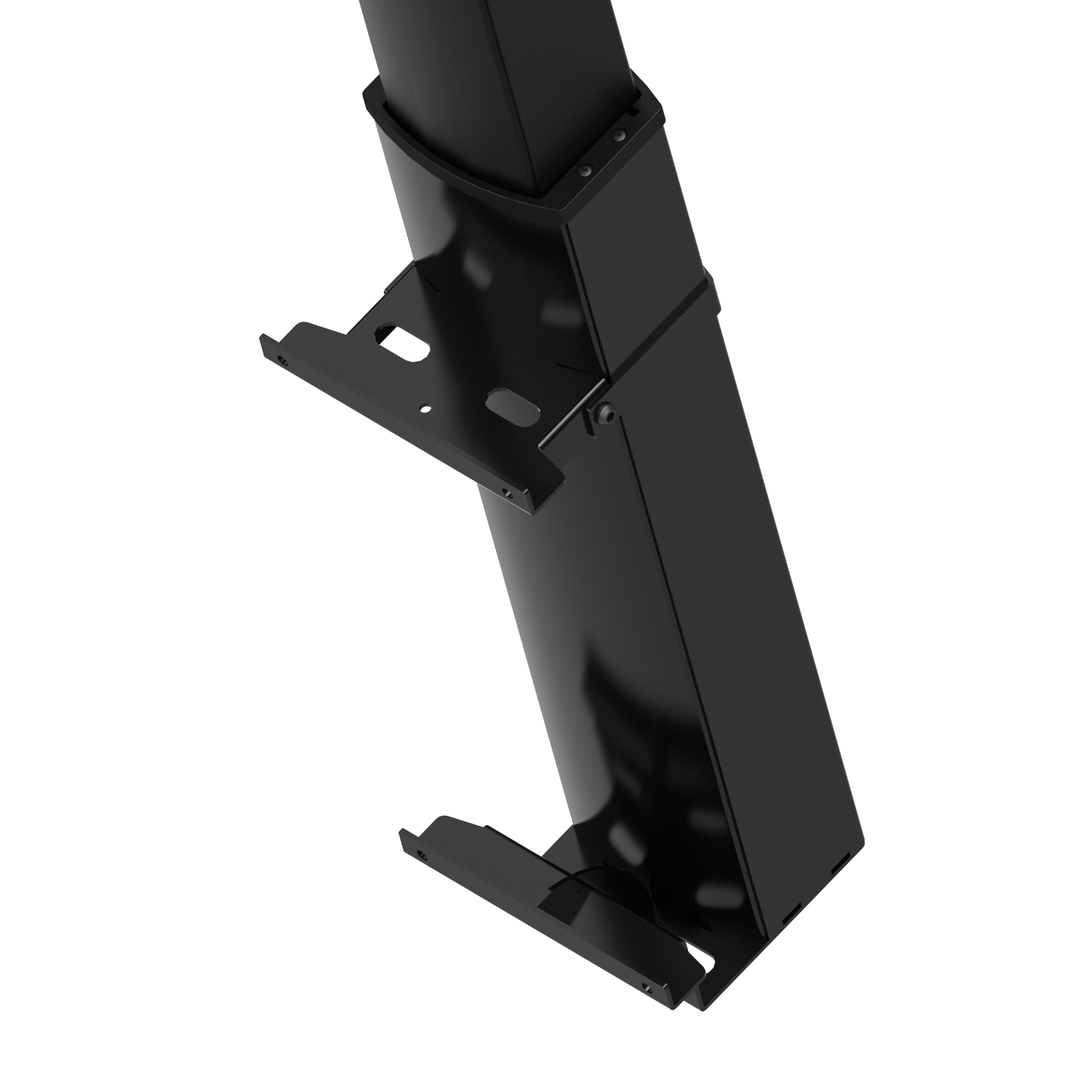

Please note that some wall-types might need additional brackets to even out the load. The 79 mm between column and wall allows for mounting a cable tray.
