Description

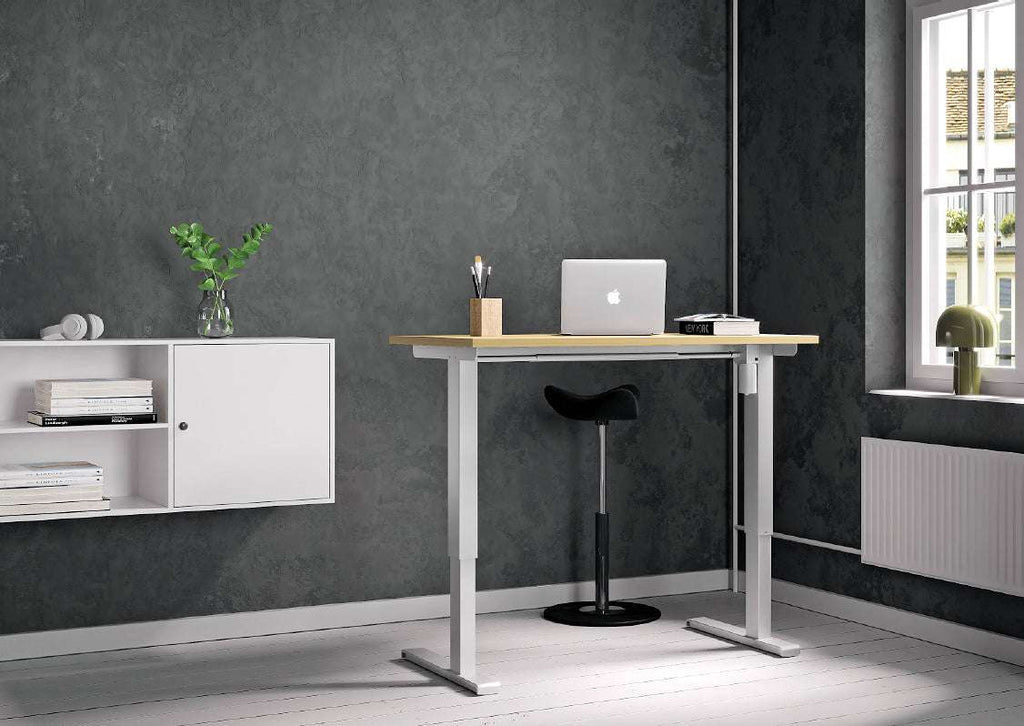

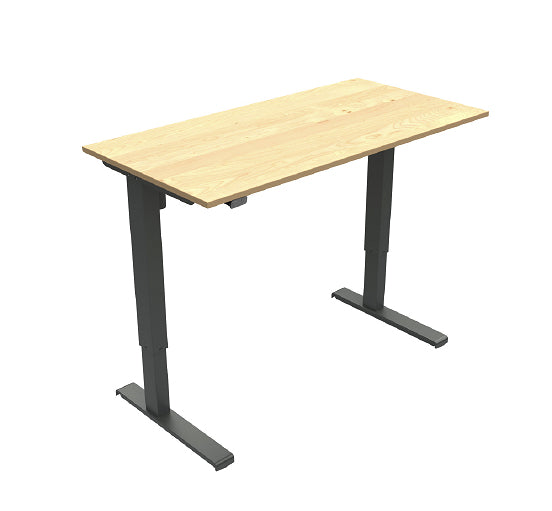

Conset Electric Wheelchair Desk - SQ153700-48" x 30"
The new normal in sit stand desks. Reliable single motor systems tested by TUV. 20 years of dedicated pioneer work with electric height adjustable desks. Height range 26.5 to 47".
- The electromotive, height-adjustable tables are designed for workstations in dry work environments only (0-40°C; 20-90% relative humidity).
- The table height is infinitely adjustable, so that it can be set to the most ergonomically suitable working level:
- They have not been designed for other purposes than those included in this manual, e.g. they are not to be used in areas of high humidity or dampness, nor for lifting people. Any other use is at one's own risk!
- Do not crawl, lie or move around under the table frame, and do not sit or stand on the table frame.
- CHILDREN should only use the table when supervised by adults.
- Liability - The manufacturer/SNCS accepts under no circumstances warranty claims or liability claims for damages arising from improper use or handling of the table frame other than that described in this operation manual.
Set up and installation
- When the table has been assembled (see assembly instructions in CHAPTER 8) the adjustable feet are installed so that the table is level and does not shift. Then the table is connected to the 100-240 VAC outlet and the table is ready for use.
- Make sure that no cables can get jammed.
- Place the table in a safe distance from window frames, radiators, furniture etc. so that people do not get stuck.
- Do not place any objects above 21" (55 cm) underneath the table.
- When moving the table after it has been assembled, the tabletop needs to be removed. The table CANNOT be lifted by the tabletop. The desk need to be lowered to minimum height before moving.
Operation
- UP/DOWN operation: Push the buttons for operation up or down
SPECIFICATIONS & STANDARDS
- Speed 1"/sec
- Load capacity on frame: 154 lbs.
- Low power consumption
- Tabletop in double sided maple MFC with Ye" ABS edges
ANSI/BIFMA X5.5 2014 tested and approved by Intertek
- EN527-1 & EN527-2 tested by TUV, Germany
- CE electric certificates by TUV, Germany
- CE mechanical certificates by Danish Technological Institute
- UL certified Power Supply Unit (PSU)
- RoHs / CARB2
Safety and warnings
- This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and table.
- Please read the operation manual prior to start using the table. It provides you with important information about safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding damage on the table.
- Please guard this operation manual and pass it on to any future owner!
Note: Two shipment (base and top (Freight)).
