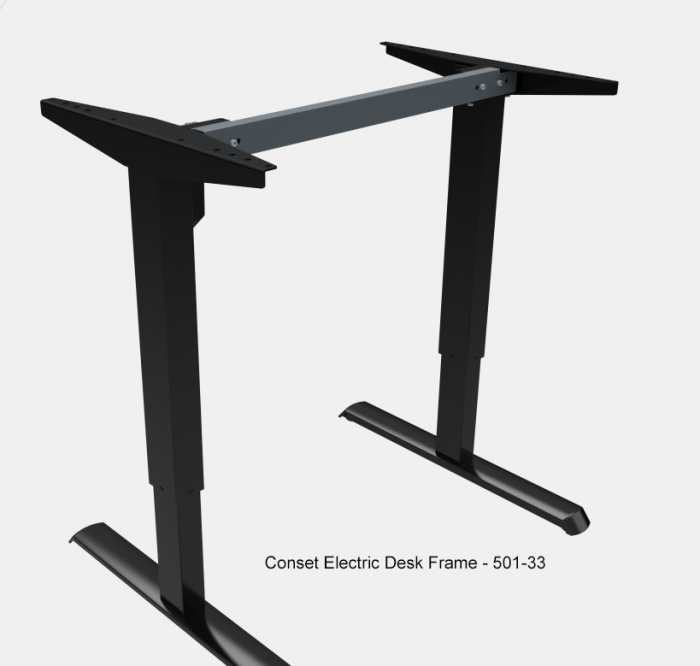

Conset Electric Desk Frame - 501-33

CONSETSKU: 501-33 8B092

Contact Us for Pricing


Frame designed for modern simplicity. Its exterior reflects its interior. What you need and no more.

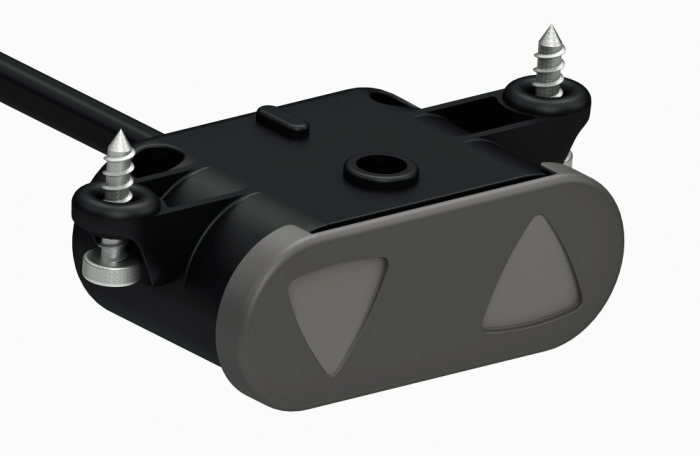

Built-in multi drive increases the frame's usable lift capacity. Operation with logically designed single-pressure rocker switch.
Everything you need is here. Quick and easy assembly of frame. A complete unit at an affordable price.


The castor set consists of 4 turnable wheels - all with wheel locks. The wheels are mounted using the same threaded hole as used for the adjustable glides in combination with 4 reinforcement plates and self-tapping screws following.
Power drill needed.
The size of the wheels (3" diameter) ensures that the table is easy to move.

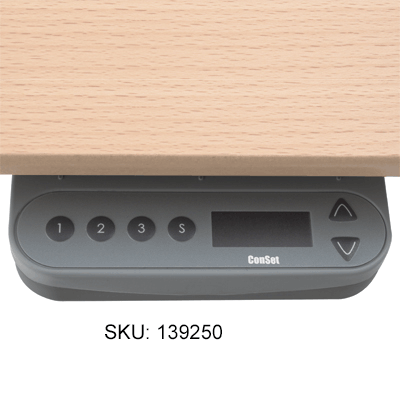

Programmable handset

139250 is a programmable pre-set control panel to adjust the height.
The digital display is showing the approximate table height and movement.
The programmable control panel offers the possibility of three individual users to program their own height settings and even with up to three individual height settings per. user.
At any time you can use the UP/DOWN buttons to adjust the height of the table without affecting the programmed heights
  • Height adjustment: 27" - 47"
  • Lift weight: 176 lbs.
  • Frame width: 82 cm | 32.25"
  • Frame depth: 68 cm | 26 7/8"
  • Certification: ROHS

Frame Colors:
RAL 9016 White
RAL 9006 Silver
RAL 9004 Black
