Description
Aura DCL20 Induction Loop Kits.
DCL20 is an induction loop kit which enables to equip reception desks or counter. This system enables to meet equal opportunity standards and provide accessibility to hearing-impaired people who own a hearing-aid with « T » position.
The provided kit includes the induction loop amplifier, a microphone, a loop, a power block and 3 « adapted for hearing impaired area » stickers. The device includes an audio processing which enables to have an automatic sound recording level enslavement avoiding loud and sudden noises.

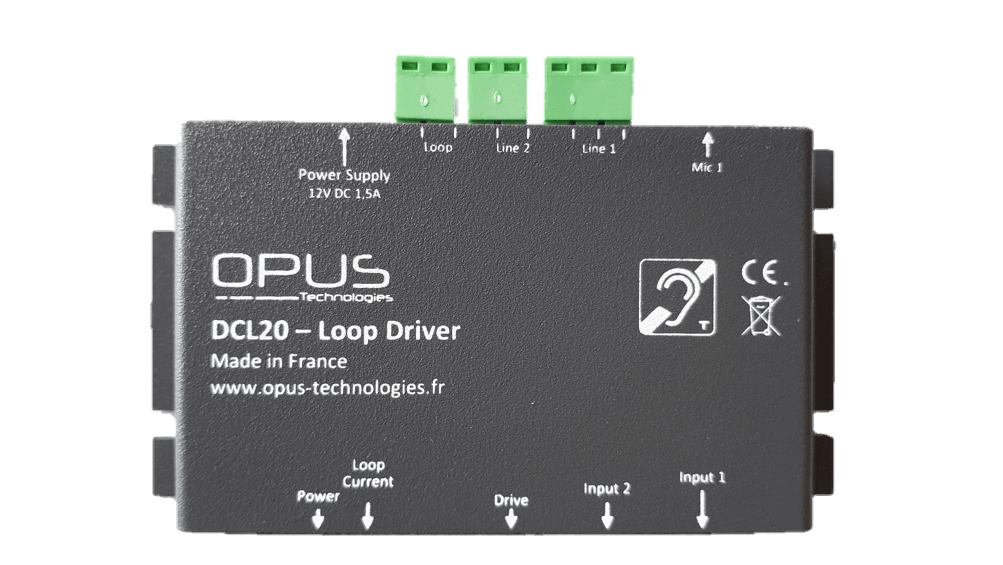

DCL20: The induction loop.
DCL20 is an induction loop kit which enables to equip reception desks or counter. This system enables to meet equal opportunity standards and provide accessibility to hearing-impaired people who own a hearing-aid with « T » position.
The provided kit includes the induction loop amplifier, a microphone, a loop, a power block and 3 « adapted for hearing impaired area » stickers. The device includes an audio processing which enables to have an automatic sound recording level enslavement avoiding loud and sudden noises.
- DCL20 Data Sheet
- DCL20 Manual
- Declaration of conformity

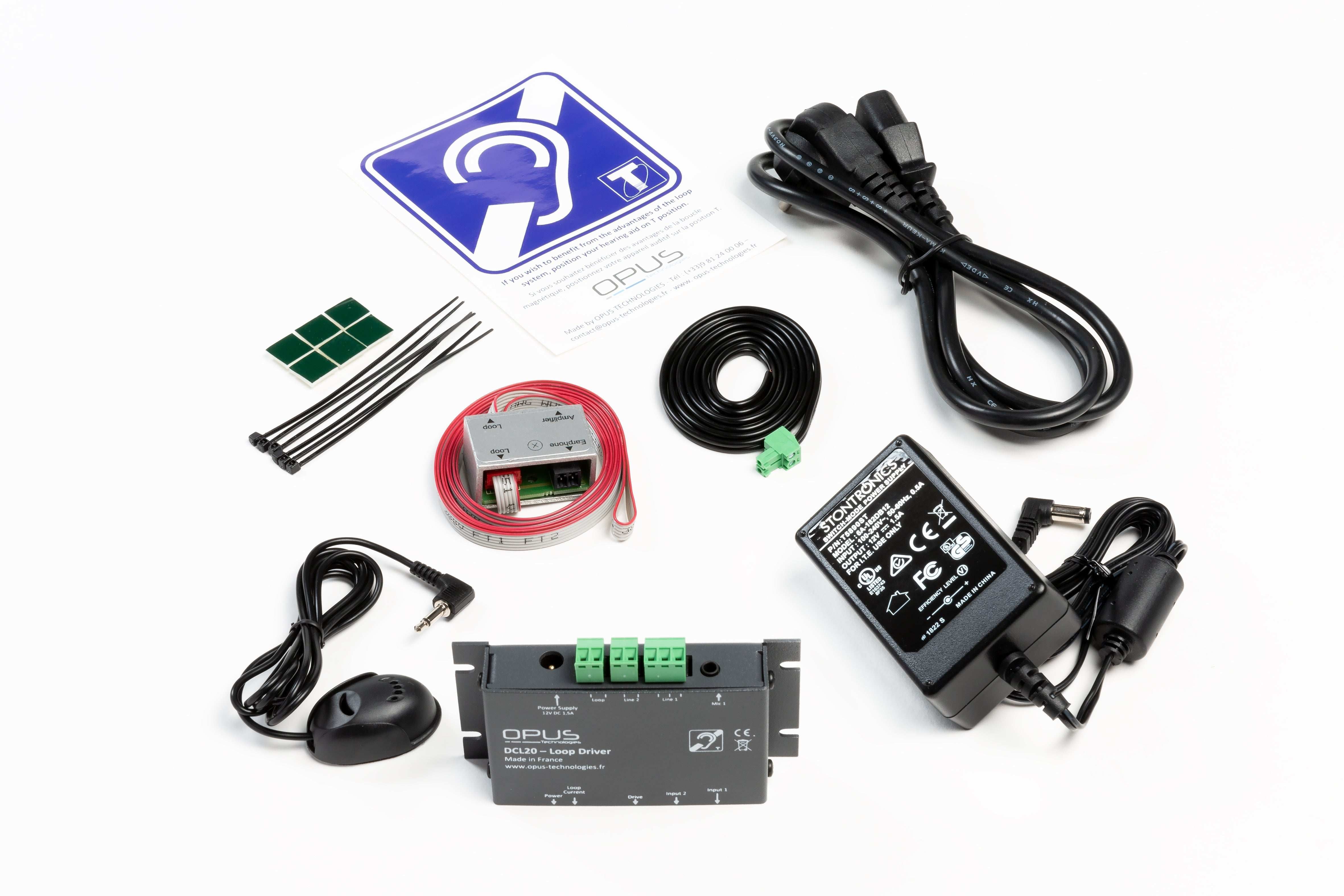

DCL20-K: Induction Loop Kit : DCL20 + micro (OP-M).
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-K is an induction loop kit that can be used to equip counters or reception desks. The set is designed to offer accessibility to hearing-impaired people equipped with a T-position hearing aid.

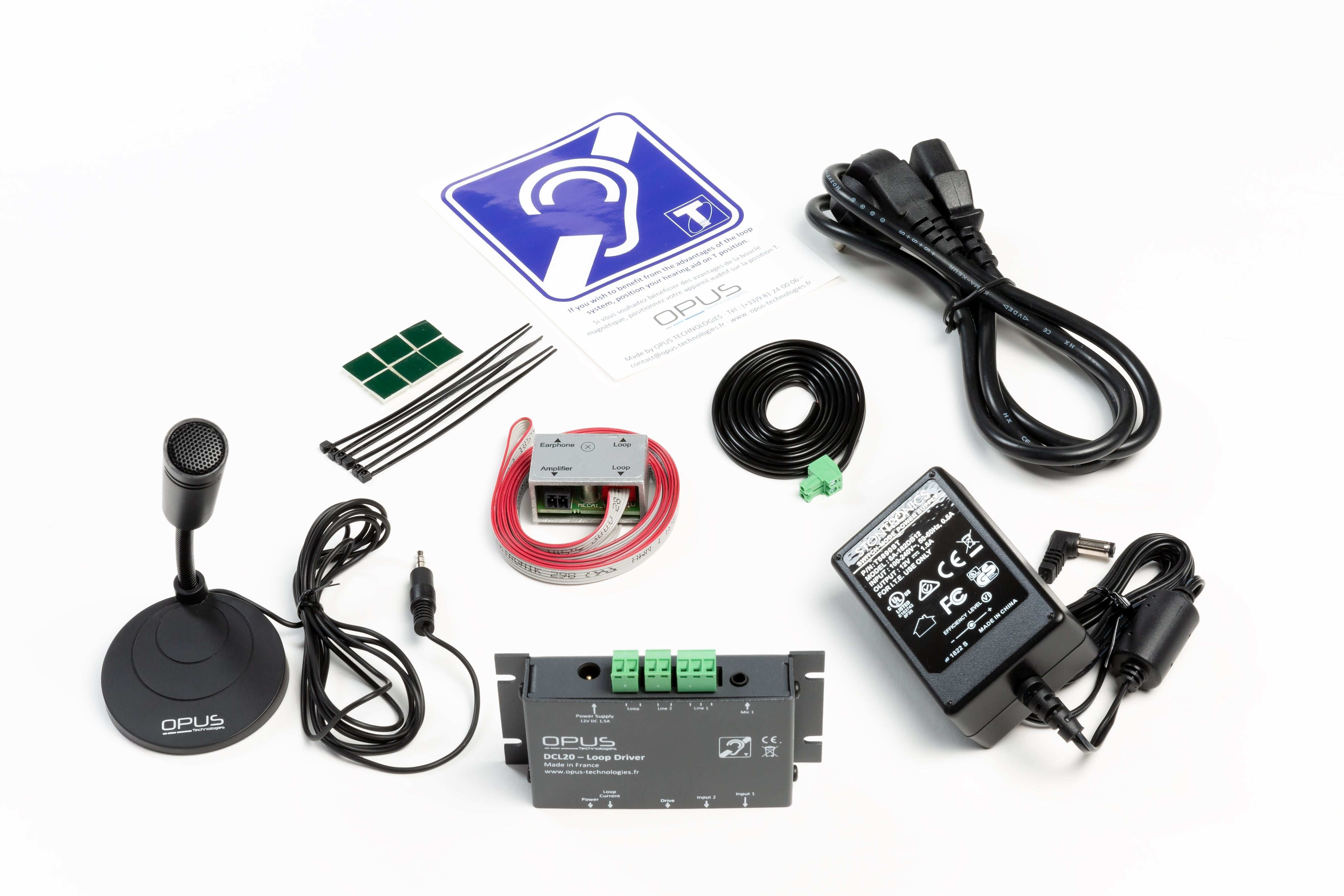

DCL20-K1: Induction Loop Kit : DCL20 + micro (OP-M80)
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-K1 is an induction loop kit that can be used to equip counters or reception desks. The set is designed to offer accessibility to hearing impaired people equipped with a hearing aid with the T position. A gooseneck microphone is included in the kit.

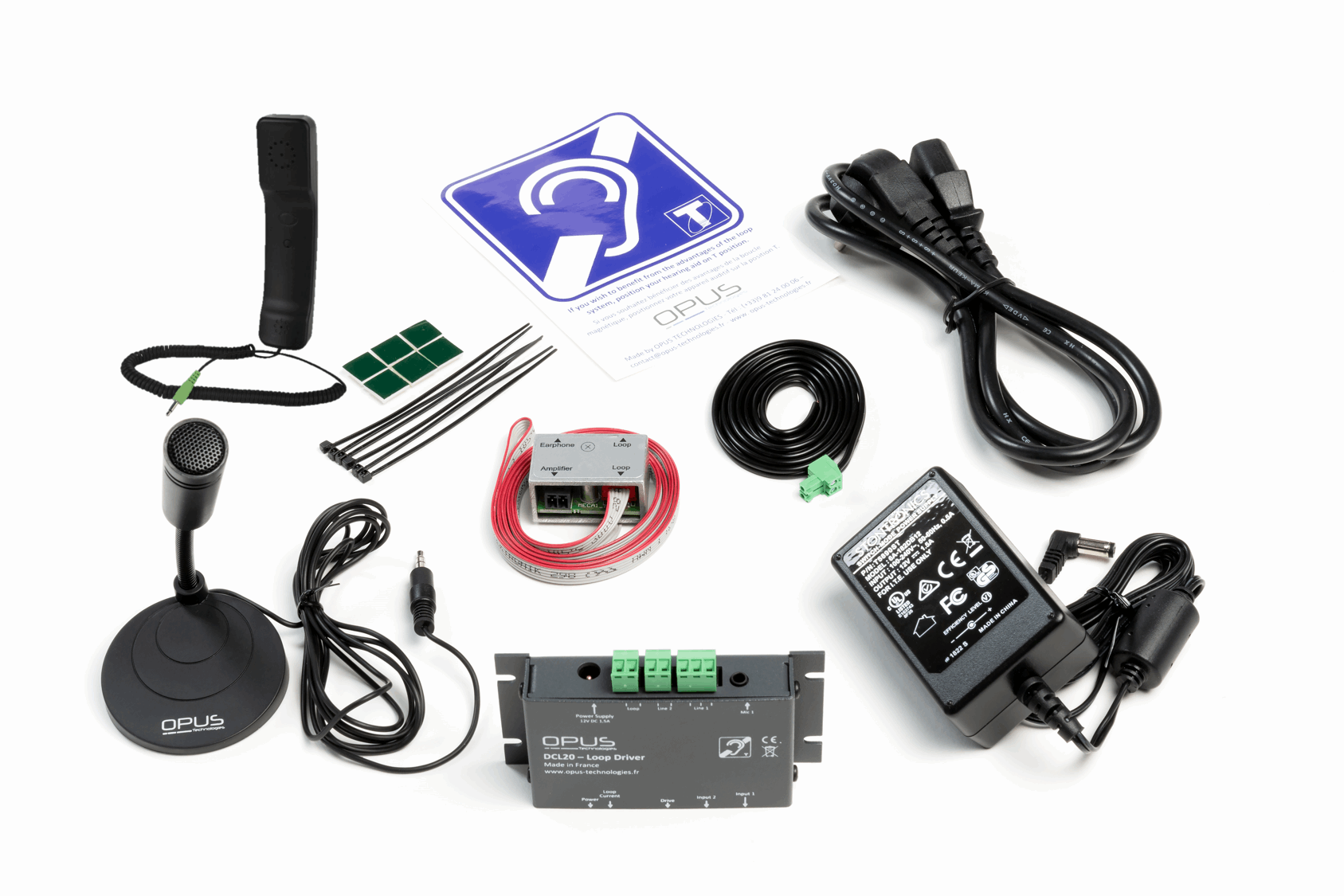

DCL20-K2: Induction Loop Kit : DCL20 + micro (OP-M80) + receiver (OP-E3)
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-K1 is an induction loop kit that can be used to equip counters or reception desks. The set is designed to offer accessibility to hearing impaired people equipped with a hearing aid with the T position. A gooseneck microphone is included in the kit.

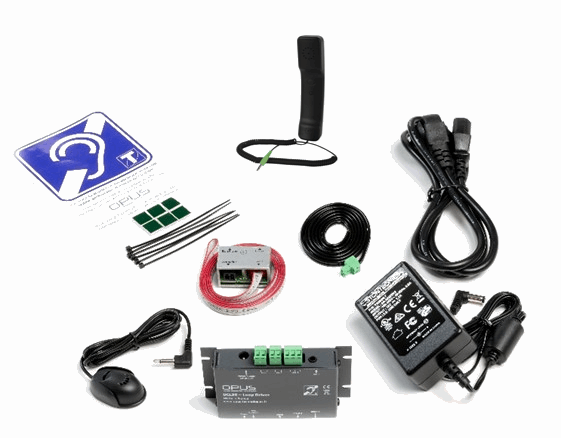

DCL20-E3: Induction Loop Kit : DCL20 + micro (OP-M) + receiver (OP-E3)
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-E2 is an induction loop kit that can be used to equip counters or reception desks. The set is designed to offer accessibility to hearing impaired people equipped with a hearing aid with the T position but also for non-hearing instrument hearing aids though the OP-E2 headphones.
DCL20-WALL: DCL20 + Micro (OP-M) + Pictogram (OP-WALL2)
- DCL20-Wall Data Sheet
- DCL20-Wall Manual
DCL20-PLUG: DCL20 + Micro (OP-M) + Pictogram (OP-WALL2) + Easel (OP-CW2)
- DCL20-Plug Data Sheet
- DCL20-Plug Manual

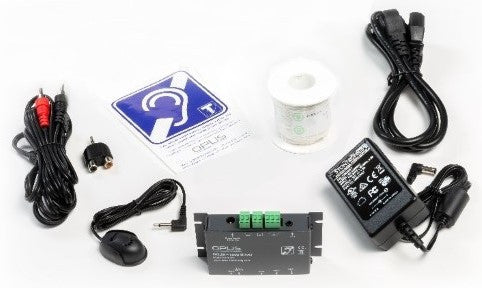

DCL20-SA: Induction Loop Kit : DCL20 + Micro (OP-M) + Coil (LC-ROOM)
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-SA is a induction loop kit that can equip small rooms (50m² rooms). The set is designed to offer accessibility to hearing-impaired people equipped with a T-position hearing aid.

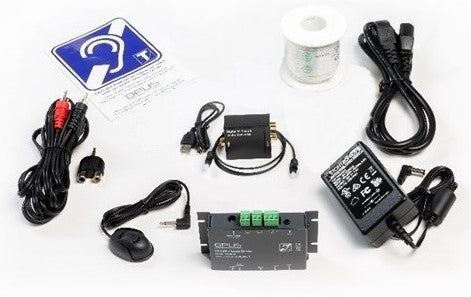

DCL20-TV: DCL20 + Micro (OP-M) + Coil (LC-ROOM) + Adapter (OP-TosLink)
The DCL20 is the ideal equipment for counters or small areas. This audio accessibility kit have been built to be used by people with hearing loss in every public facilities. It has the advantage of being one of the most compact of the market and thus to be integrate in all discretion for an optimal result.
The DLC20-TV is an induction loop kit that can equip TV lounges. The set is designed to offer accessibility to hearing-impaired people equipped with a T-position hearing aid.
DCL20 Specifications
INPUT |
|
| Input | 2 : 1 micro or line input + 1 line input |
| Type | Micro Jack 3,5 mm, terminal block |
| Phantom | 4,5 V 1 mA |
POWER |
|
| Caracteristics | 12 V DC 1,5 A |
| Type | Separated power block |
| Voltage | 230 V 50/60 Hz |
| Power | 20 W max |
| Fuse | Thermal |
| AUDIO PROCESSOR | |
| Compressor | Variable 1:1 to 20:1 |
| Etching | 10 mS |
| Lowering | Automatic 500 mS or 1 500 mS |
| Noise reduction | Limited bandwidth for 8 kHz total gain, 16 kHz – 6 dB |
| Dynamic | > 60 dB |
| THD | < 0,5 % |
OUTPUT |
|
| Type | Current |
| Loop impedance | 0,1 Ohm to 1 Ohm |
| Peak current | 3,5 A |
| RMS Power | 1,5 A to 1 kHz |
| Protection | Termal, short circuit and start |
| SIZE AND WEIGHT | |
| DCL20 | 92 x 52 x 18 mm |
| Packaging | 190 x 190 x 50 mm |
| Weight | 0,850 kg |
Aurora Connect App: AuraConnect makes configuring and managing your Aura By Opus products child's play. Designed to integrate seamlessly with the EasyConfig philosophy, the application makes the complicated simple. Everything is done in just a few clicks, directly from your smartphone.
