Assistive Call For the safe connection of sensors & Buttons on permanently installed call systems

Any sensors and controls can be connected via the two 3.5 mm jack sensor sockets. The control element is automatically recognized and adjusted accordingly.

AssistX Call is an intelligent call system interface and comes with an individual connection to your own nurse call system.

AssistX Call is equipped with 2 AssistX ports. These can be connected to any 2 single
sensors or push buttons or AssistX port compatible sensors. AssistX Call is delivered to
fit the corresponding call system. The power supply, if supported, is provided by the
connected call system. If this is not possible, the power supply is provided by an external
power supply, protected by a backup battery with several hours of runtime.

AssistX Call is a sensor adapter for luminous call systems and enables call triggering using
special sensors (call triggers) which cannot be connected directly to the call system.

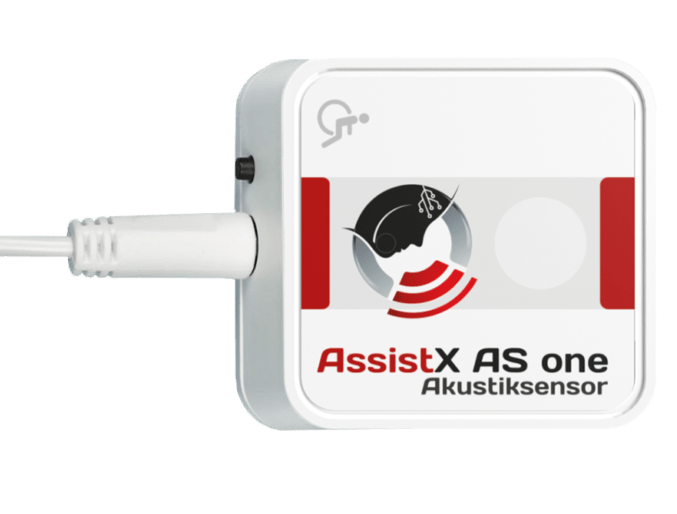

For example, with AssistX Call the proximity sensor AssistX ProX, acoustic sensor AS
one, sip-puff encoder Pneumax, infrared receiver AssistX IR one, or various push buttons,
including large sized push buttons, can be used to call for help.

AssistX Call is powered by the call system or an external power supply. In both cases,
the device works even in the event of a power failure in the network. When powered by
an external power supply, the built-in lithium-polymer battery ensures full functionality
for a few hours in case of power failure.

The device is individually configured for different call systems and delivered with a connection cable pre-configured to the call system.
