Description
Voice Tracker 1 Array Microphone in Canada.

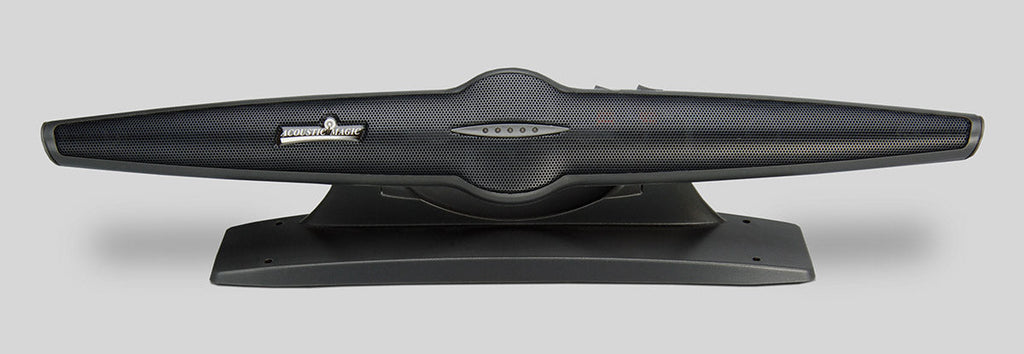

The Voice Tracker™ I Array Microphone was the original implementation of our patented, automatically and electronically steering, “listening beam” technology. It has been in production since 2002, and has proven to be extremely rugged and reliable.
The Voice Tracker I scanning beamforming array microphone has been proven to provide high quality audio coverage over a large area; and it does it at an affordable price.
30 ft, 360 degree pick up range
- Captures questions from the class as well as the lecturer as he moves around the room.
- Captures all the talkers around a large conferencing table.
Easy to use
- All the intelligence is inside the microphone.
- Just connect it to the computer by 3.5mm mini-stereo or USB and select the Voice
- Tracker I as the default microphone.
- No set up of multiple beams or multiple microphones/mixers is required
Reliable
- More than 18,000 sold.
- Less than ½ of 1 percent failure rate
- Most are still running, some as long as 15 years.
Expandable
- For greater coverage, Voice Trackers can be combined using 3.5mmYs or simple mixers.
- Wall powered
- No batteries that can die out, ruining recording
Flexible mounting alternatives

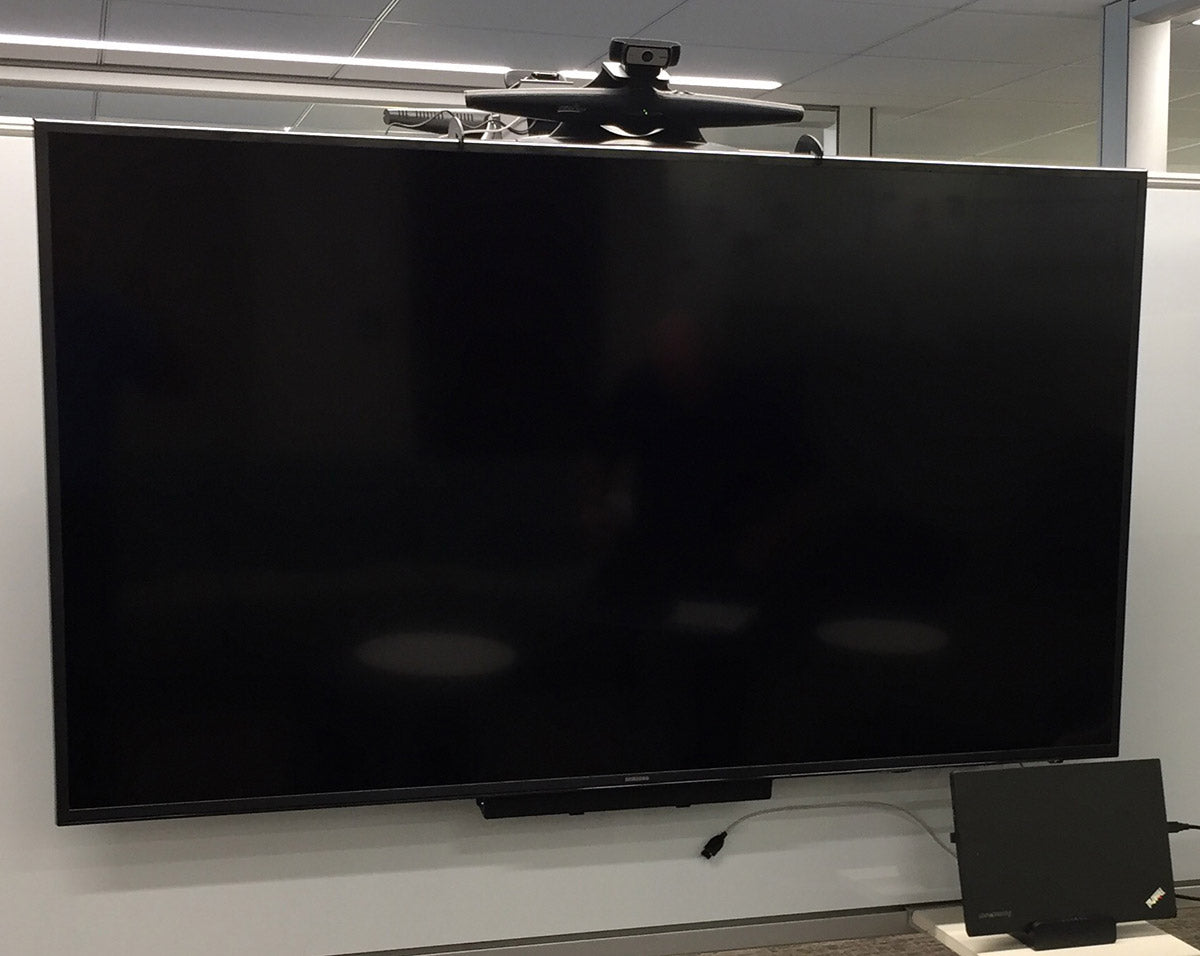

- Built in ceiling/wall mount Or can sit on a table.
Voice Tracker™ I Specifications
Range: 30+ feet for meeting recording (depends on acoustic characteristics of the room.)
Analog Output: (6ft male/male audio cable included)
Mic level: 3.5mm ministereo jack; Same signal on tip & ring; 500 ohm output impedance
Frequency Response: 100Hz to 11,250 Hz
Physical Dimensions:
-
Length: 18″
-
Height: 2.5″
-
Weight: 2.5lbs
Power Equipment: (wall-powered converter included)
- 6V DC
- 400 ma
- Center Pin Positive
Voice Tracker™ I Features
- Automatic electronic steering of “listening beam” to talker location
- Selectable steering limits (90 degrees and 180 degrees) for speech recognition and
- Meeting recording modes
- Selectable LDS™ to reduce annoying interference of additional talkers during speech recognition or feedback during teleconferencing
- Two stage noise reduction (spatial filtering and noise reduction processing)
- 8 element, 18 inch long array for maximum range
- 5 element “in range” light to indicate location of chosen talker and sufficiency of signal
- Microphone tilt capability to facilitate desktop, monitor top, ceiling, or wall mounting
- Weight: 1.5 pounds(excluding wall power supply)
- Power: converter from 120V AC to 6V DC included
Compatible with a variety of operating systems including:
- Microsoft: Windows 3.x, Windows 95, Windows 98, Windows NT, Windows 2000, Windows ME, Windows XP, Windows Vista, Windows 7, Windows 10
- Apple/Macintosh : Mac OS, Mac OS X
- Linux
View Voice Tracker™ Instructions PDF
