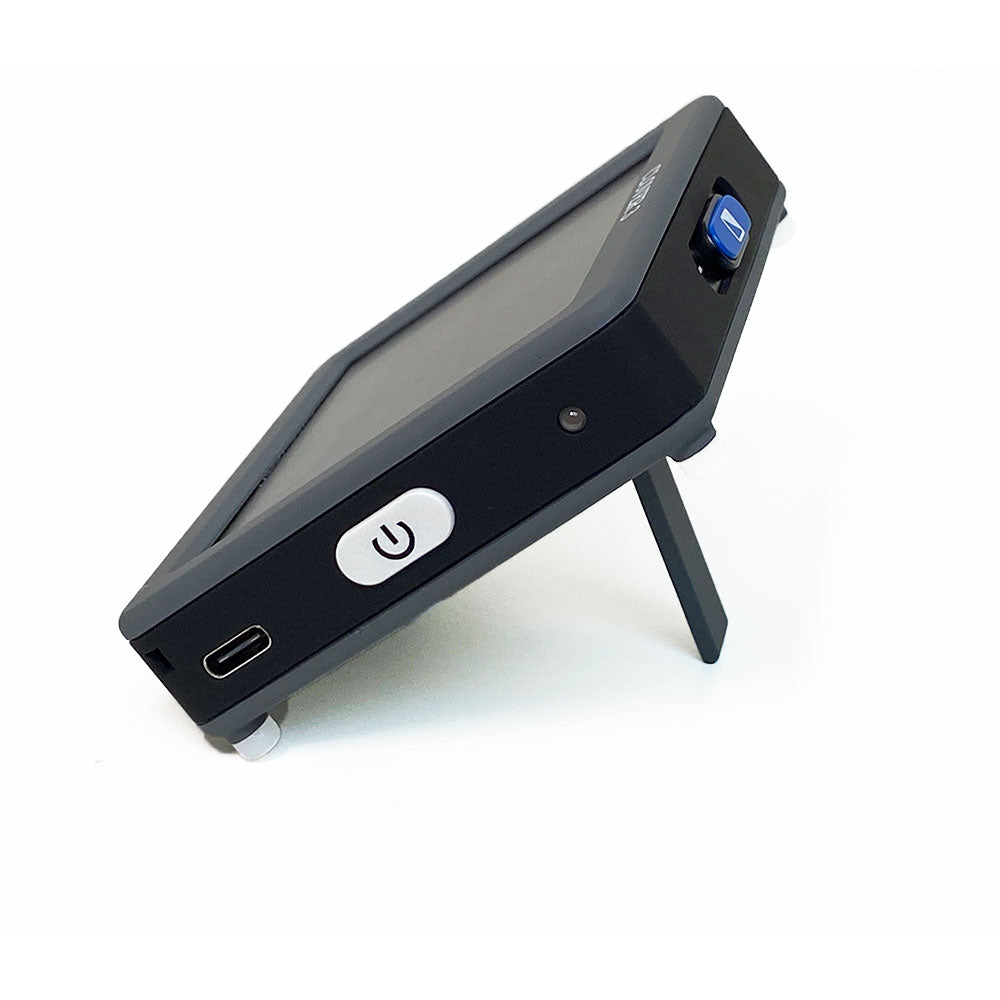

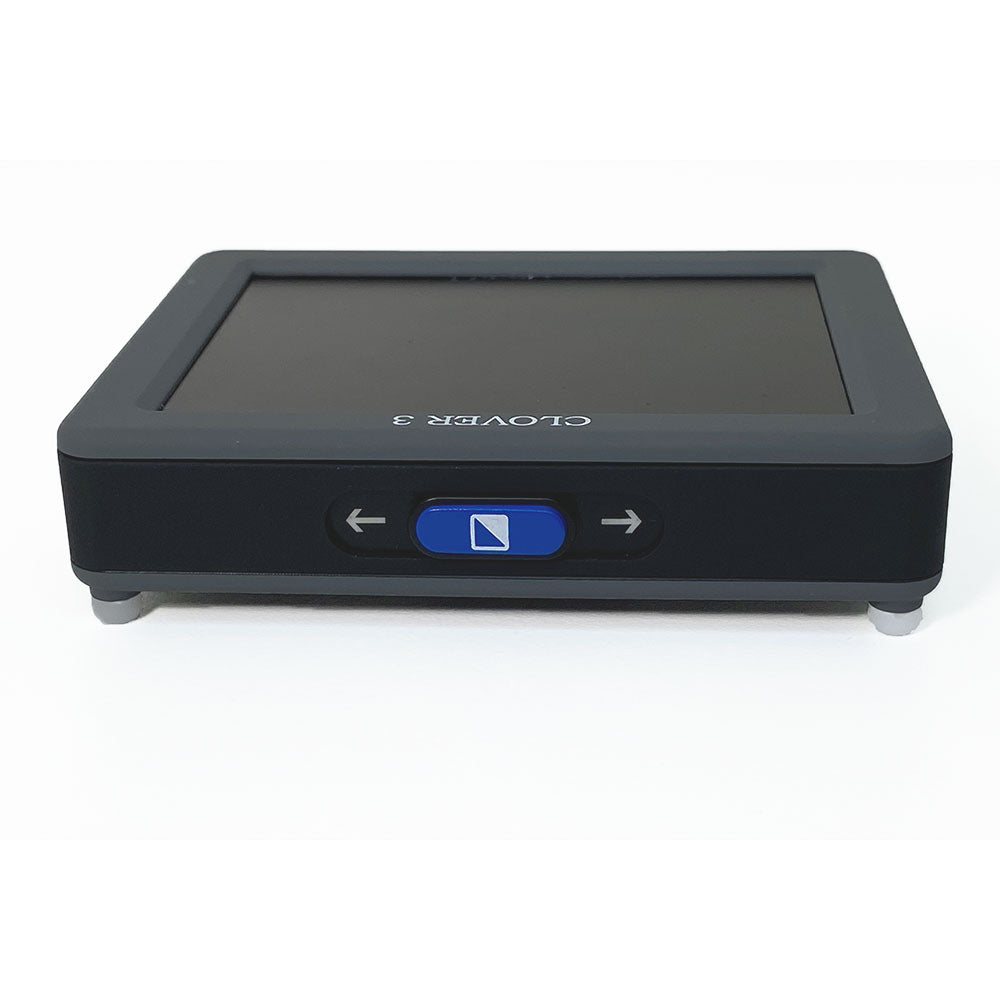

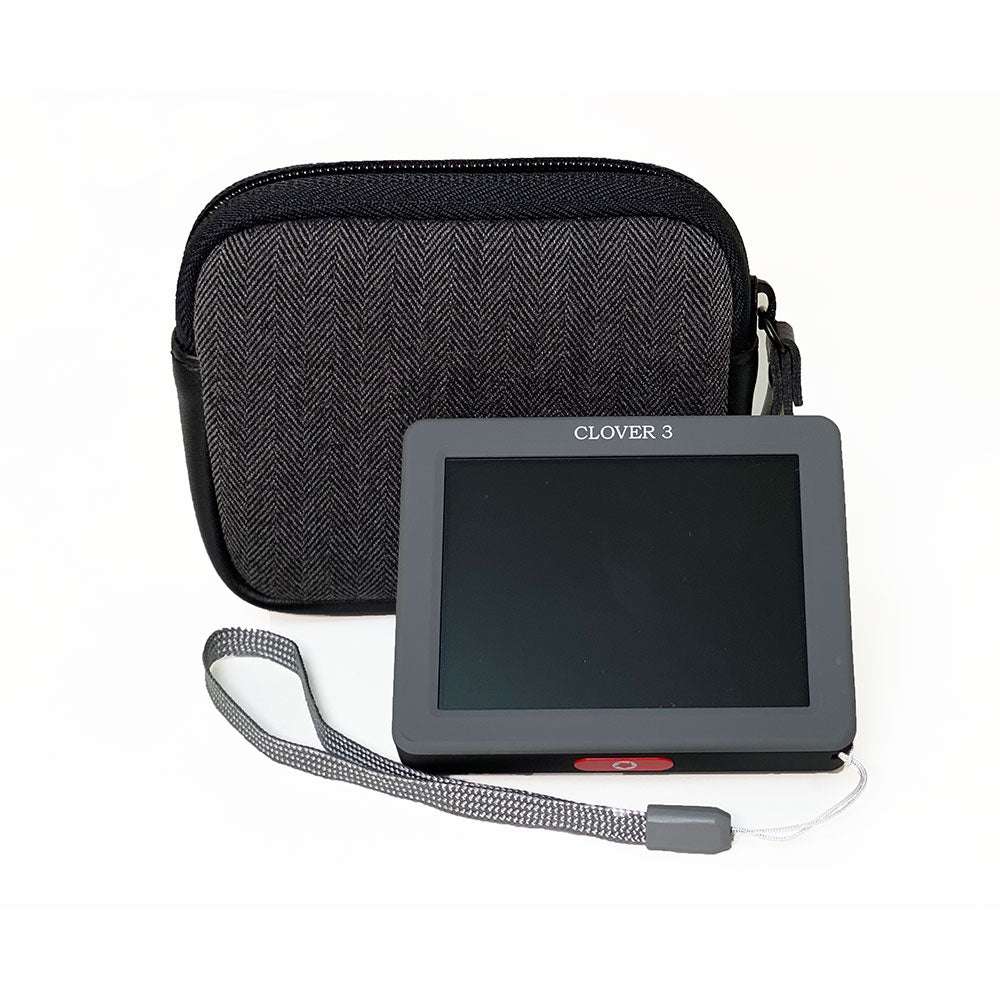

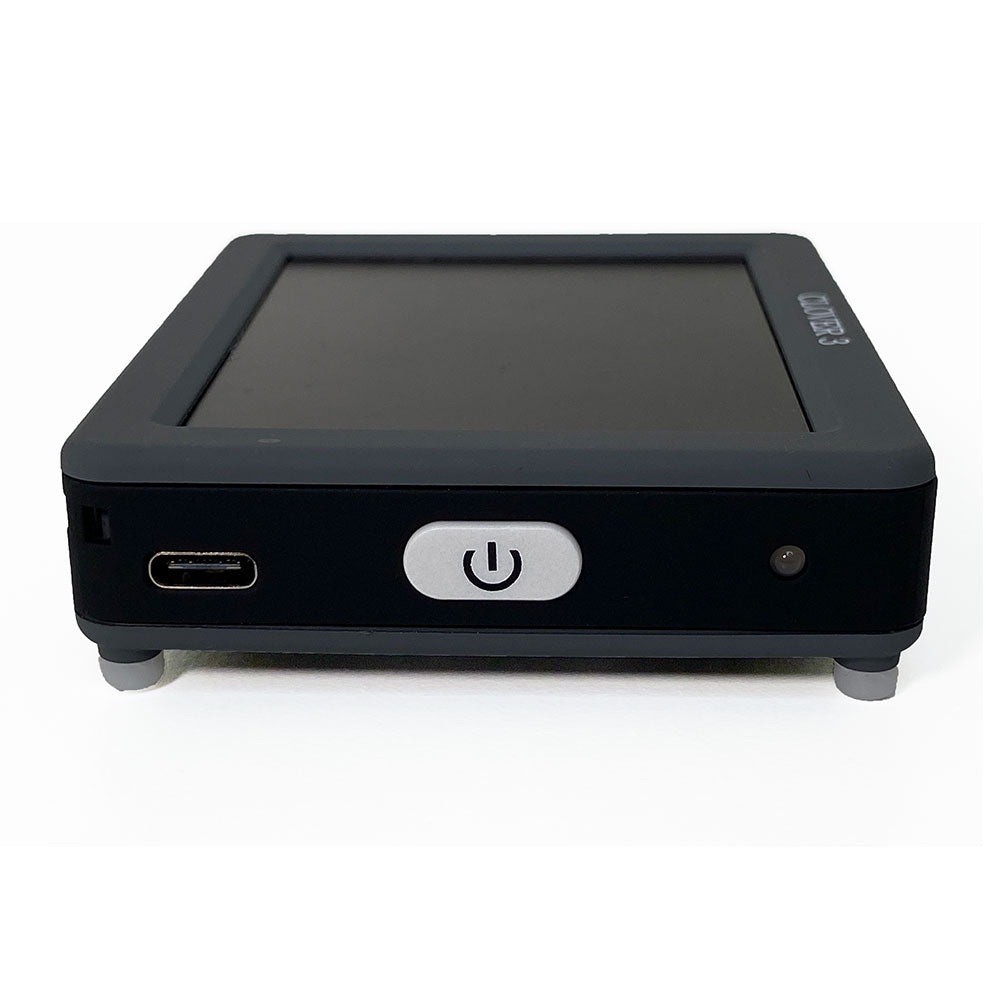

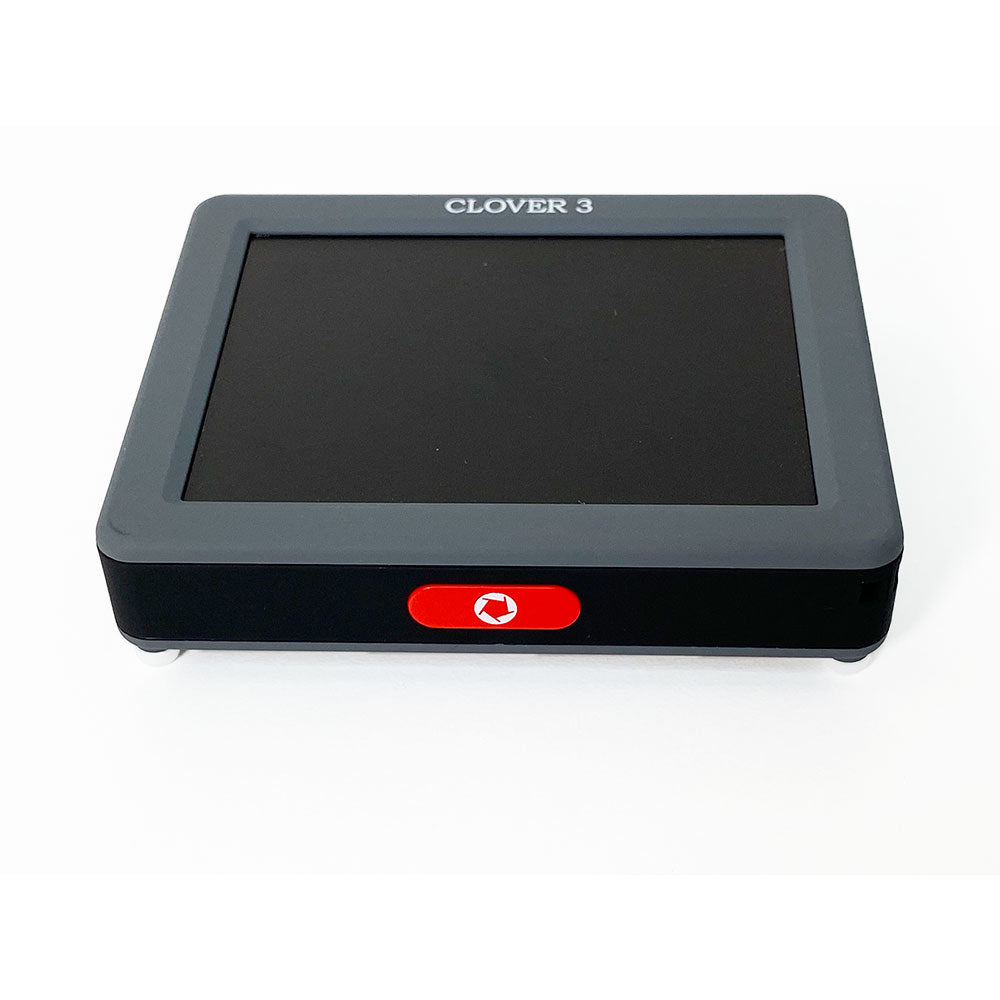

Clover 3 Small travel-sized video magnifier

1. Display: 3.5″ TFT screen
2. Camera: High- quality near view Camera
3. Magnification: 3.8x-16x
4. Color Mode: 10 high-contrast color modes
5. Battery: Rechargeable Li battery, 3.3 hours continuous usage
6. Power Adapter: Micro USB EU/AU/US/UK/JP; Input: 110-240V; Output: 5V/1A
7. Beep Feedback: On/Off
8. Brightness: Adjustable
9. LED lighting: On/Off
10. Freeze function: Smart navigation for locked magnified image
11. Auto memory system (saving last using setting including viewing mode, magnification, beep etc.)
12. Auto power off function after 3 minutes idle

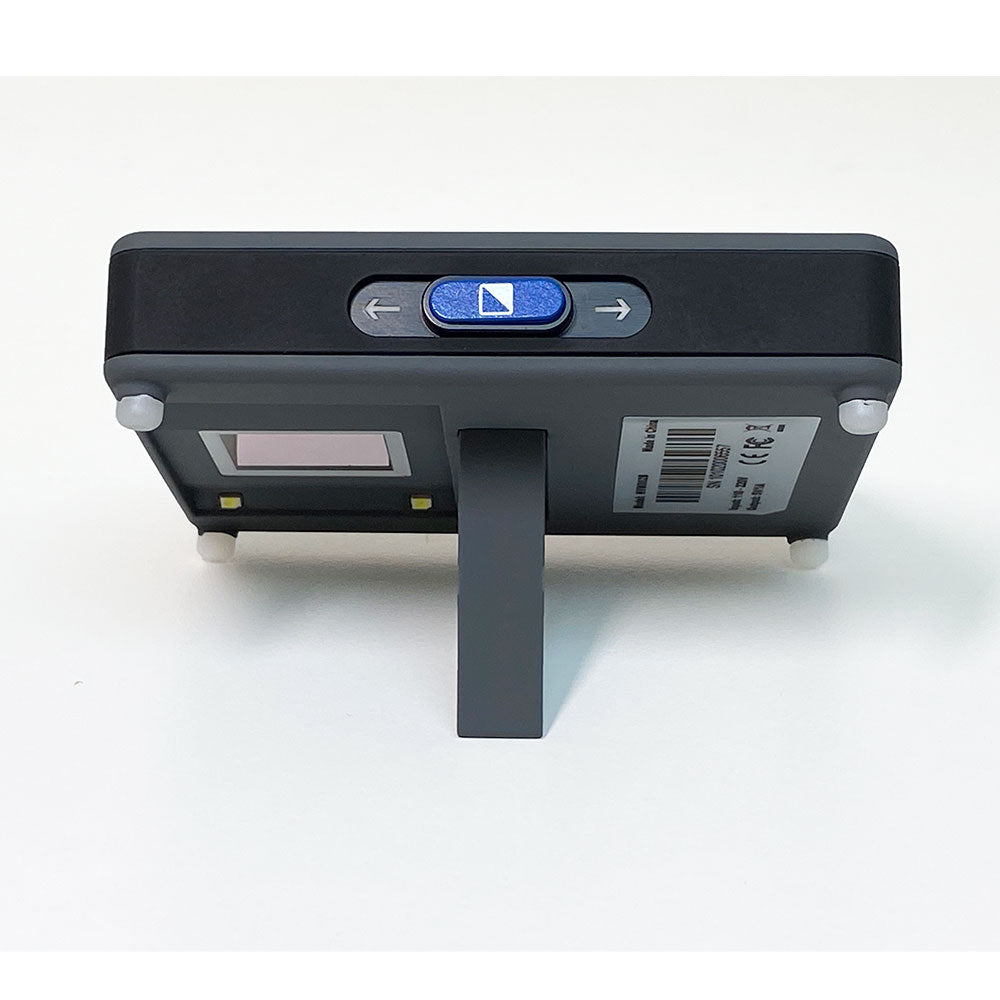

13. Built-in stand for reading and writing
14. Status indication (battery bar, current mode)Certificates: CE; FCC; RoHS
15. Dimension: 3.5″x*2.8″x0.7″
16. Weight: 3.5 ounces

• User Guide

How long will the battery last after a full charge?

The battery will last 3 hours on a full charge.

How much does the Clover 3 weigh?

The Clover 4 weighs 3.5 oz. (including battery)

Can I replace the batteries myself?

What is the magnification size of the Clover 3?

The Clover 3 will magnify 3.8x – 16x.

Can I write under the Clover 3?

Yes, open the writing stand and you can write under the camera.

How to I turn on/off the beep sound?

Press and hold the FREEZE FRAME button for 3 seconds to turn on/off the beep.

How do I adjust the screen brightness?

To increase brightness: Press the POWER button and slide the ZOOM/MODE button to the right.
To decrease brightness: Press the POWER button and slide the ZOOM/MODE button to the left.

How do I turn the LED lights off when there is too much glare?

Press the POWER button and FREEZE button at the same time to turn on/off the LED lighting.

Do I have the change my settings before each use?

No, the unit will automatically memorize the most recent settings such as color mode, magnification etc. and will apply these settings when you turn the device on again.

Troubleshooting:

The unit does not turn on

• Connect to the power adapter
• Charge the battery
• Reinstall the battery

What do I do if the image doesn’t change?

Most likely, the you have tapped the “Freeze Frame” mode. Tap the red button on the top right side of the device to exit “Freeze Frame” mode.

How will I know when the battery is fully charged?

When the unit is on, tap the power button check the battery level.

Why does my device keep turning off?

– Your battery might have insufficient charge
– There is a power-saving mode that will turn the device off if there is no movement in 3 minutes time.

How do I perform a hardware reset?

When the unit is hung or can’t be shut down normally, press the POWER & FREEZE & ZOOM buttons at the same time to trigger the hardware reset.
