AT Ultra Light HD Switch

AT Ultra Light HD Switch in Canada.

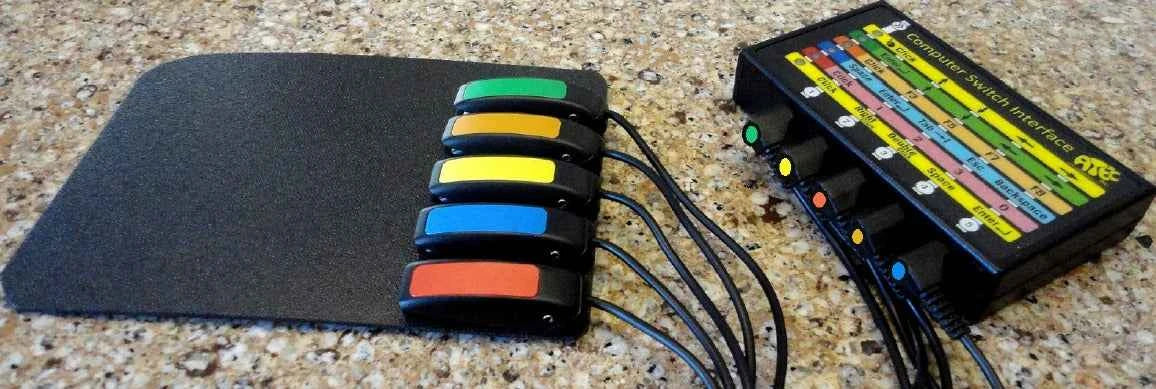

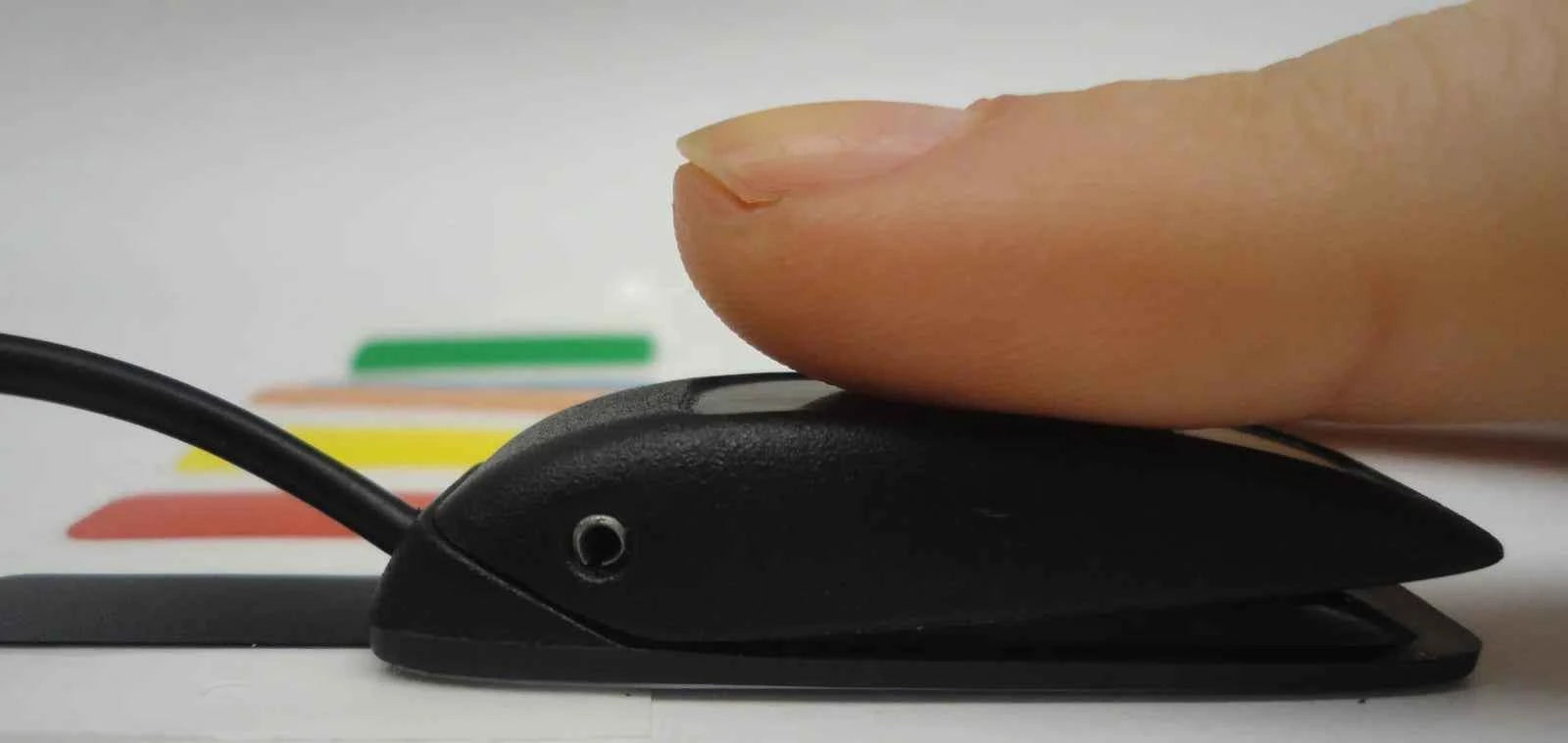

The Ultra Light switch is a very small (smaller than your thumb) switch that requires very little pressure and gives great tactile and audible feedback. It is easily mountable within reach of a finger, and its small size and low price let you mount several switches within easy reach of one or more fingers.

• Light activation force with Tactile and audible feedback
•  Reusable sticky base that is easily cleaned and doesn’t leave a film

•  Six colorful, cleanable, and durable switch tops – just peel and place

•  Low profile makes it ideal for people with limited finger movement
•  Ergonomic design allows for comfortable activation while in your
  hand, mounted on a table or on a positioning arm

• Rugged design that can withstand the heaviest hitter for a lifetime of
  activations

• Two screw mounting for ultra secure placement

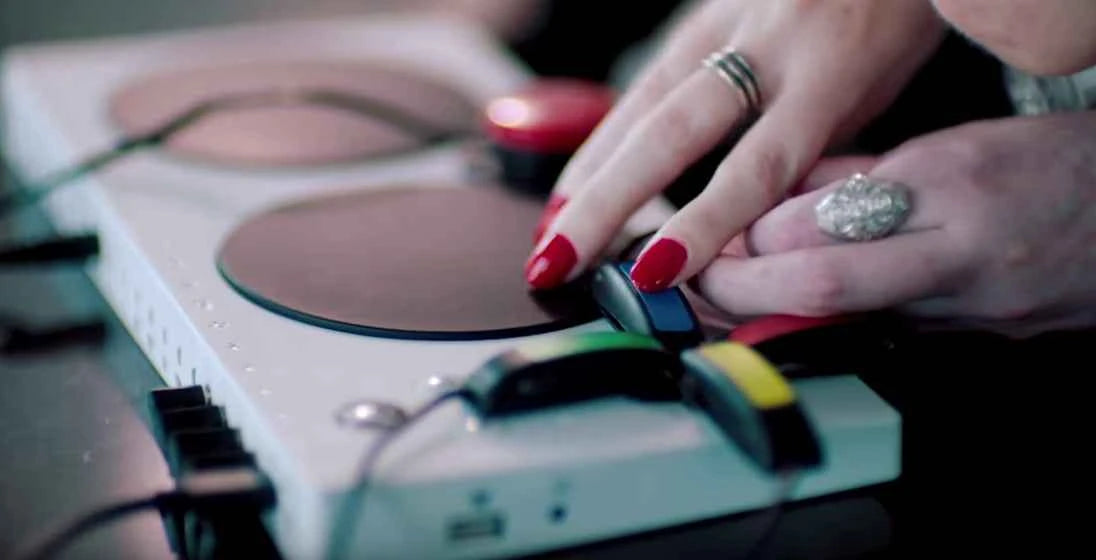

• 1/8 inch (3.5mm) Right angle mono plug standard for use with Xbox
  Adaptive Controller , PC access, AAC, ECU, adapted Toys, etc.

• 6 foot Ultra flexible cable for those challenging switch placements

• Affordable!

Specifications

• Ultra LighttmHD Finger Switch Connector 1/8 inch (3.5mm)

• Right angle mono plug Ultra Flexible Cable - Length 6 foot (~1.8 meters)

• Size: 1.8” x 0.65”x 0.44” (46 x 16.5 x 11mm)

• Activation Force

  • Front of the switch is .702 ounces (20g )

  • Back of the switch 2.5 ounces (70g)

• (With a finger resting on top of the switch, close to 0 grams can be achieved)

• Travel before Activation (in/cm) .09 inches (2.3mm)

• Electrical Rating AC 125V 1A

• Contact Rating 0.1A @ 48VDC; 0.1A@125VAC, Electrical life cycles 1,000,000

• Mechanical life cycles min 1,000,000

• Insulation Resistance > 100MΩ DC250V

• Withstand Voltage AC250V 1 minute

• Contact Resistance < 300mΩ

• Ambient Temperature -25°C to 70°C


Mounting

• Option 1: Self stick reusable mounting pad is included. Just peel and stick to a flat/clean surface.

• Option 2: Two 4/40 screws can be used with CAUTION. Do not exceed a depth into the switch of more than 2.9mm (1.15”) or it can permanently damage the switch or keep it from moving. Spacing between mounting holes is 25mm (.98”).

Mounting - Positioning Tips and Support

Mounting options: The AT Ultra-Light HD Switches have a ultra light touch, tactile feedback, ergonomic design, and newly updated more flexible cable [Thank you for customer feedback]. Another great thing about the Ultra-Light switch is having so many mounting options. It is possible to position these on your hand, chin, finger, cheek,
chin, ankle, wrist…

Mounting using the reusable tape

The reusable tape provided on the bottom of the Ultra light works great for those
applications that only need to lightly hold position. The surface must be very smooth and
clean of any oils, dust, dirt, before placing the switch.
The reusable tape will lose its grip over time. It can be cleaned with light soap.

Mounting using more aggressive tape or Velcro

For those applications that require the switch to be moved regularly velcro is a good choice.  If your application is more permanent and requires more holding strength you can use a doubleback tape like Scotch Extreme Mounting Tape or Gorilla Double-Sided Mounting Tape, etc.…

When using any of these it is recommended that you remove the Atec label on the bottom of the switch and use a piece of tape that completely covers the bottom of the switch. This will increase your holding power. Be sure your mounting surfaces are very clean, dry, with no oils, when placing the tape or Velcro. We at Atec use a very little amount of Acetone [too much will dissolve the plastic] on a q-tip to clean the base of the switch. Acetone is a clear, colorless liquid. It is a solvent that can dissolve or break down other materials like grease. It evaporates quickly into the air. Acetone is naturally present in trees, plants, and occurs in the body.

Mounting using screws

Using Screws is the strongest mounting option available. Screws must be the correct size and length or the switch will be damaged.

1. The screw size is 4/40

2. The screw length depends on your application. But, they must only extend into the switch no more than 0.2”(5mm)

3. If you're using screws and don’t have the label on the bottom of the switch they must only extend into the switch no more than 0.16”(4.25mm).

4. You can remove the label and use it as your 1” hole spacer guide or use a ruler and mark 1”(25.4mm) center to center..

Positioning the switch when attached to a wire

A popular way to activate switches for mouse control, driving, games, drones, etc… is
with your head, face, or chin (head array, chin array, cheek switch…). Since these are
typically positioned with an Ultralight Switch attached to an aluminum wire, here are
some basics to consider:

1.  Bend or twist the WIRE using a tool as shown. Never grab the
   switch, bend, or twist it. Something will break.

2.  Be sure the wire isn’t bent sharply (more than 40% in an inch of
   wire). Or, the wire will weaken and fail prematurely.

3. These tips apply to all switches mounted to a wire.

Mounting Support

If you ordered a wearable switch from Atec and the screws fell out or the foam band has worn out you can order replacement
parts - refer to above section “Wearable Switches and replacement parts”. Or you can send the switch back to Atec Inc. (16120
Harrow Ave. North, Hugo, MN 55038) and we will replace them. If you no longer have the foam band, be sure to let us know if
it was a Thumb, Finger, Hand, Wrist, or Ankle switch.

There are always unique situations, So, if you have a switch or mounting need that you don’t have a solution for, Please email us at sales@specialneedscomputers.ca and we will come up with something together. Or simply tell us what would work best for you. Examples: “Please quote an AT Ultra Light HD with Gorilla Double-Sided Mounting Tape”, “Please quote an AT Ultra Light HD I can activate with my tongue or lip”, etc…

Note: One AT switch comes with six interchangeable color panels.
